Custom Color Rubber O Rings NBR Silicone FKM Material AS-568A Standard
Custom-colour rubber O-rings are specified by inside diameter, cross-section and tolerance, or an exact AS568 dash number. NBR, silicone and FKM are distinct material choices; select the compound for the fluid and temperature before agreeing the colour. Other materials, including EPDM, require separate application review.
SHQN accepts standard-size and custom O-ring enquiries. Include a drawing or exact size reference, target hardness, quantity and colour sample. A custom colour helps visual identification but does not establish the polymer, hardness or fluid compatibility.
| Material: |
NBR, silicone or FKM by selected compound; other polymer enquiries reviewed separately. |
| Hardness |
Specify the target Shore A hardness and tolerance for the selected NBR, silicone or FKM compound. |
| Mode of Production |
Molding method selected for the compound and drawing; joined extruded-cord loops require a separate joint specification. |
| Production Capabilities |
Confirm tooling, process and inspection requirements for the requested ring size and compound. |
| Size/Color |
The size and color can be custom as customer’s requirements |
Application of the rubber o ring:
For equipment, pipe or hydraulic grooves, provide the fluid formulation, cleaning agents, temperature limits and static or dynamic duty. Review groove dimensions and seal squeeze with the selected compound. Water, fuels, oils and coolants do not share one universal material selection.
Custom-Colour O-Rings: Define the Size and Colour Acceptance Sample
| Order requirement |
What to specify |
| Ring dimensions |
AS568 dash number and applicable revision, or inside diameter and cross-section with tolerances. AS568 is a size reference, not material certification. |
| Material and hardness |
NBR, silicone or FKM compound designation and target Shore A hardness with tolerance. |
| Colour approval |
Physical sample or agreed colour reference, inspection lighting and acceptable batch variation. |
| Service conditions |
Fluid, temperature, exposure duration and motion; evaluate the selected coloured compound for the application. |
O-rings, square-section rings and X-rings have different cross-sections and groove requirements. Confirm the specified profile rather than substituting one for another. Specify the required cross-section on the order drawing and confirm the matching groove geometry.

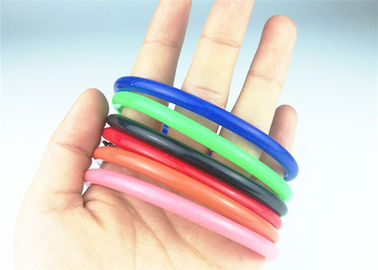

More Pictures of the rubber O rings:
Structure and sizes:
Rubber o rings samples corner view:
Other relative rubber products for oil drilling use:
Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined components to agreed specifications. Our ISO 9001 quality management supports drawing review and inspection. For coloured O-rings, agree the exact dimensions, compound, hardness tolerance and colour acceptance sample before production.
Packing and shipping:
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
The steps of the production:
