| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | FIG 1502 |
| Minimum Order Quantity: | 500 pcs |
|---|---|
| Price: | USD$0.2-USD$3 |
| Packaging Details: | Plastic bag+Carton packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 per week |

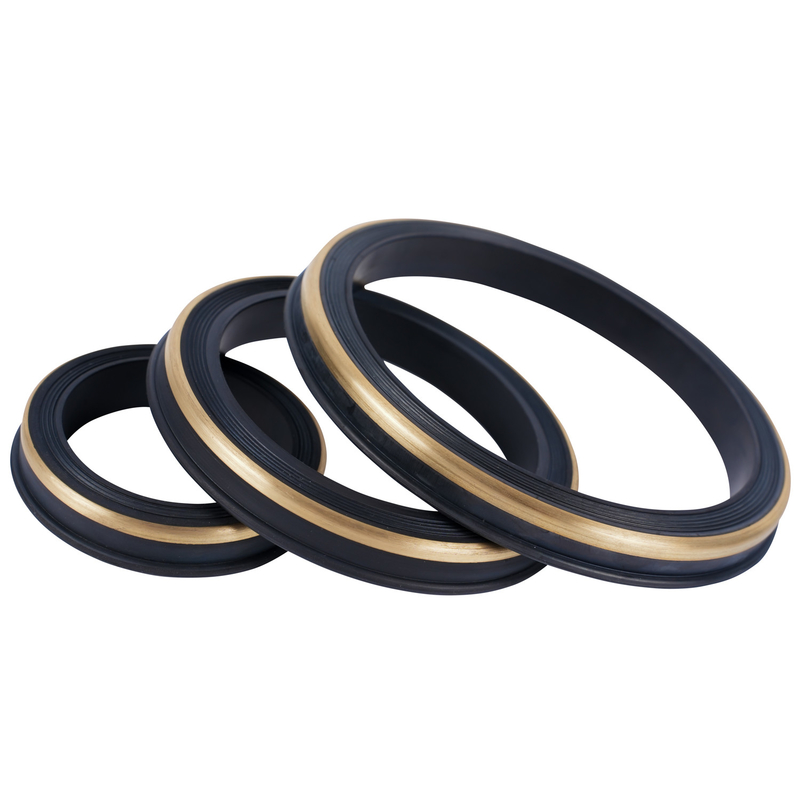

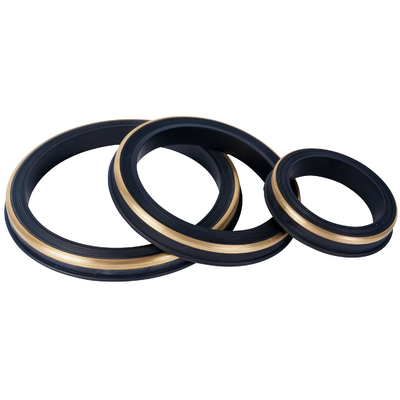

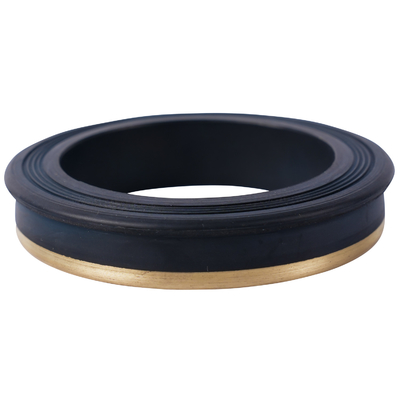

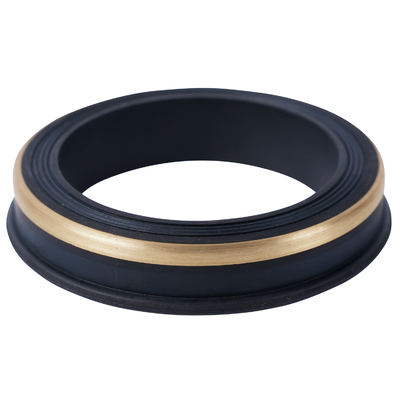

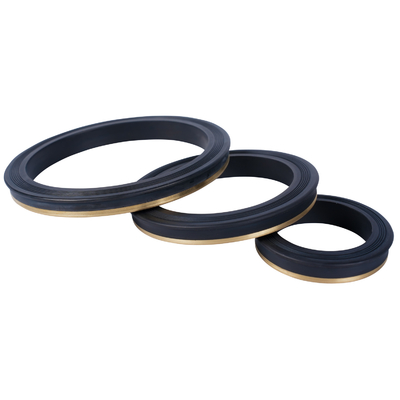

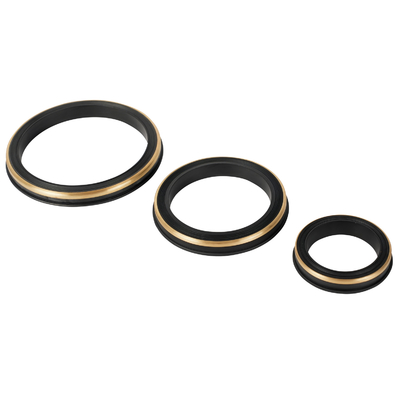

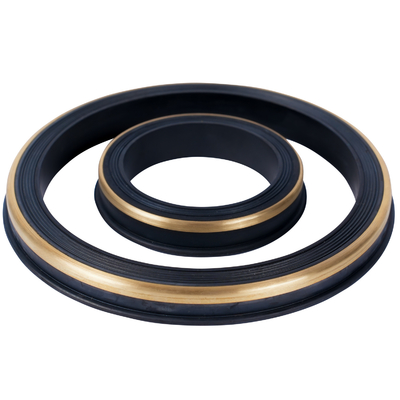

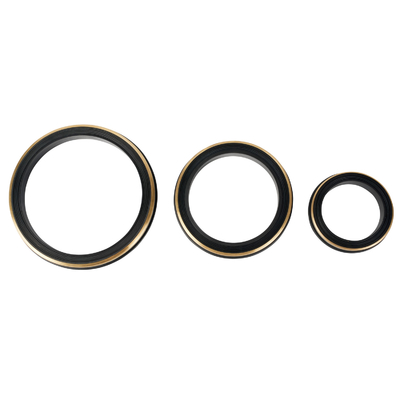

| Product Name: | 2 Inch HNBR Black Hammer Union Seal | Material: | HNBR For This Listing; Compound And Hardness Specification To Confirm |
|---|---|---|---|
| Color: | Black Or Custom Color | Type: | Rubber-only, Brass-backed Or Stainless-backed Configuration By Drawing |
| Size: | Nominal 2 In FIG 1502 Connection; Actual Seal Dimensions By Approved Drawing | Packing: | Plastic Bag And Carton Packing |
| Pressure: | By Exact FIG 1502 Union Rating And Approved Seal Design; Confirm Service Limits | Feature: | Oil Compatibility And Wear Performance By HNBR Compound And Duty |
| Application: | Replacement Lip Seal For Matched Nominal 2 In FIG 1502 Hammer Union | MOQ: | 500 Pcs |
| Delivery Time: | 7-15 Days | In Stock: | Confirm Availability For Selected Compound And Backing Configuration |
| Samples: | Available | Shipping Method: | By Express, By Air, By Sea, By Car |
| Highlight: | hammer seal union,rubber lip seal |
||
Available size : 1", 2", 3", 4" and 5"
Material: This listing focuses on a black HNBR seal for a nominal 2-inch FIG 1502 connection. Confirm the compound, hardness test scale and target against the approved specification; the original material and hardness notation is incomplete.
Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly to form the connection seal when correctly selected and assembled. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The specified sealing element may be an O-ring or a hammer union lip seal, depending on the union design and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.
Hammer union hardware forms threaded or welded pipe connections with two halves a threaded female half and a wing male half with swivel nut that fit together and seal upon turning and then hammering the nut half together with the threaded half. Shanghai Qinuo can supply you best Hammer Union seal in different figs like 602, 1002, 1502, 2002 and 2202.
![]()
![]()
![]()
![]()
![]()
![]()
Shanghai Qinuo Industry Co., Ltd was specialized in rubber and plastic field for more than 10 years.
Our company have strong technical force, advanced technical equipments, complete testing means and scientific quality management.
Our main services include develop and manufacture rubber parts and molds, plastic parts and molds.
We can also according to customers requirement to provide various kinds of mixing rubber
![]()
![]()
The 2-inch designation identifies the nominal union connection size. Confirm the measured seal outside diameter, inside diameter, lip cross-section and mating groove before ordering. The broader size list describes range references and does not make seals for different figures or nominal sizes interchangeable.
Specify whether the replacement uses rubber alone, brass backing or stainless backing, and match that arrangement to the existing union drawing. Backing material and geometry are part of the seal configuration; choose them together with the lip profile rather than using colour or nominal size as the only identification.
For oilfield maintenance procurement, provide the union maker and figure, fluid composition, operating temperature and connection rating. HNBR selection and hardness should be reviewed for that duty. Inspect the lip for cuts, deformation and contamination before installation. Pressure capability is determined by the matched union assembly and approved seal design; a generic pressure value is not a standalone seal rating.
