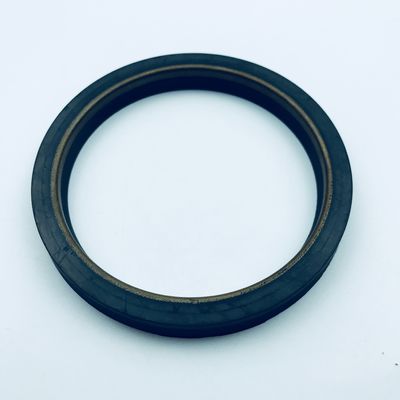

Rubber FIG 602/1002/1502 Hammer Union O Ring Seal Lip Type 2"3"4" For Oilfield

Figure 602 / 1002 / 1502 Hammer Union O-Ring or Lip Seal Selection for 2, 3 and 4-inch Connections

For hammer union replacement enquiries referencing Figures 602, 1002 and 1502, identify whether the required part is an O-ring or a lip seal. This listing focuses on resolving that profile distinction from the matching equipment drawing. The two names do not describe interchangeable parts.

Hammer union seals are components of the connection hardware. Provide the manufacturer, figure, nominal size and seal part number. For an O-ring, specify inside diameter and cross-section; for a lip ring, provide the complete profile and axial dimensions. Any metal insert or backing must correspond to the identified design.

This enquiry covers 2, 3 and 4-inch nominal union connections, with other catalogue sizes reviewed separately. Nominal connection size does not identify the actual O-ring or lip seal dimensions; confirm the required part against the drawing.

Specify the exact NBR/Buna, FKM or HNBR compound and Shore A hardness for the selected profile. Review the fluid and operating temperature. Rubber-only, brass-backed and stainless-backed configurations require separate confirmation; color and a figure number do not establish compound or construction.

Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Available for various figures and styles.

– O-Rings.

– Lip Seal Rings.

– Brass Backed Seal Rings.

– Stainless Steel Backed Seal Rings.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

When using a sample for identification, provide a cross-section photograph and measured dimensions alongside the union identity. A worn ring may not retain its original profile, so use the approved drawing for final selection. Inspect grooves and mating surfaces using the equipment procedure before replacement. Sour-gas suitability requires specific material and equipment qualification.
