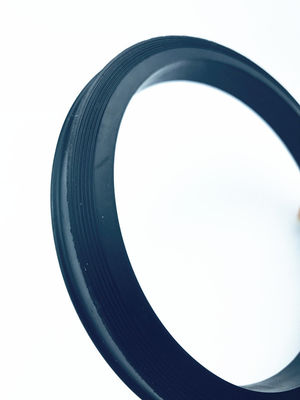

1502 hammer union seals 80 Shore A 4" hammer union seals ring

Hammer Union Seal Replacement — Mating Groove and Backing Selection
A replacement seal must match the union figure, nominal connection size and actual seal groove. Provide the hardware maker or drawing, the removed seal dimensions and the specified material so that the lip profile and any metal backing can be checked together.

Hammer union hardware and the replaceable seal are distinct parts. References to figures 602, 1002, 1502, 2002 or 2202 require figure-specific dimensional review; a shared nominal pipe size does not establish seal interchangeability.

Available size :  1", 2", 3", 4" and 5"

Material: Specify NBR, HNBR or another required compound with nominal Shore A hardness and tolerance. For a brass-backed or stainless-backed version, include backing geometry and material. Confirm the compound designation and hardness on the order drawing.

Application: Replacement seals are used within compatible union hardware in hose or pipe flow lines. Provide the fluid, temperature and pressure cycle with the groove drawing before selecting the seal and backing arrangement.

Confirm the ordered union figure, connection size and seal style:

– O-Rings.

– Lip Seal Rings.

– Brass Backed Seal Rings.

– Stainless Steel Backed Seal Rings.

Specify the seal profile and backing construction for the particular union assembly.

For a Figure 1502 enquiry, provide the exact hardware size, maker or drawing and applicable working/test requirements. The legacy 15,000 PSI working and 22,500 PSI test references are assembly requirements to verify, not a standalone rating or completed test claim for this replacement seal.

Hammer Union Seal Options — confirm figure, material and dimensions before ordering:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" hammer union lip seal ring — compound to be specified

1-1/2" hammer union lip seal ring — compound to be specified

2" hammer union lip seal ring — compound to be specified

3" hammer union lip seal ring — compound to be specified

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" brass-backed hammer union seal ring — rubber compound to be specified

3" brass-backed hammer union seal ring — rubber compound to be specified

4" brass-backed hammer union seal ring — rubber compound to be specified

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

Other relative rubber products for oil drilling use:

Shanghai Qinuo Industry Co. Ltd handles industrial rubber, plastic and machined-component enquiries. Send the drawing or sample and operating conditions for specification review.

For union seal replacements, record lip dimensions, backing thickness and fit in the mating groove. A damaged sample may be deformed; compare it with the approved hardware drawing.

For repeat orders, retain the approved union figure, seal drawing revision, compound and backing material. Confirm proposed substitutions against the complete assembly specification.

Our quality management system is ISO 9001 certified. Specify required inspection and material documentation with the enquiry; pressure testing and any regulatory conformity need order-specific evidence.

Packing and shipping:

1: Express shipment — request a quotation based on destination, package size and urgency.

2: Air shipment — specify destination airport or delivery address for quotation.

3: Sea shipment — specify destination port and shipment quantity for quotation.
