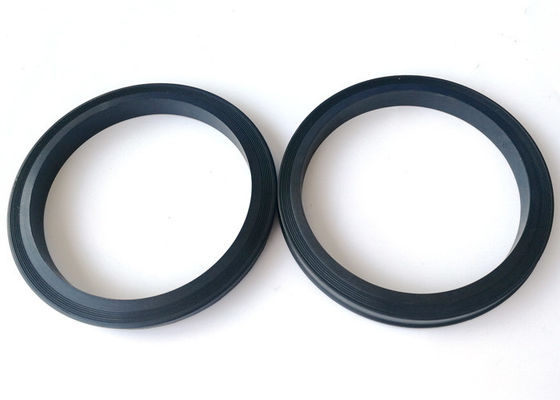

Oilfield Goods Hammer Union Seals 80 duro Nitrile Seal Rings 4"

Hammer union replacement seals should be identified from the original part drawing or equipment record before using a worn sample for comparison. This listing focuses on sample-based enquiries: provide the union identity and photographs of the complete seal profile, together with dimensions and any metal backing. A composite insert arrangement applies only where the matching design specifies it.

The seal ring is a component of the threaded or welded union hardware. Record the manufacturer, figure, nominal connection size and seal part number. Figures 602, 1002, 1502, 2002 and 2202 require separate matching review; similar appearance does not establish interchangeability.

Catalogue nominal connection sizes include 1, 2, 3, 4 and 5 inches. Confirm actual seal dimensions and availability for the identified figure. A measured worn sample may be distorted, and nominal pipe size is not the seal outside diameter.

Specify the exact NBR/Buna, FKM or HNBR compound and Shore A hardness. If the old material identity is unknown, provide service fluid and temperature details for review rather than inferring the compound from color. Rubber-only, brass-backed and stainless-backed constructions require separate confirmation.

Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

Available for various figures and styles.

– O-Rings.

– Lip Seal Rings.

– Brass Backed Seal Rings.

– Stainless Steel Backed Seal Rings.

Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

Use the approved drawing and compound specification for final sample or production approval. Agree the replacement supply scope, quantities and required inspection documentation before ordering. Inspect the equipment groove and mating surfaces using its maintenance procedure. Sour-gas suitability requires specific material and equipment qualification.

Hammer union configurations for enquiry; confirm exact part availability:

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED

1-1/2" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED

2" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED

3" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

Other related rubber products for oil drilling use:

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, product-specific RoHS documentation reviewed when required, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Packing and shipping:

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

The steps of the production:
