| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO9001 |
| Model Number: | 4'' |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.2-0.6 |
| Packaging Details: | Caeron packing |
| Delivery Time: | 15days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 50000pcs per week |
| Material: | NBR/Buna, FKM Or HNBR; Exact Compound And Hardness Per Order | Avilable Size: | Catalogue Nominal Sizes 1, 2, 3, 4 And 5 Inches; Fit Per Drawing |
|---|---|---|---|
| Pressure: | Per Complete Rated Union Assembly And Service Conditions | Color: | Black Or Customized Color |
| Nearest Port: | Shanghai | MOQ: | 1000pcs |
| Types: | Lip Ring, O-ring Or Specified Metal-backed Construction Per Drawing | ||
| Highlight: | hammer seal union,rubber lip seal |
||

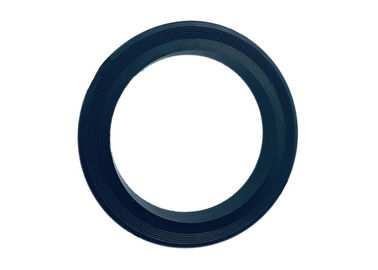

A hammer union uses matching metal connection components and a seal construction defined by its design. This listing focuses on selecting among lip rings, O-rings and metal-backed configurations using an identified seal part number. A composite insert arrangement is specific to the matching equipment rather than a universal construction.
Hammer union seals are replacement sealing components, while threaded or welded connections and tightening nuts form the union hardware. Identify the manufacturer, figure, nominal size and drawing before selecting a ring. Figure references such as 602, 1002, 1502, 2002 and 2202 do not establish interchangeability.
Catalogue nominal sizes include 1, 2, 3, 4 and 5 inches; confirm availability and actual seal dimensions for the required figure and manufacturer. Nominal connection size is not the seal outside diameter.
Specify the exact NBR/Buna, FKM or HNBR compound and Shore A hardness. Rubber-only, brass-backed and stainless-backed constructions require separate confirmation against the approved drawing. Review fluid composition and temperature with the selected compound; color alone does not identify the material.
| Available size: | 1" 2" 3" 4" 5" |
| Available Material |
Exact NBR/Buna, FKM or HNBR compound and hardness per order |
| Hammer union seals pressure |
Operating and test pressure limits apply to the complete rated union assembly under specified service conditions; no standalone seal rating or universal test pressure is established here. |
Application: Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
![]()
Available for various figures and styles.
– O-Rings.
– Lip Seal Rings.
– Brass Backed Seal Rings.
– Stainless Steel Backed Seal Rings.
![]()
Shanghai Qinuo Industry produced a full line of Hammer Union Seals.
For Figure 1502 or another identified union, retain the approved seal profile, compound and backing specification on the parts list. Sour-gas suitability requires material and equipment-specific qualification. Inspect mating surfaces and grooves using the equipment maintenance procedure before replacement.
Hammer union seal configurations for enquiry:
1" HAMMER UNION LIP SEAL RING, BUNA
1-1/2" HAMMER UNION LIP SEAL RING, BUNA
2" HAMMER UNION LIP SEAL RING, BUNA
3" HAMMER UNION LIP SEAL RING, BUNA
1" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED
1-1/2" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED
2" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED
3" HAMMER UNION LIP SEAL RING, MATERIAL TO BE SPECIFIED
2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
2" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING
3" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING
4" HAMMER UNION SEAL RING, MATERIAL TO BE SPECIFIED, W/ BRASS BACKING
2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
![]()
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, product-specific RoHS documentation reviewed when required, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
![]()
Packing and shipping:
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
![]()
Welcome to contact us for more information.
