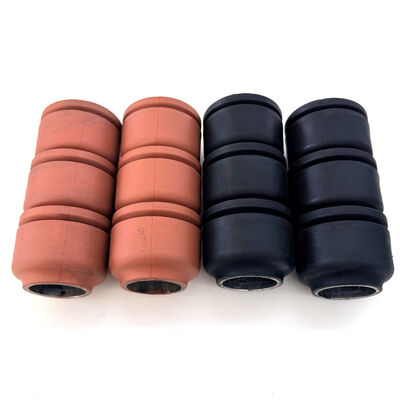

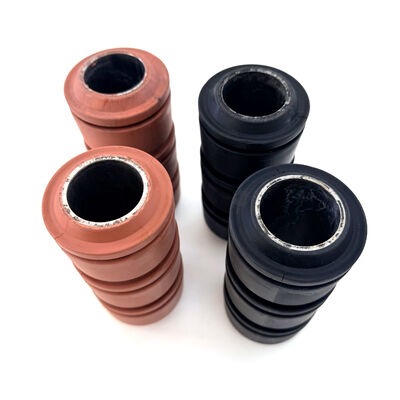

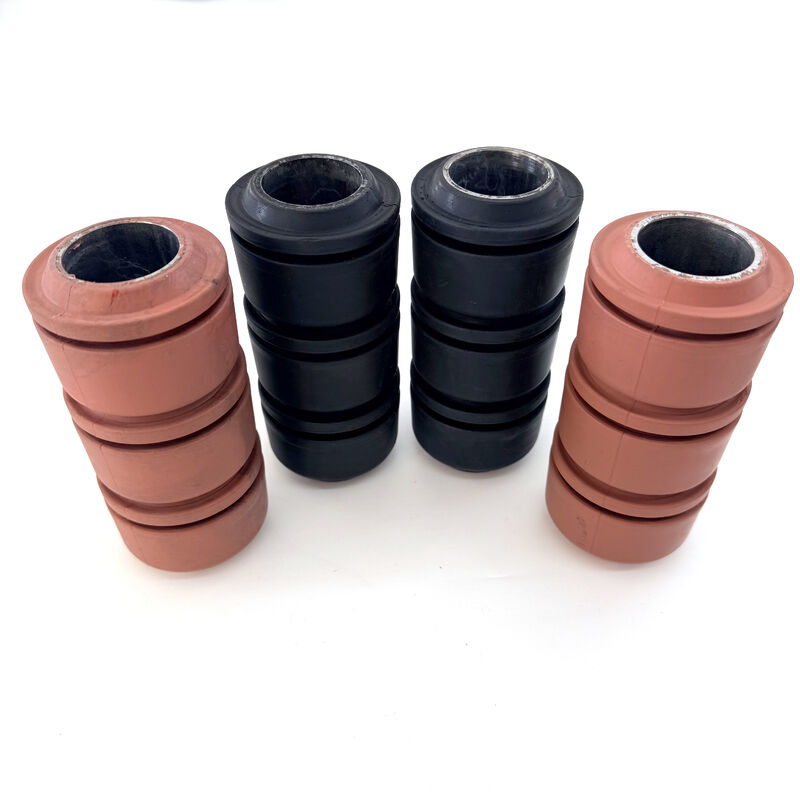

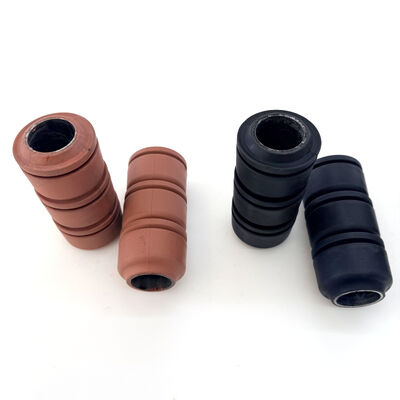

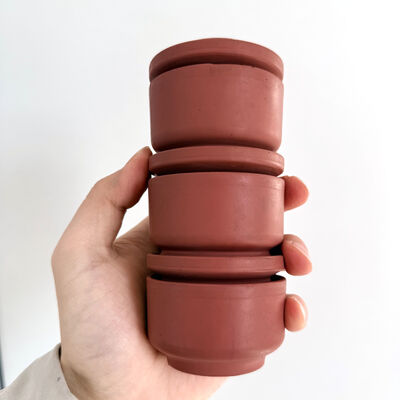

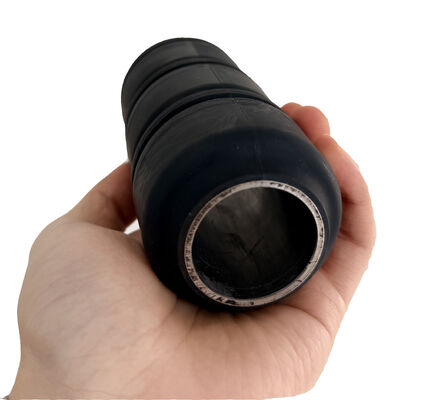

2 1/2 Inch RTL Heavy Load Swab Cup with Reinforced Thick Lip for Deep Wellbore Services

Product Introduction

This 2-1/2 inch RTL swab cup listing covers a rubber-and-metal replacement configuration for well service. The existing specification lists NBR with an 80-90 Shore A range. Confirm the required grade, profile and mandrel dimensions for the order; hardness alone does not establish load capacity. For deep-well maintenance, include the fluid, temperature, bore condition and observed wear with the replacement request.

Technical Specifications

	Material:	High-Abrasion Nitrile (NBR)
	Size:	2 1/2 Inch
	Style:	RTL
	Hardness:	80 to 90 Shore A

Key Features and Benefits

1. Profile Identification: Confirm the lip thickness, cup dimensions and core configuration from a drawing or unworn sample. The RTL designation alone does not confirm a heavy-load rating.

2. Tubing Condition: Record scale, corrosion, pitting and restrictions when requesting a replacement. Confirm the cup fit for the actual tubing internal diameter.

3. Wear Review: Provide photographs of the worn sealing edge and service history. Confirm the compound and operating conditions rather than inferring comparative life from the material name.

4. Load Configuration: Specify the planned fluid load, mandrel and cup arrangement. The pressure and lifting capability of the complete assembly require equipment-specific confirmation.

5. Damage Inspection: Inspect for tearing, loose rubber and separation at the core. Follow the equipment replacement procedure where scale or restrictions are present.

Why Partner With Our Engineering Team?

Frequently Asked Questions

Question: Can the RTL swab cup be used in new tubing?
Answer: Confirm the actual tubing bore, cup dimensions and load configuration for new tubing. A nominal size reference does not establish fit in every tubing grade or wall thickness.

Question: Does this cup require a specific type of swab mandrel?
Answer: Confirm the sleeve bore, mandrel shoulder, cup height and retention arrangement from the drawing or sample. Nominal 2.5 inch identity alone does not establish mandrel compatibility.

Question: How does the RTL handle sand or solids?
Answer: Confirm suitability for the actual solids concentration and particle size. Monitor wear; no comparative abrasion performance is established by the style name alone.

Question: What is the benefit of the NBR material used in this cup?
Answer: NBR can be evaluated for oil-contact service, with the compound selected for the fluid and wear conditions. Confirm hardness, temperature limits and inspection requirements for the ordered cup.
