9 Inch Drill Pipe Rubber Wiper for Oilfield Drilling Operations

Product Overview

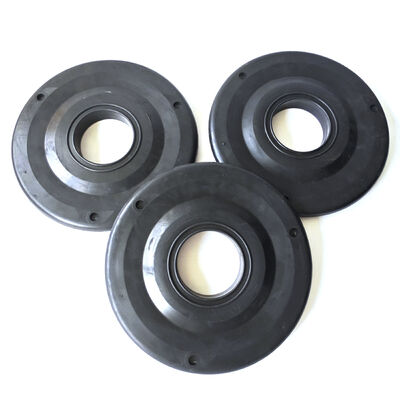

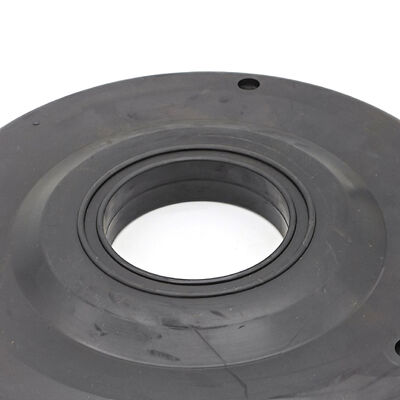

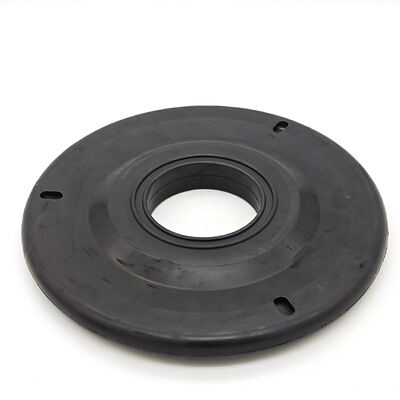

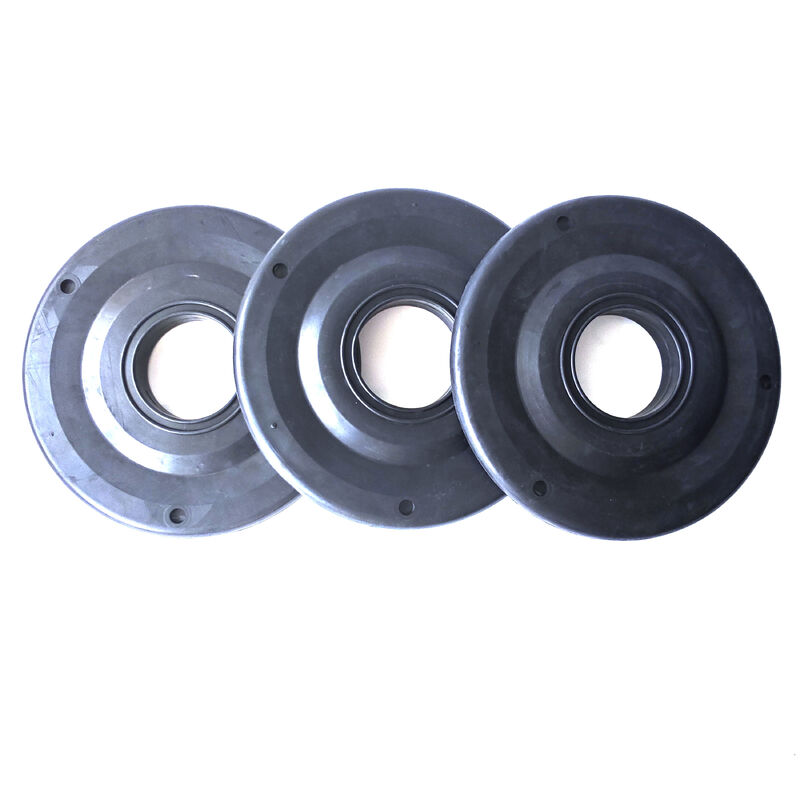

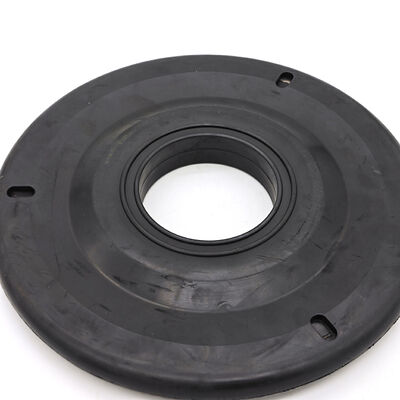

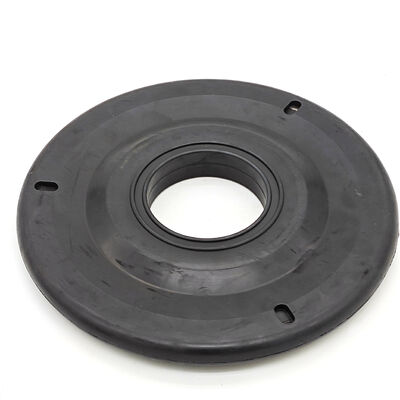

Our Premium 9-inch NBR Rubber Wiper is engineered specifically for the demanding environments of casing and tubing operations. Manufactured from high-grade Nitrile Butadiene Rubber (NBR), this pipe wiper is used to wipe fluid from the tubular exterior during pulling. Confirm pipe-body diameter, tool-joint passage, center opening and mounting support before ordering. It is a wiping component, not a well-pressure containment seal.

As a specialized oilfield seal manufacturer, we review the selected compound, wiping interference and support configuration for the actual fluid and tubular movement.

Key feature and benefits

• High-Grade NBR Compound: Superior resistance to petroleum-based oils, crude, and hydraulic fluids.

• Precision Stripping Action: Designed to fit snugly around casing and tubing, with the center opening and wiping interference selected for the actual pipe diameter.

• Reinforced Structural Integrity: Confirm whether the supplied configuration has internal reinforcement or uses an external support frame; include mounting dimensions and pulling conditions.

• Mounting Compatibility: Nominal 9-inch (228.6 mm) outside size does not establish fit. Confirm measured OD, thickness, support frame and mounting interface.

• Eco-Friendly Operation: Can assist fluid collection when used with the rig handling system; wiping alone does not establish zero-discharge compliance.

•
•
•

Technical Specifications

Applications

The 9" Rubber Pipe Wiper is widely used in both onshore and offshore drilling environments, including:

• Drilling Rigs: Cleaning drill strings during tripping operations.

• Workover Units: Managing fluids during well maintenance and completion.

• Casing Operations: Wiping casing walls to prevent fluid migration.

• Environmental Protection: Use with the rig fluid-collection arrangement and site handling procedure.

•
•
•

Why choose our rubber wiper?

As a specialized sealing solution manufacturer, we understand the harsh conditions of the oil patch. Our products are:

1. Chemical Resistant: Review actual WBM, OBM, oil, acid concentration and cleaning exposure for the selected compound.

2. Customizable: Specify pipe and tool-joint dimensions, support interface, pulling speed and fluid exposure for compound and profile review.

3. Quality Assured: Every 9 inch mud wiper is supplied to agreed inspection requirements under our ISO 9001 quality management system. Request specific tensile or immersion data for the selected compound where required.

4. Manufacturer Direct: Confirm configuration, quantity, inspection documentation and delivery date with the quotation.

5.
6.
7.

Pipe and Support Dimensions for a Replacement Wiper

Provide pipe-body OD, largest tool-joint OD, existing opening, wiper OD and thickness, plus support-frame or mounting dimensions. Include a drawing revision or photographs of the removed part. Specify whether reinforcement is internal to the rubber or part of the external support. The center opening is selected for wiping contact and tool-joint passage; nominal nine-inch size alone does not define this fit.
