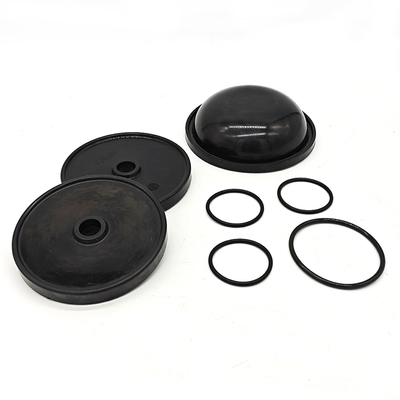

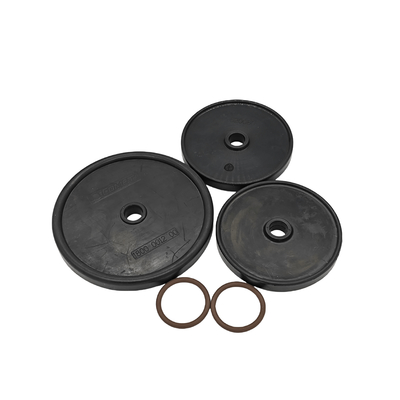

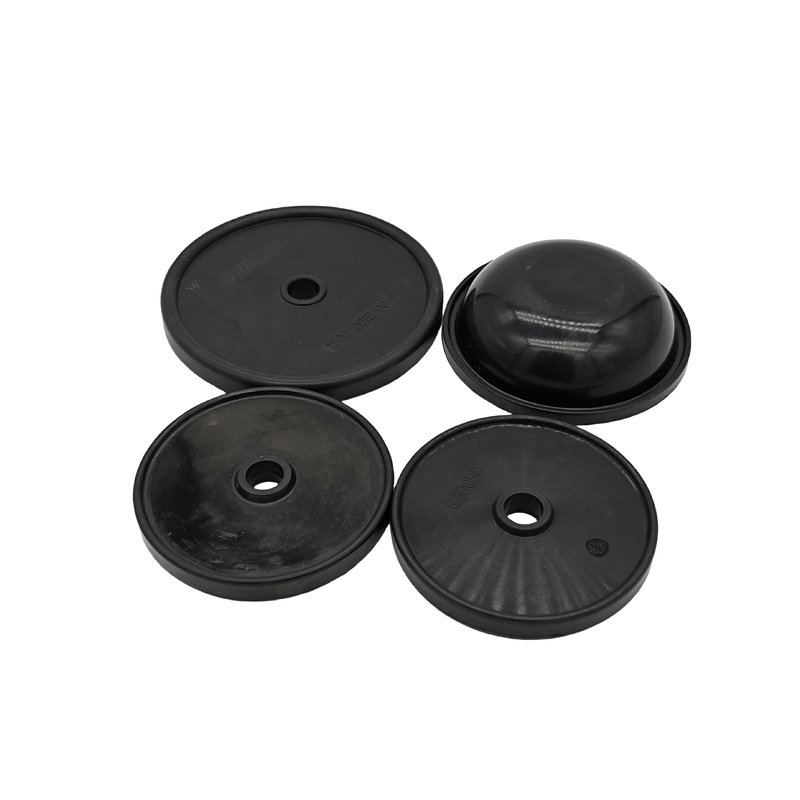

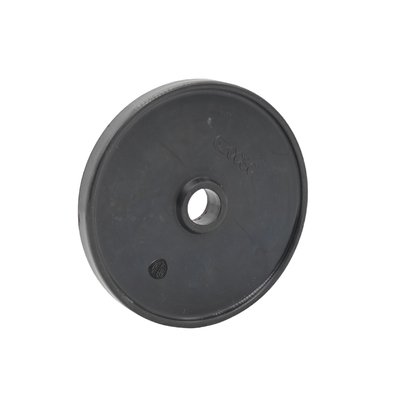

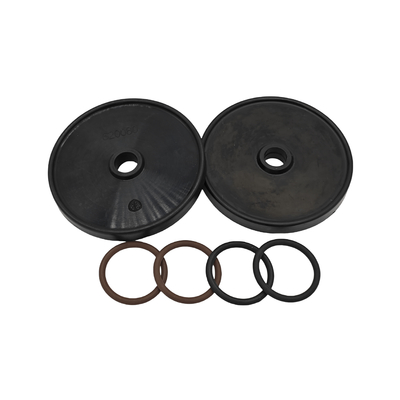

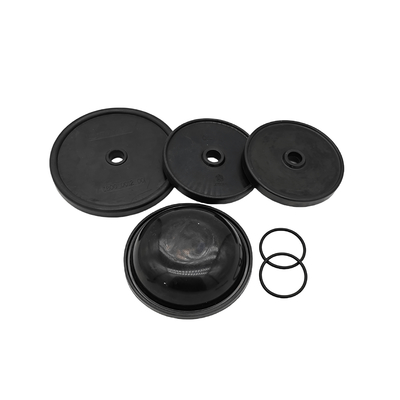

AR30 and AR40 Diaphragm Repair Kit Ordering
For an AR30 or AR40 repair kit, identify the complete pump model and revision, then list each required diaphragm reference and quantity. Confirm AR30 and AR40 contents separately against the equipment parts list; the model names alone do not establish interchangeability. Specify whether the order includes only membranes or additional gaskets, seals and attachment components.
Provide a drawing or sample for the sealing rim, thickness and center attachment, plus the pumped liquid, temperature, stroke and operating cycle. Select the NBR or FKM compound for those conditions and agree sample fit and assembly checks before production. The references below support individual part identification and are not a confirmed kit bill of materials. If an accumulator separator is required, provide its separate assembly specification.
The membrane (or accumulator diaphragm, pump diaphragm) is a flexible isolation component, usually made of rubber (such as NBR, FKM) selected for the operating medium and service conditions. A pump diaphragm flexes within its matching pump chamber, while an accumulator diaphragm separates the working fluid and gas in a compatible accumulator. Confirm the required component design rather than treating these applications as interchangeable.
| 2240080 |
50-100-22 |
| 1040081 |
550190 |
| 202001(IP) |
904009 |
| 180012 |
550080 |
| 180034 |
904008 |
Company Introduction
Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way®" and "SHQN®".
Rubber Workshop
Different kinds of machines can fulfilled different requirement.
Equip with advanced machinery and tools to handle various stages of rubber production, from mixing and extrusion to molding and vulcanization.
Packaging Display
Our Packaging Department is dedicated to delivering professional, efficient, and environmentally responsible packaging services
Inspection and acceptance requirements can be agreed for the supplied diaphragm drawing, material and application.
