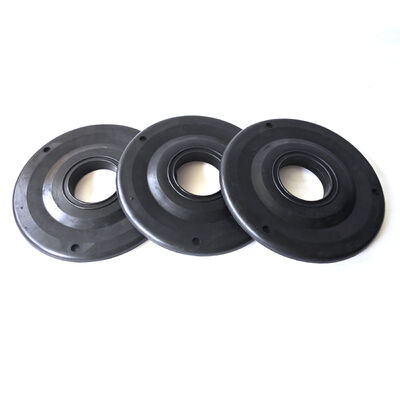

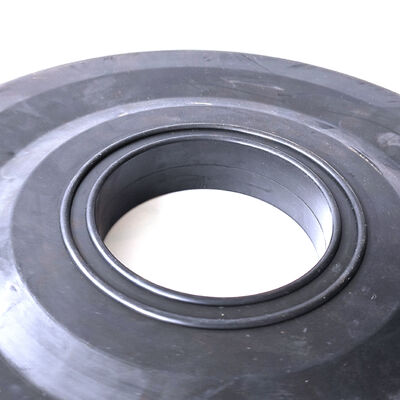

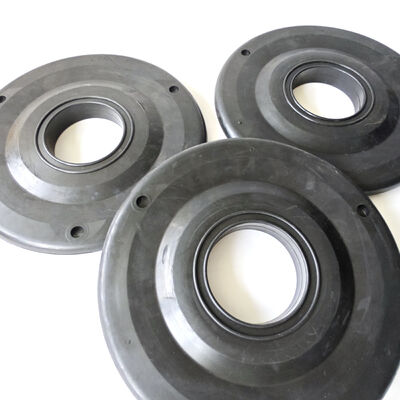

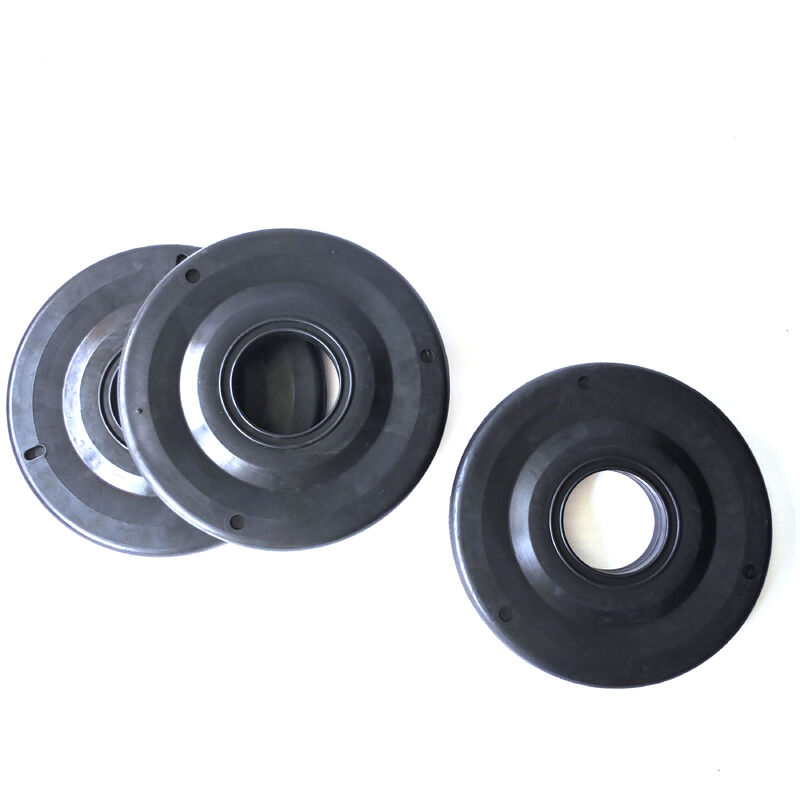

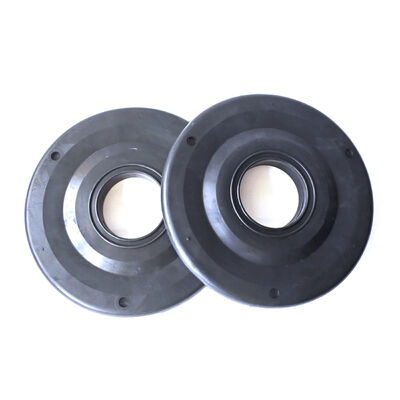

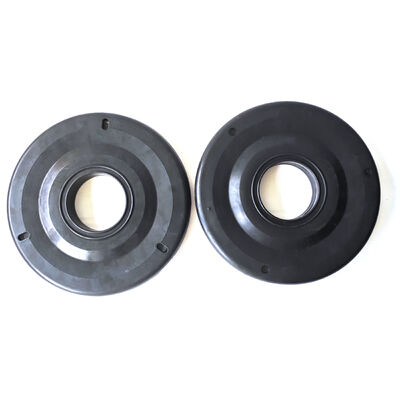

High Performance NBR Flat Pipe Wiper for Oil and Gas Drilling with 9 Inch Size

• Nitrile (NBR) compound selection for drilling service depends on fluid exposure and mechanical duty:
• Oil Compatibility: Review the selected NBR compound against the exact oil, mud additives and cleaning chemicals. Do not assume all OBM or synthetic fluids have the same compatibility.
• Abrasion Duty: Specify pipe speed, solids exposure and surface condition. Review wear and replacement criteria for the installed wiper.
• Elastic Response: Confirm compound hardness and opening geometry for pipe-body contact and tool-joint passage.

1. Tear Resistance: Review tool-joint passage, scale and damaged pipe surfaces; specify relevant compound tests and inspection requirements.
2. Shape Recovery: Specify compound test conditions and acceptance criteria rather than a universal cycle-life claim.
3. Chemical Exposure: Provide cleaner and fluid formulations, temperature and exposure duration for compatibility review.
4. Wiping Contact: Review opening fit and movement conditions to balance wiping contact, friction and tool-joint passage.

Q1: Why should I choose NBR over Natural Rubber for my pipe wipers?
A: NBR is commonly considered for oil-exposed rubber components. Select the exact compound using the actual fluid formulation, additives and temperature, and review relevant immersion data.

Q2: Can these NBR wipers withstand high-temperature drilling?
A: Confirm the selected compound against actual fluid and ambient temperatures, duration and rubbing duty. HNBR alternatives require specific review; the material name alone does not establish high-temperature or H2S suitability.

Flat Wiper Opening and Mounting Dimensions

The nominal 9-inch outside diameter corresponds to 228.6 mm. For the listed 2 3/4-inch opening, confirm the measured center opening and tolerance against the drawing or removed sample before ordering. Include thickness, retaining surfaces, pipe-body OD and the largest tool-joint OD. A nominal opening does not establish universal fit or clearance through the supported disc.

Send both-face photographs, an edge view and the installed support reference for replacement matching. Keep NBR compound and hardness identification with the dimensional drawing so repeated orders use the same configuration.
