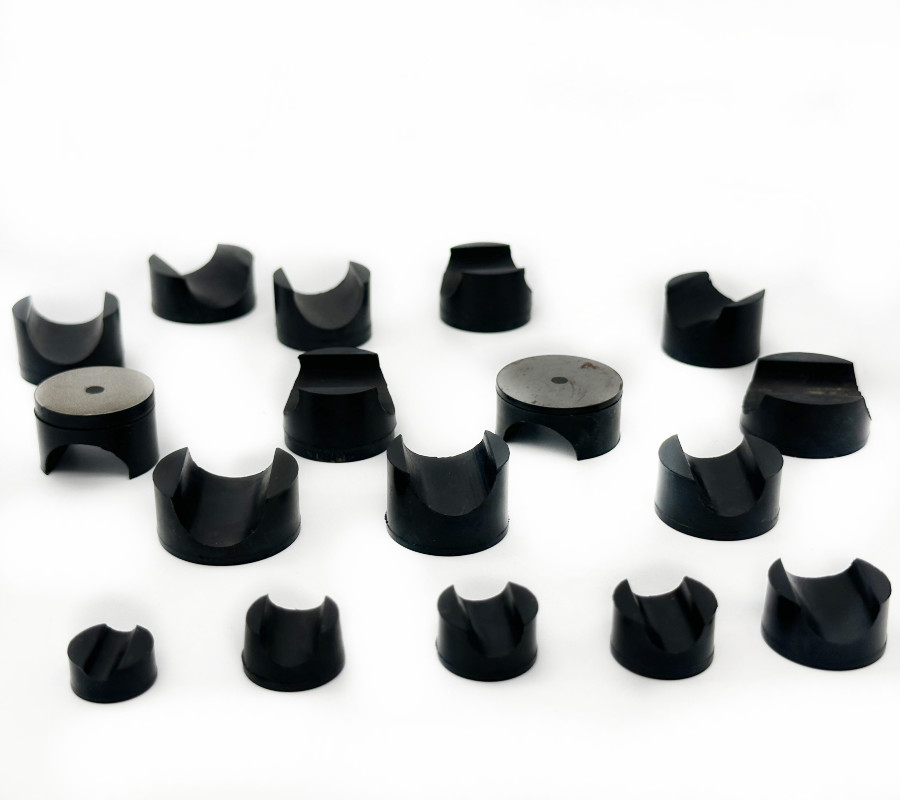

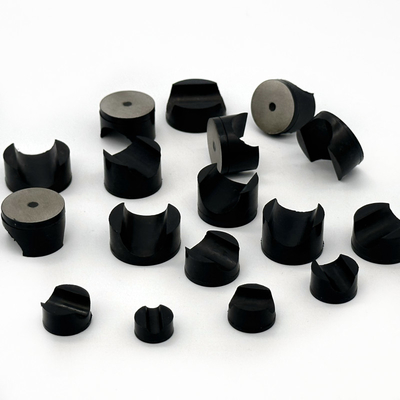

NBR 80 Shore A Rubber-to-Metal Ball Retaining Plugs for Swivel Joints
Buna-N (NBR) 80 Shore A nominal rubber-to-metal ball retaining plugs are specified for the matching swivel-joint ball-loading port. Confirm plug dimensions, metal insert grade, retention arrangement and the equipment drawing. Any 10,000 or 15,000 psi requirement must be verified for the complete swivel assembly; the plug material alone does not establish a pressure rating.
Nominal swivel-joint connection sizes: 1.5, 2, 3 and 4 inches; select the plug using actual port and ball dimensions.
Material: NBR (Buna-N), 80 Shore A nominal, bonded to specified metal insert; hardness tolerance and metal grade to drawing.
| Swivel ball plug — assembly rating to equipment specification |
4" |
| Swivel ball plug — verify assembly rating and part drawing |
1.5" 2" &3" |
| MOQ |
5000
|
Application:
Dimension references for enquiry: 7/8 inch plug diameter with 1/2 inch ball, or 3/4 inch plug diameter with 1/2 inch ball. Confirm the exact part drawing for the swivel manufacturer and model.
Dimension reference: 1/2 inch plug diameter with 1/4 inch ball; verify port depth, retention features and tolerances.
Dimension reference: 5/8 inch plug diameter with 3/8 inch ball; verify the matching swivel drawing before ordering.
Dimension reference: 7/8 inch plug diameter with 5/8 inch ball. Diameter alone does not establish interchangeability; include the equipment part number and complete plug profile.
Shanghai Qinuo Industry produced a full series fittings for oil and gas field.
Other available products are: rubber o rings, seal rings, swab cups, o ring kits ect.
Other relative rubber products for oil drilling use:
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Our company operates an ISO 9001 quality management system. Specify dimensional inspection, rubber-to-metal bond requirements and material documentation for the ordered plug. RoHS compliance, where required, must be confirmed for the selected materials and applicable documentation.
Qinuo Equipment list:
| 20 Cavities Rounding Comounding Machines |
Automatic Powder Distribution Machine |
Automatic Oil Distribution Machine |
8 Sets of Open Cell Mixers
( From 6 inches to 16 inches) |
5 Layers of Material Cooling Machine |
3 Sets of 55kq Closed Cell Mixers |
| 2 Sets of Material Preform Machine |
3 Sets of Silicone Vacuum Mixer |
65 mm Diameter Silicone Extrusion Line |
| JG-65mm Diameter Silicone Extrusion Line |
75mm Diameter Silicone Extrusion Line |
90 mm Diameter General Rubber
Extrusion Line |
75mm Diameter General
Rubber Extrusion Line |
Fiber Reinforced Rubber Extrusion Line |
Vulcanizing Tank |
| Adhesive Machin |
28 Sets of Small Vulcanizing Molding Machines(From 50Ton to 100 Tons) |
25 Sets of 200 Ton Vulcanizing
Molding Machine |
4 Sets of 200 Ton Injection
Compression Machine |
2 Sets of 200 Ton Vacumm
Compression Machine |
2 Sets of 250 Ton Vulcanizing
Molding Machine |
2 Sets of Horizontal Molding Machine |
4 Sets of 300 Ton Vulcanizing
Molding Machine |
2 Sets of 300 Ton Injection
Compression Machine |
Punching Machine |
Tensile Strength Tester |
| Brittleness Tester |
Hardness Tester |
Thickness Gauge |
| Mooney viscometer |
Rheometer Tester |
Analytical Balance |
| Electrical Resistance Measurer |
Density Tester |
2 sets Aging Testing Oven |
Welcome to contact us for more information.
