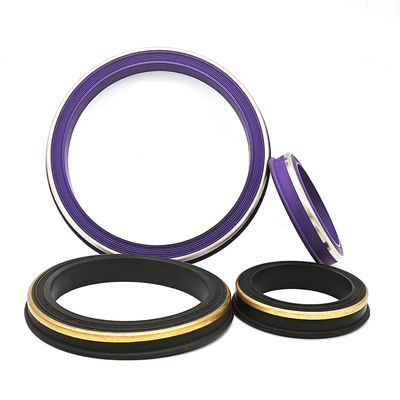

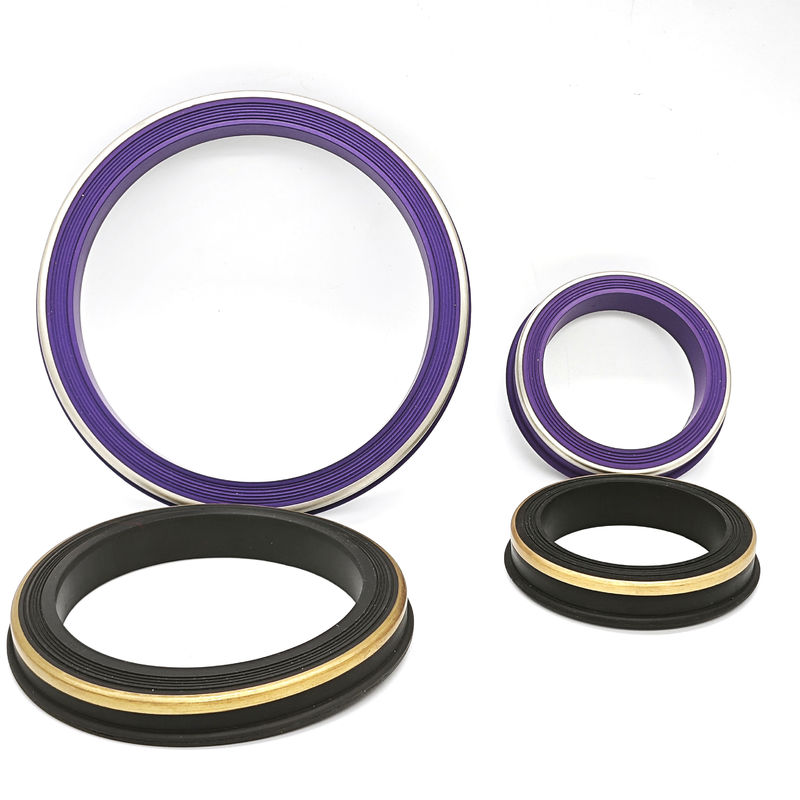

Hammer Union Seals for Figure 602, 1002, and 1502 Connections

Hammer Union Seals for Figure 602, 1002, and 1502 Connections

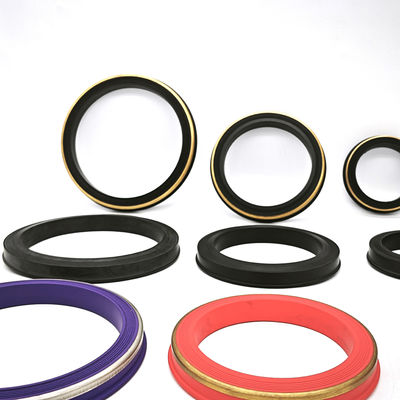

  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections

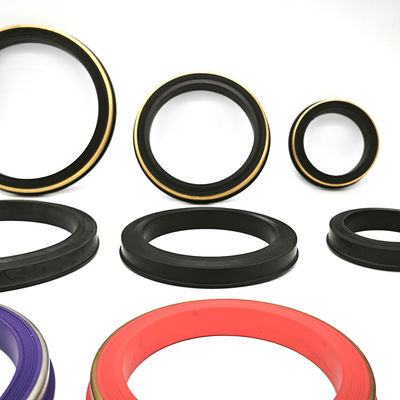

  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections
  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections
  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections
  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections
  • Hammer Union Seals for Figure 602, 1002, and 1502 Connections
Hammer Union Seals for Figure 602, 1002, and 1502 Connections
Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: Fig 602/1002/1502
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: USD$0.1-$0.5/pc
Packaging Details: 40*40*40cm carton packing
Delivery Time: Confirm after figure, size, compound, construction and quantity review
Payment Terms: T/T, Western Union, Paypal,Bank transfer
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Product Name: High Pressure Hammer Union Seal (Lip Seal) Compatible Figure: Fig 602/1002/1502 References; Confirm Manufacturer And Seal Drawing
Working Pressure: Refer To Complete Identified Union Assembly Rating Available Sizes: Listed Nominal 1, 2, 3, 4 Inches; Confirm Each Figure-size Combination
Material Grade: Oilfield Grade NBR, Viton (FKM), HNBR Hardness: Listed 80, 85, 90 Shore A Options; Specify One Grade And Tolerance
Service Environment: Confirm Specific Compound Qualification For Actual Fluid And Gas Duty Reinforcement Ring: Confirm Brass Or Stainless Backup Geometry And Retention From Drawing
Temperature Range: Confirm Continuous And Peak Limits For Selected Compound Color Coding: Agree Color Identification; Color Alone Does Not Establish Compound Or Rating
Chemical Resistance: Review Actual Medium And Exposure Against Specific Compound Manufacturing Process: High-precision Compression Vulcanization
Brand Name: SHQN / Royal Way Certification: ISO9001
Country Of Origin: China Function: Prevent Fluid Leakage In High-pressure Mud Systems
MOQ: 200pcs Delivery Time: Confirm After Figure, Size, Compound, Construction And Quantity Review
Package: Carton Or Wooden Box Service: OEM ODM Custom
Key Word: Hammer Union Lip Seals
Highlight:

Hammer Union Seals for Figure 602

,

Hammer Union Seals for Figure 1002

,

Hammer Union Seals for Figure 1502

Hammer Union Seals for Figure 602, 1002, and 1502 Connections



1. Product Overview



Our Hammer Union Seals are replacement lip seals for identified oilfield union assemblies. Confirm the manufacturer and groove drawing for Figure 602, 1002, and 1502 hammer unions. Replacement enquiries include fracturing, cementing and acidizing connections; confirm the complete assembly limits for the intended service.

Select the compound and backup construction for the actual fluid, temperature, pressure cycling and assembly geometry.



2. Technical Specifications


Figure Type Listed Assembly Class Reference (PSI) Typical Service Seal Design
Figure 602 6,000 PSI Water, Oil, Gas Lip Type / Standard
Figure 1002 10,000 PSI High-Pressure Mud/Cements Lip Type with Brass/Stainless backup
Figure 1502 15,000 PSI Fracturing, Acidizing Lip Type with Brass/Stainless backup

These listed pressure classes refer to union assemblies. Confirm the actual manufacturer, size and service rating before selecting a replacement seal; the rubber alone has no independent system pressure rating.





3. Material Comparison & Selection

Material Temp Range Key Advantages Best For
NBR (Nitrile) Confirm selected NBR compound limits Excellent oil resistance & cost-effective. Standard oil/water service.
FKM (Fluoroelastomer) Confirm selected FKM compound limits High temperature & chemical resistance. Specific gas, fluid and temperature qualification required.
HNBR (Hydrogenated Nitrile) Confirm selected HNBR compound limits High mechanical strength & abrasion resistance. High-pressure fracturing (Frac).
PTFE  Confirm selected PTFE grade limits Review chemical compatibility for the specific PTFE grade. Review media compatibility and required seal construction.







4. Key Features

  • Pressure Integrity: Confirm working and test pressure from the complete assembly documentation and follow its installation and test procedure.

  • Anti-Explosive Decompression (AED): Specify gas composition, pressure cycling and the required compound qualification before ordering.

  • Interchangeability: Match manufacturer, figure, size, groove and seal profile; figure number alone does not establish interchangeability.

  • Reinforcement Options: Optional Brass or Stainless Steel backup rings with dimensions and retention matched to the assembly drawing.



  •
  •
  •
  •
  •
  •
  •

5. Applications

Our hammer union seals are widely used across the global oil and gas industry:

  • Well Completion & Stimulation: Essential for fracturing (Frac) manifolds.

  • Drilling Operations: Mud pump suction and discharge lines.

  • Flowback Services: High-velocity fluid control.

  • Industrial Applications: High-pressure chemical and water transfer.



  •
  •
  •
  •
  •
  •
  •



6. Why Choose Our Sealing Solutions?

  • Material Traceability: Agree compound identification, hardness tolerance and required inspection or test documentation when ordering.

  • Certifications: Manufactured under our ISO 9001 quality management system.

  • Fast Lead Times: Confirm availability and delivery after the configuration and quantity are agreed.

  • Custom Engineering: Capability to develop custom compounds for Arctic cold or Desert heat environments.



  •
  •
  •
  •
  •
  •
  •



7. FAQ



Q1: How do I choose the right material (NBR, HNBR, FKM, PTFE) for my Hammer Union Seals?

A: Choosing the correct material is critical for seal longevity and safety.

  • NBR (Nitrile): A material option for oil and water duties, subject to the specific compound and operating conditions.

  • HNBR: Review mechanical properties, abrasion and temperature requirements for the exact compound.

  • FKM: Review the exact compound against fluid, gas and temperature requirements; the material family alone does not establish sour-service suitability.

  • PTFE: Confirm grade, profile and backup construction; it is not a direct substitute for an elastomer lip seal.

  •
  •
  •
  •
  •
  •
  •

Q2: Can your Hammer Union Seals withstand 15,000 PSI for Figure 1502 connections?

A: Confirm the complete Figure 1502 assembly rating, manufacturer, nominal size, groove and approved seal construction. Select backup dimensions and material from its drawing.

Q3: Do you offer AED (Anti-Explosive Decompression) grade seals for gas applications?

A: State the decompression duty and requested qualification method. Confirm available compound test documentation before specifying an AED or RGD grade.

Q4: Are these seals compatible with standard Figure 602, 1002, and 1502 unions?

A: Confirm the actual manufacturer and seal drawing for Figure 602, 1002 or 1502. Match groove dimensions, profile and backup arrangement before substitution.

Q5: How does H2S (Sour Gas) affect the service life of a Hammer Union Seal?

A: Review the specific compound against gas composition, exposure, temperature, pressure and decompression duty. Agree the applicable qualification requirements and supporting documentation before sour-gas use.

Figure 602, 1002 and 1502 Replacement Ordering

List each figure and nominal size separately for mixed maintenance orders. Send the union marking, groove dimensions and photographs of both seal faces and the side profile. Distinguish an elastomer-only part from a part with a separate or retained backup ring. Agree one compound, hardness tolerance and drawing revision for each order line before repeat supply.
