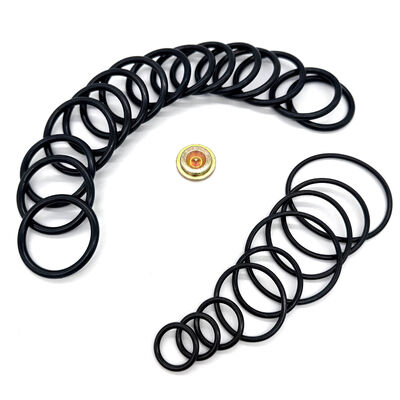

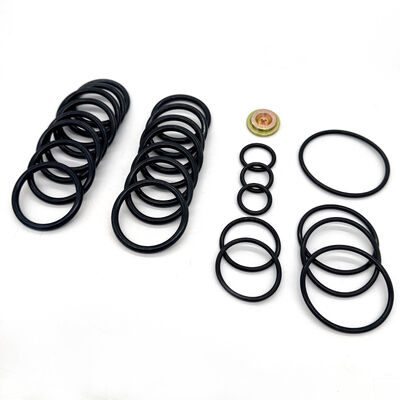

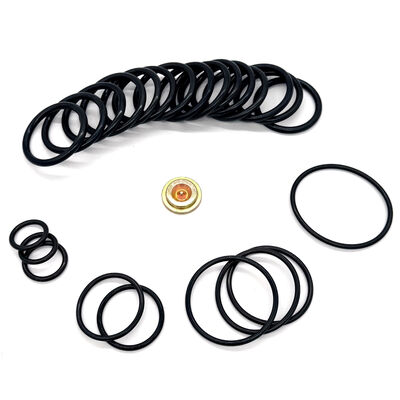

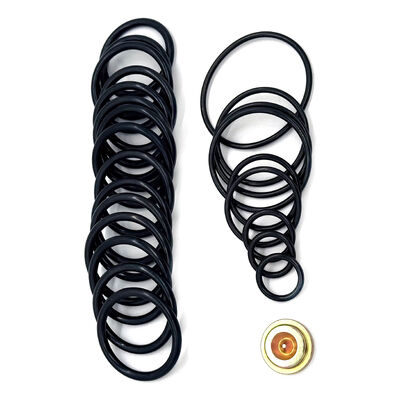

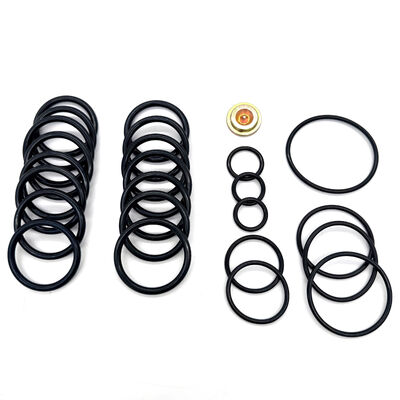

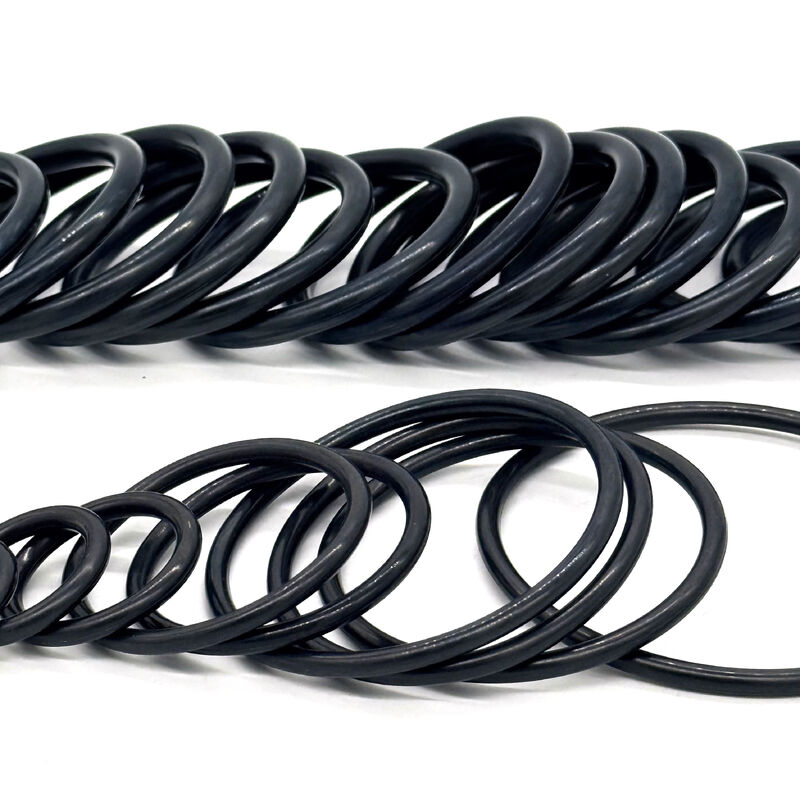

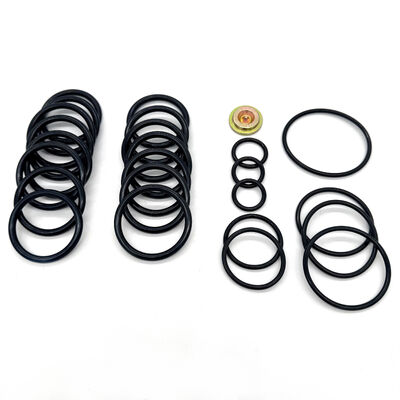

#10 Style Setting Tool Seal Kit & Wireline Adapter Redress Kits

The #10-style setting tool seal kit supplies replacement sealing components for a confirmed tool model and revision. Match the kit reference and component list to the original tool documentation before redress. Wireline adapter components are ordered against their own assembly reference.

Product Integration: #10 Wireline Adapter Kits (WAK)

---

Confirm the actual #10 wireline adapter model and revision. Setting-tool seals and adapter seals may differ in dimensions, quantity and installation position; verify the packing list for each assembly.

1. Pressure-Chamber Seals: Identify O-rings and backup rings by component reference, dimensions and compound grade.

2. Redress Contents: Match the supplied components to the approved BOM. Adapter-interface components require separate identification.

3. Dimensional Control: Agree the drawing tolerances and inspection requirements within our ISO 9001 quality management system.

Material Engineering: Material Comparison for Downhole Use

---

The existing table lists NBR, HNBR, FKM and TFE/P material families for initial review. Specify the actual compound grade and hardness for fluid composition, temperature, pressure cycles and gas exposure.

Technical Specifications & Operating Limits

---

1. Compatibility: Confirm #10 tool manufacturer, model, revision and kit reference.

2. Working Pressure: Specify the original tool pressure rating, operating pressure and pressure cycles together with the kit reference and required compound.

3. Temperature: Confirm continuous and peak limits for the supplied compound and actual tool duty.

4. Contents: Confirm O-rings, backup rings and chamber seals by reference and quantity. Wipers, T-seals and optional hardware are included only as specified on the packing list.

5. Manufacturing Standard: Produced under strict ISO9001 quality management.

Why Choose Qinuo for Your #10 Seal Kits?

---

With over a decade of experience since 2013, Qinuo stands out as a leading high-tech enterprise in the rubber seal industry:

1. Manufacturing Power: Our two wholly-owned factories in Nantong (near Shanghai Port) house over 30 vulcanization presses with a monthly capacity of 20 tons (40,000 lbs).

2. R&D Driven: We don't just produce; we design. Our team provides professional design services for complex rubber, plastic, and machined parts.

3. Global Reach: Trusted in over 100 countries, including the USA, Canada, UK, and Germany.

4. Quality Control: Agree dimensional inspection, compound requirements and documentation for the individual kit.

5. Delivery: Confirm availability, lead time and shipping arrangements for the required kit reference and quantity.



6.
7.
8.

Applications in Global Energy Markets

---

Our SHQN and Royal Way brand seals are widely utilized in:

1. Well Completions: Redress of the specified setting-tool sealing components used in plug and packer setting operations.

2. Well Intervention: Replacement seals for a serviceable tool, subject to its original inspection and operating requirements.

3. Other Equipment: Separate drawing-based seal review; #10 designation does not imply fit for unrelated equipment.

Frequently Asked Questions (FAQ)

---

Q: Do you offer custom branding for your seal kits?
A: Yes, as a professional manufacturer, we offer OEM services and custom packaging for our Royal Way and SHQN brands or your private label.

Q: How is sour-gas service specified?
Provide H2S and CO2 composition, pressure, temperature and decompression conditions. Qualification applies to the particular compound and complete-tool configuration; material-family names alone do not determine acceptance.

Q: Which records identify the correct kit?
Send the tool manufacturer, model and revision, existing kit part number, and original BOM or component drawing. Include the adapter reference when adapter seals are required.

Company and factory

---

Established in 2013 within the Shanghai Free Trade Zone, Qinuo is a high-tech enterprise specializing in rubber seal manufacturing for the Oil & Gas sector. We integrate R&D, production, and sales under our core philosophy: "Quality for Survival, Innovation for Development." This commitment has earned us recognition across global markets, where we currently promote our Royal Way and SHQN brands in the energy industry.

Qinuo provides professional design and production services for rubber parts, plastic components, and machined parts. Our solutions serve diverse sectors including oil & gas, automotive, home appliances, and industrial equipment. Guided by our principles of "High Quality, High Professionalism, High Efficiency," our dedicated team ensures excellence at every stage.

We operate two wholly-owned factories in Nantong City—strategically located just one hour from Shanghai Pudong Airport and Shanghai Port. Equipped with over 30 rubber vulcanization presses and supporting machinery, we produce more than 20 types of rubber seals and related products. Our monthly production capacity exceeds 20 tons (approximately 40,000 lbs), and we continue to expand rapidly.

Operating under a comprehensive ISO9001-based quality management system, we export to over 100 countries including the USA, Canada, UK, Germany, Finland, and Australia. We're confident in our ability to meet your requirements and look forward to a productive partnership.

#10 Seal Kit Procurement: Separate Tool and Adapter Lists

Prepare two component lists when the job includes both the setting tool and a wireline adapter. For each list, record the assembly revision, component reference, seal dimensions, backup-ring arrangement and required quantity. Keep installation positions identified during unpacking so similar-looking seals are not assigned to the wrong assembly. Follow the original tool instructions for inspection, lubrication, assembly and acceptance after redress.
