#10 Setting Tool Seal Kit - Oil & Gas Downhole Seals
Our #10 Setting Tool Seal Kit is specifically engineered for the demanding environments of oil and gas downhole operations. Designed as a high-performance redress kit for industry-standard #10 style pressure setting tools, this kit ensures leak-proof integrity during the deployment of bridge plugs, packers, and cement retainers.
To ensure a complete downhole solution, we also offer high-precision Wireline Adapter Kits (WAK), providing the essential interface between the setting tool and your downhole flow control devices.
Wireline Adapter Kits (WAK) & Seal Integration
A Wireline Adapter Kit (WAK) is critical for connecting the #10 setting tool to various downhole tools. Our seal kits are designed to work in perfect tandem with these adapters:
-
Seamless Compatibility: Fits all standard #10 wireline adapter configurations.
-
Complete Redress: Each kit contains all necessary O-rings and backup rings to service both the setting tool and the adapter interface.
-
Load Distribution: Engineered to withstand the mechanical stresses during the "setting" phase of the operation.
Rubber Material Comparison: Choosing the Right Seal
| Material |
Temperature Range |
Chemical Resistance |
Best For |
| Nitrile (NBR) |
-30°C to 120°C |
Good oil resistance |
General-purpose, shallow wells |
| HNBR |
-30°C to 160°C |
Excellent H2S & CO2 resistance |
High-pressure, sour gas environments |
| FKM |
-20°C to 200°C |
Superior chemical/heat resistance |
HPHT (High Pressure High Temp) wells |
| Aflas |
0°C to 230°C |
Highest steam/base resistance |
Extreme HPHT & aggressive well fluids |
Technical Specifications & Operating Limits
Our downhole seals are tested to meet or exceed rigorous oilfield standards.
-
Maximum Working Pressure: Up to 15,000 PSI (1,034 bar) dynamic sealing capability.
-
Temperature Rating: Standard kits rated up to 400°F (204°C) with premium materials.
-
Compatibility: Designed for #10 Style Wireline Pressure Setting Tools.
-

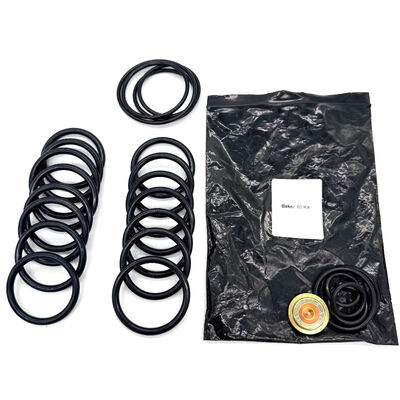

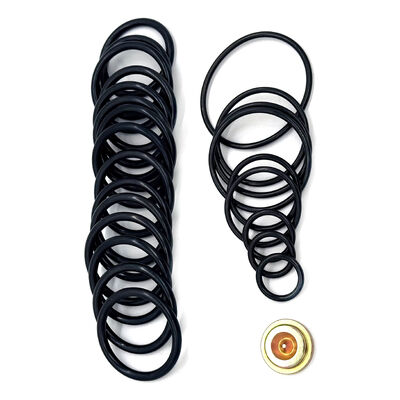

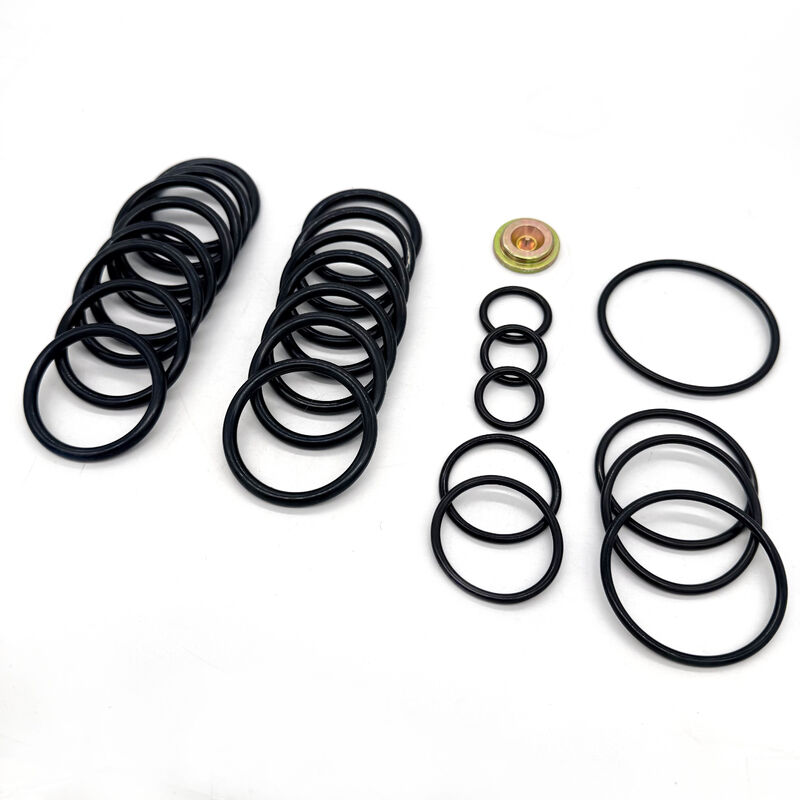

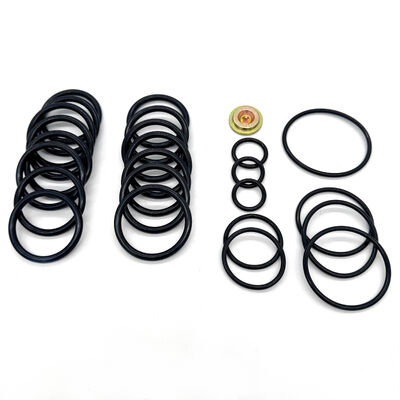

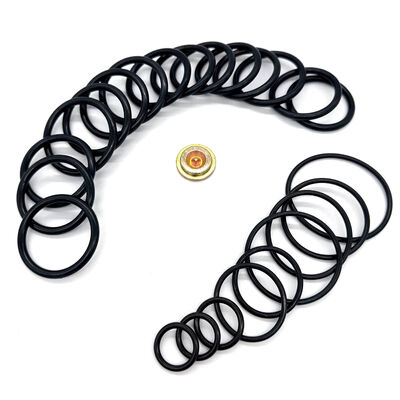

Kit Contents: Internal/External O-rings, PTFE backup rings, and specialized seals for the pressure chamber.
Key Applications
The #10 Setting Tool Seal Kit is a versatile solution used in various completion and intervention stages:
-
Bridge Plug Setting: Ensures the tool delivers the required force to set the plug securely in the casing.
-
Production Packer Installation: Maintains pressure integrity during the setting of permanent or retrievable packers.
-
Well Abandonment (P&A): Reliable performance during the setting of cement retainers.
-
E-Line Operations: Optimized for use with electric line power charges.
-
-
-
Why Choose Shanghai Qinuo Industry for Downhole Seals?
As a specialized manufacturer of oilfield sealing components, we offer more than just a product:
-
Precision Manufacturing: Our seals are molded to tight tolerances to ensure a perfect fit in #10 tool grooves, preventing seal "nibbling" under pressure.
-
Quality Controlled: Every seal kit is batch-tested for durometer hardness and dimensional accuracy.
-
Expert Support: Our engineers can help you choose between HNBR or Viton based on your specific wellbore fluid report.
-
Fast Global Shipping: We maintain a large inventory of #10 and #20 redress kits to minimize your Non-Productive Time (NPT).
Frequently Asked Questions (FAQ)
Q: Does the kit include backup rings?
A: Yes, all our #10 Seal Kits include high-grade PTFE or specialized backup rings to prevent extrusion under high pressure.
Q: Can you provide seals for sour gas (H2S) wells?
A: Absolutely. We recommend our HNBR 90 Durometer or Aflas compounds specifically for H2S and CO2 service.
Q: Are your kits compatible with other setting tool sizes?
A: This kit is for the #10 tool. We also manufacture seal kits for #20 setting tools and various adapter kit sizes.
