High-Performance Seal Kit for #10 Wireline Pressure Setting Tool

Product Overview

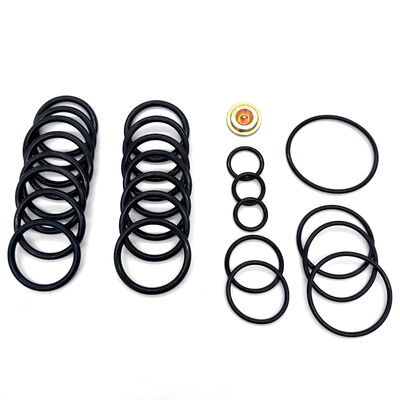

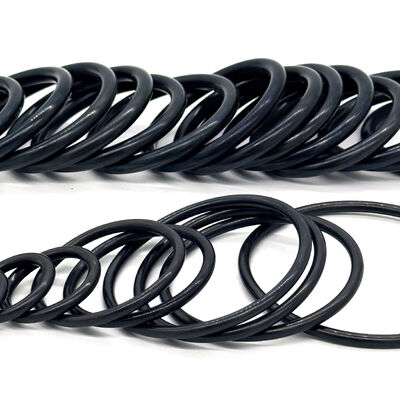

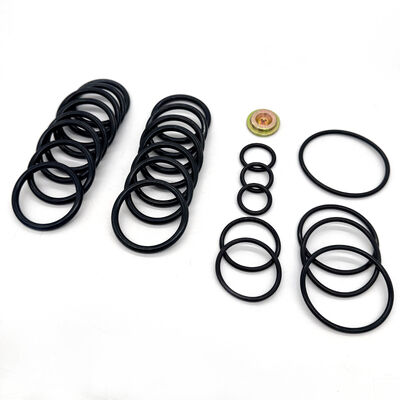

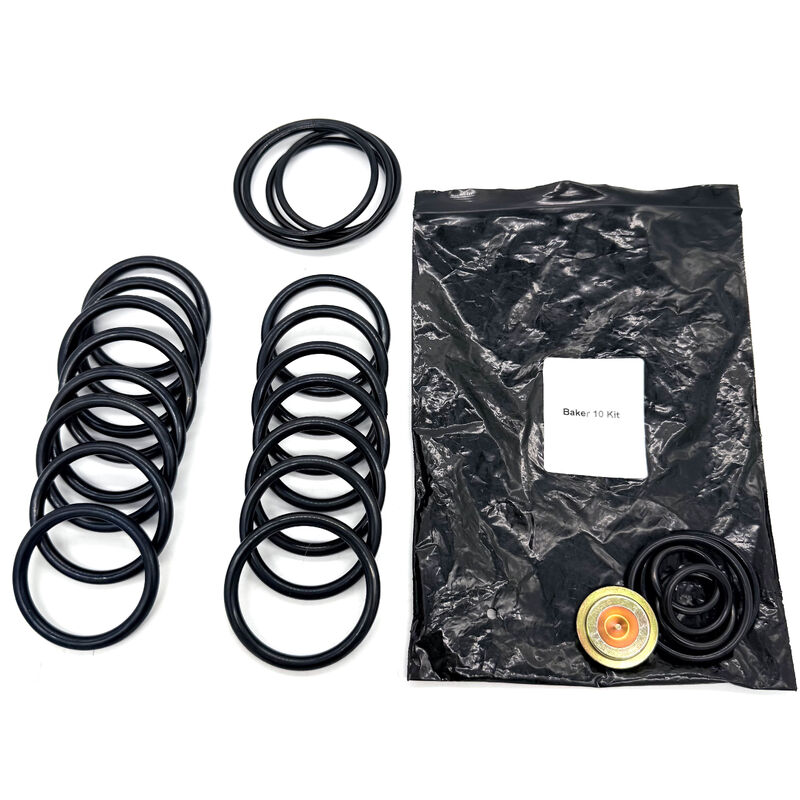

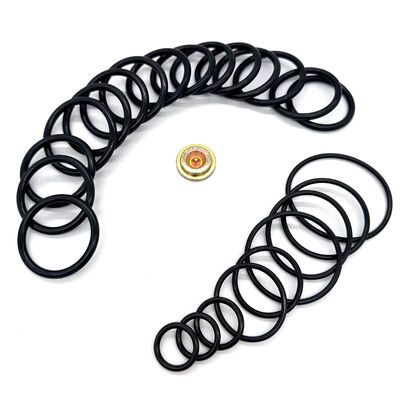

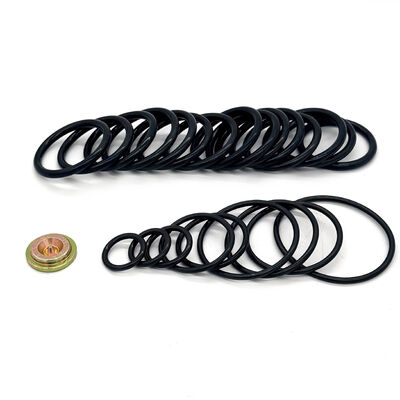

#10-style wireline pressure setting tool seal kits are replacement redress components for the specified tool model and revision. Confirm the kit reference and component list against the original tool documentation before ordering. A seal kit supports tool maintenance; it does not establish the tool pressure rating or acceptance for a particular completion operation.

Wireline adapter kit requirements are reviewed separately against the setting tool and downhole device interfaces. The adapter and seal kit are separate assemblies; verify whether either is included in the quotation.

Product Features & Benefits

---

• Material Selection: NBR, HNBR and FKM are listed compound options. Confirm the supplied grade and hardness against the service fluid, temperature and gas exposure. Other materials require separate specification.

• Redress Contents: Confirm each O-ring, backup ring and other sealing component by part reference and quantity. The approved packing list determines the supplied kit contents.

• Tool Service: Follow the tool manufacturer’s redress, inspection and acceptance requirements. Replacement seals do not qualify the complete tool for pressure or setting loads.

• Adapter Interface: Match the actual #10 tool and adapter revision. A style designation alone does not establish fit with every adapter.

• Maintenance Preparation: Check the kit packing list and component references before planned redress work.

•
•
•

Technical Specifications & Operating Parameters

---

Wireline Adapter Kit (WAK) Integration

---

The Wireline Adapter Kit is the essential interface between the #10 setting tool and the downhole component (like a bridge plug).

Potential adapter applications require the exact tool and device interface to be confirmed:

1. Bridge Plugs: Verify the bridge plug model and adapter interface before specifying the tool and redress kit.

2. Packers: Confirm the packer model, setting requirements and adapter configuration separately.

3. Cement Retainers: Review the device model and required setting interface; no universal torque or pressure capability is implied.

4.
5.
6.

Applications in Oil & Gas Operations

---

Our #10 Setting Tool Seal Kits are widely used in:

• Well Completion: Efficiently setting downhole hardware at depth.

• Well Intervention: Repairing or isolating zones under high-pressure conditions.

• Plug and Abandonment: Tool redress within an approved operation. This seal kit is not itself a permanent well barrier.

• Conveyance: Confirm the approved setting-tool arrangement for the actual line and operation. Do not infer e-line and slickline interchangeability from the seal kit.

•
•
•

Why Choose Our Sealing Solutions?

---

As a leading manufacturer of oilfield sealing components, we understand that a single seal failure can lead to costly non-productive time (NPT).

• ISO 9001 Quality Management: Agree the component dimensions, compound specifications and inspection documents for the #10 redress kit order.

• Compound Selection for Elevated Temperature and Pressure: Provide normal and peak temperatures, pressure cycles, fluid composition and exposure duration. Specify the required compound qualification and use limits from the original tool documentation.

• Supply: Confirm stock and lead time for the exact #10 or #20 kit reference; these are separate configurations.

•
•
•

Frequently Asked Questions (FAQ)

---

Q: When should the #10 tool be redressed?
A: Follow the original tool manufacturer’s redress interval and inspection procedure. Check the required replacement list for the actual tool revision before the next run.

Q: How is H2S service assessed?
A: Provide gas composition, pressure, temperature and decompression conditions. Acceptance requires the specified compound and complete-tool qualification; the material family alone does not establish sour-service suitability.

Q: How should adapter components be requested with the seal kit?
A: List the adapter assembly separately with the tool manufacturer, #10 or #20 model and revision, device interface, drawing or part reference, and component quantities. Confirm the supplied parts and availability on the quotation.

Company and factory

---

Established in 2013 within the Shanghai Free Trade Zone, Qinuo is a high-tech enterprise specializing in rubber seal manufacturing for the Oil & Gas sector. We integrate R&D, production, and sales under our core philosophy: "Quality for Survival, Innovation for Development." This commitment has earned us recognition across global markets, where we currently promote our Royal Way and SHQN brands in the energy industry.

Qinuo provides professional design and production services for rubber parts, plastic components, and machined parts. Our solutions serve diverse sectors including oil & gas, automotive, home appliances, and industrial equipment. Guided by our principles of "High Quality, High Professionalism, High Efficiency," our dedicated team ensures excellence at every stage.

We operate two wholly-owned factories in Nantong City—strategically located just one hour from Shanghai Pudong Airport and Shanghai Port. Equipped with over 30 rubber vulcanization presses and supporting machinery, we produce more than 20 types of rubber seals and related products. Our monthly production capacity exceeds 20 tons (approximately 40,000 lbs), and we continue to expand rapidly.

Operating under a comprehensive ISO9001-based quality management system, we export to over 100 countries including the USA, Canada, UK, Germany, Finland, and Australia. We're confident in our ability to meet your requirements and look forward to a productive partnership.

#10 Setting Tool Redress: Kit and Adapter Order Scope

List the seal redress kit and wireline adapter kit separately on the request. Identify the tool manufacturer, model, revision and current kit part number, then confirm each component and quantity against the tool BOM. Ask whether optional hardware and any consumable components are included; do not infer them from a general kit photograph.
