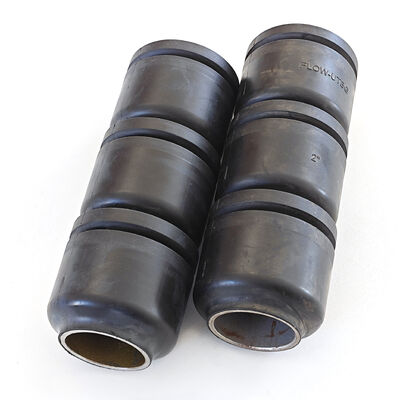

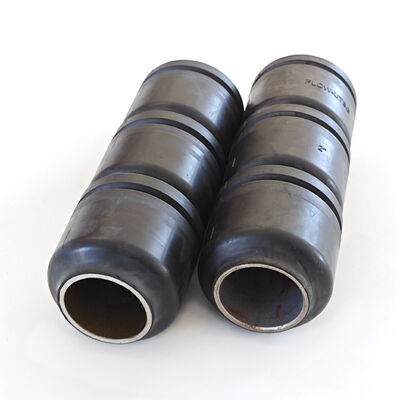

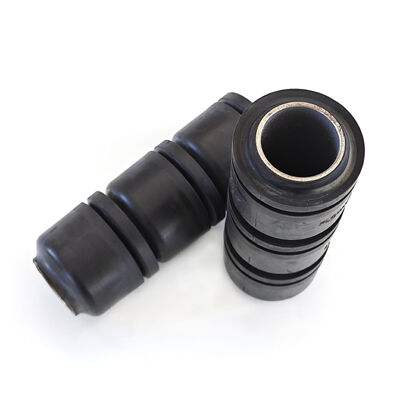

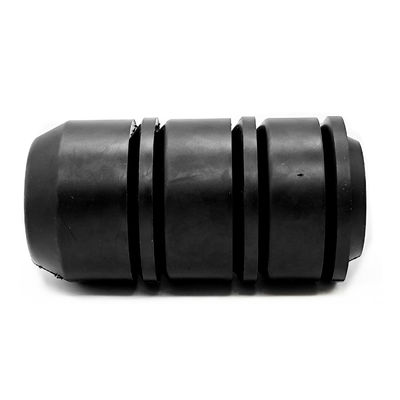

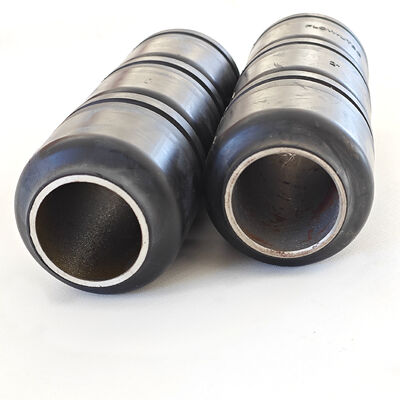

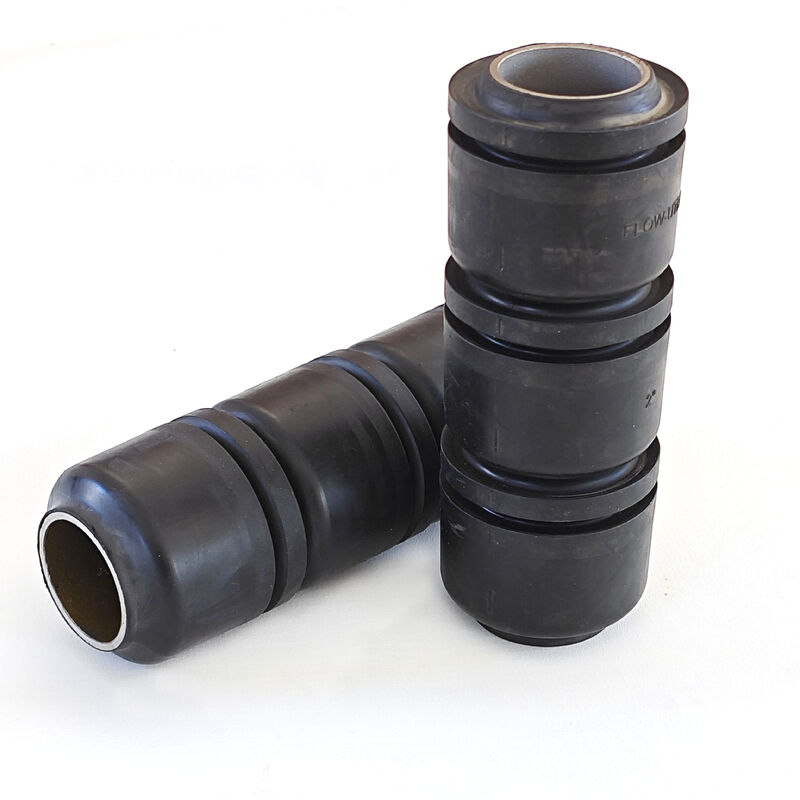

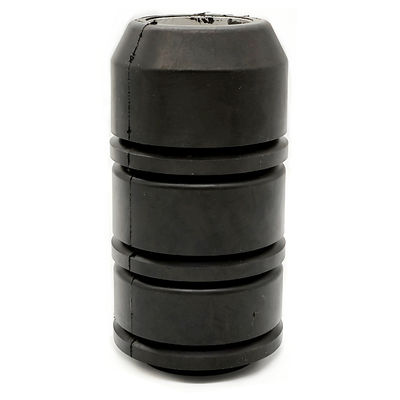

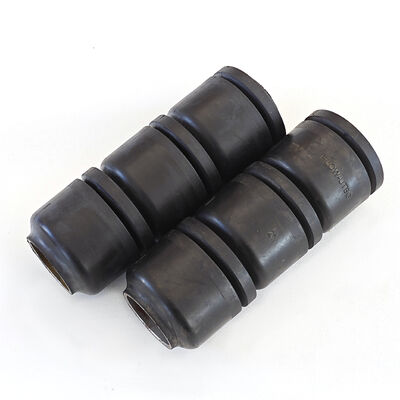

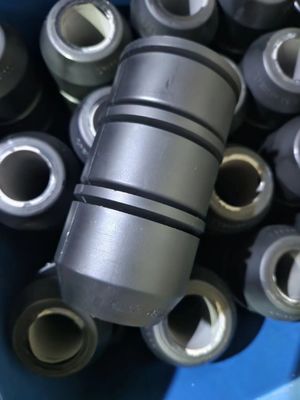

Adjustable TA Style Swab Cups for Variable Well Conditions

Versatile Fluid Lifting Solutions by SHQN – Precision Engineered for Oilfield Excellence

TA style swab cups are replacement components for fluid lifting during well swabbing. Select the cup for the actual tubing internal diameter, mandrel and fluid duty. Changes in fluid column, temperature or sand content should be reviewed when choosing the compound and cup arrangement.

Our ISO 9001 quality management supports manufacturing control for rubber swab cups. Rubber compound and insert construction are specified for the agreed drawing and service requirements.

Product Introduction: The TA Style Advantage

---

The TA style cup uses an elastomer profile with a metal insert. The term "adjustable" on this page refers to service configuration and compound selection; it does not mean the cup diameter can be mechanically adjusted to fit different tubing sizes.

1. Reinforced Core: Steel or aluminum insert options are listed in the existing range. Confirm the insert bore, retention details and material for the original mandrel.

2. Sealing Profile: Match the TA profile and cup arrangement to the approved swabbing tool. Lift performance depends on fit, fluid column and operating conditions.

3. Wear Inspection: Sand and tubing condition influence wear. Inspect the cup and insert during maintenance and replace damaged components before reuse.

Engineered for Variable Well Conditions

Review the following conditions before selecting a TA cup:

1. Fluid Load: Specify the fluid column and density for selection. Do not infer a maximum lift load or zero bypass from the style name.

2. Sand and Silt: Provide expected solids content and tubing condition when reviewing the compound and maintenance interval.

3. Chemical Exposure: NBR, HNBR and FKM options require grade-specific review for the fluid composition. H2S or CO2 service needs separate qualification for the operating conditions.

4. Well Conditions: Provide depth, temperature, fluid column and tool arrangement. Well pressure alone does not establish the cup differential-pressure or lift capacity.

Why SHQN (Qinuo) is Your Trusted Manufacturing Partner?

---

1. Decade of Expertise: Founded in 2013 in the Shanghai FTZ, we specialize in high-end rubber seals for the Energy sector.

2. Large-Scale Production: Our two factories in Nantong house over 30 vulcanization presses, with a monthly capacity exceeding 20 tons (40,000 lbs).

3. Global Reach: Trusted by service companies in over 100 countries, including the USA, Canada, and the UK.

4. Quality Management: ISO 9001 supports manufacturing processes. Agree dimensional, compound and inspection requirements for the cup order.

5. Strategic Location: Located near Shanghai Port, ensuring rapid global logistics and reduced lead times.

Applications

---

1. Well Completion: Swabbing back frac fluids to initiate hydrocarbon flow.

2. Production Operations: Fluid removal as part of the approved well intervention program.

3. Workover Operations: Removing debris and salt water from the tubing.

4. Well Testing: Fluid recovery during planned swabbing operations; specify the sampling tool separately where representative samples are required.

Frequently Asked Questions (FAQ)

Q: Does "adjustable" mean one cup fits different tubing sizes?
A: No. Order the cup geometry for the actual tubing and mandrel. Compound, hardness and insert options can be reviewed for the stated service, but the nominal size is not mechanically adjustable.

Q: Do you offer OEM/ODM for specific well conditions?
A: Yes. We provide professional design and production services. We can customize the rubber durometer (hardness) and the insert material to match your specific regional requirements.

Q: How do I confirm compatibility with my swabbing tool?
A: Compare the cup outside diameter, insert bore, overall height and retention arrangement with the mandrel drawing or removed cup. The TA designation alone does not guarantee fit.

Contact Us for a Factory-Direct Quote

Upgrade your well intervention efficiency with SHQN’s Adjustable TA Style Swab Cups. Contact our engineering team today for technical data sheets and competitive bulk pricing.

Brands: SHQN / Royal Way
Certifications: ISO9001
Website: www.unionseal.com

TA Cup Configuration for Changing Fluid Loads

Keep tubing nominal size separate from its measured internal diameter when requesting a replacement. For a repeat TA cup order, identify the original cup reference and mandrel, then describe any change in fluid density, solids or temperature. Confirm whether the existing steel or aluminum insert is required; do not substitute insert materials solely because both are listed as options.
