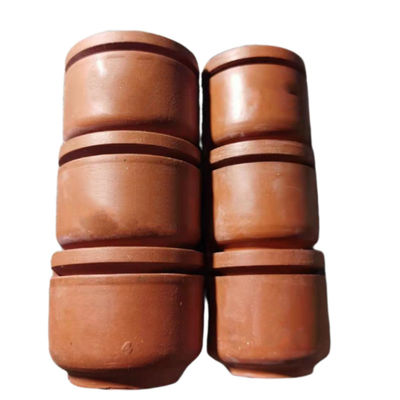

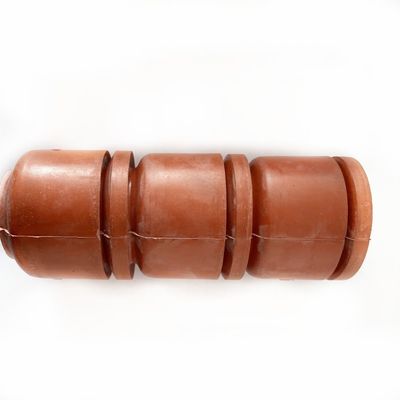

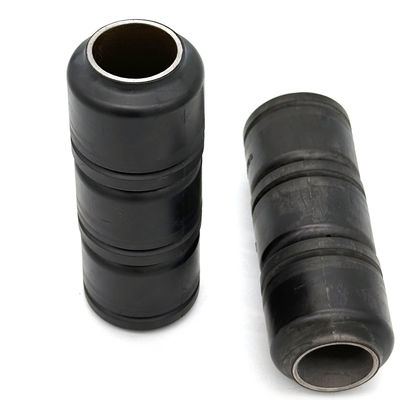

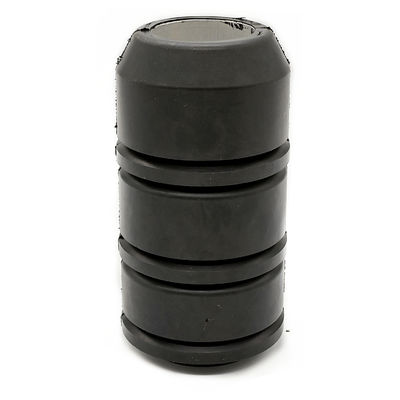

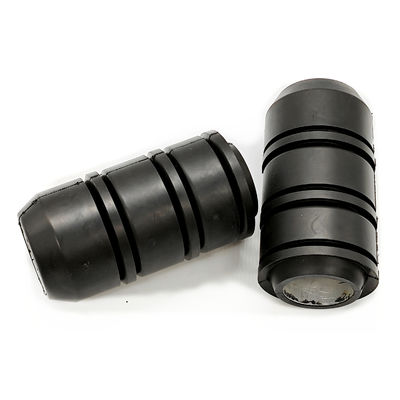

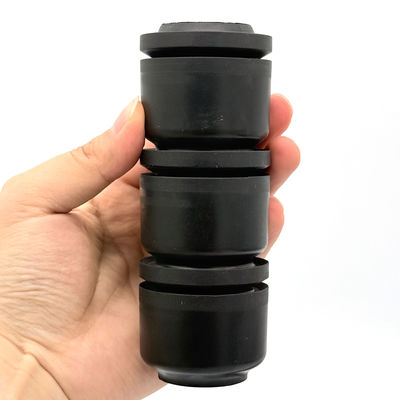

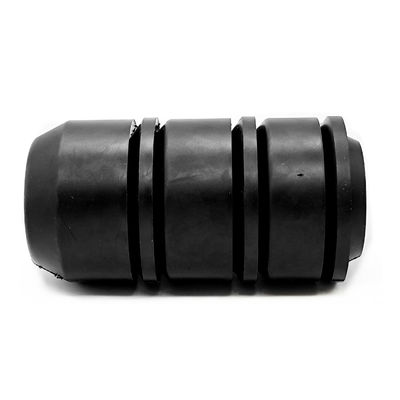

TA Type Rubber Swab Cups for 2'' 2-1/2'' 2-7/8'' 3-1/2'' Tubing

High-Efficiency Fluid Lifting Solutions for Oilfield Services

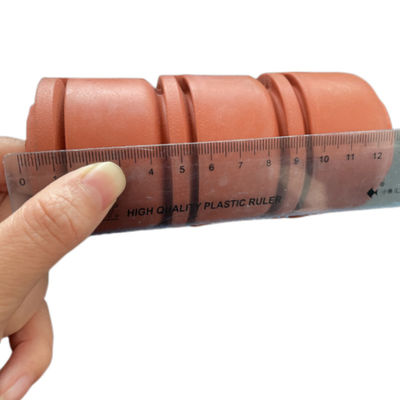

TA type rubber swab cups are replacement fluid-lifting components for well intervention and cleanout. Match the cup profile to the actual tubing bore and mandrel. Fluid recovery depends on cup fit, condition, tool arrangement and the operating program.

The TA type range lists steel or aluminum insert options and size labels including 2, 2-1/2, 2-7/8 and 3-1/2 inches. Confirm what each size label refers to on the cup drawing before ordering; nominal tubing size and measured tubing internal diameter are different dimensions.

Key Features of Our TA Type Swab Cups

1. Reinforced Structural Integrity

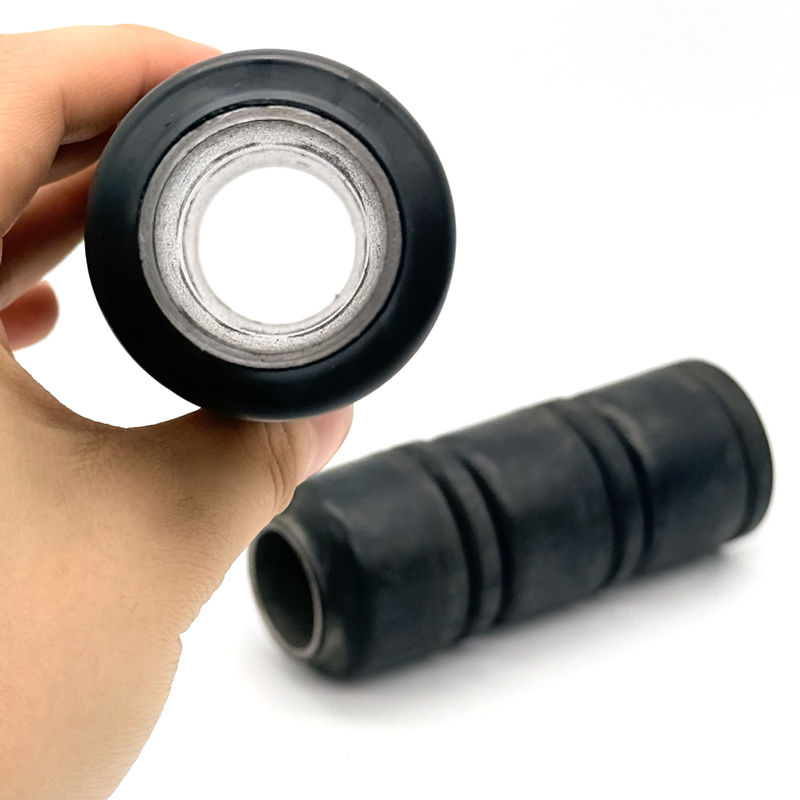

The metal insert supports the molded elastomer. Confirm insert bore, overall height and retention arrangement against the mandrel rather than substituting a similar-looking cup.

2. Abrasion-Resistant Rubber Compound

Compound selection and tubing condition influence wear. Provide sand content and service fluid when selecting the material, and inspect cups for damage during maintenance.

3. Versatile Pressure Response

Select the TA profile and cup arrangement for the stated fluid column and operating duty. The style name does not establish maximum lift capacity or guarantee that bypass will not occur.

4. Compound Selection for Chemical and Gas Exposure

HNBR and FKM are listed compound options. Provide chemical composition and any H2S or CO2 exposure for grade-specific review. Sour-service suitability requires qualification for the stated conditions.

Applications & Usage

1. Fluid Recovery: Lifting water or oil to initiate or increase production flow.

2. Wellbore Cleanout: Removing completion fluids, silt, or debris from the tubing string.

3. Swabbing Operations: Essential for workover rigs and service companies performing routine maintenance.

4. Testing and Evaluation: Fluid recovery during the planned intervention program. Specify sampling equipment separately where representative samples are required.

Size Selection Guide

The existing size labels below are ordering references. Verify the actual tubing bore and cup drawing instead of assigning a service load from the nominal size alone.

2-inch listed size: confirm cup outside diameter, insert bore and tubing internal diameter on the drawing.

2-1/2-inch listed size: confirm cup outside diameter, insert bore and tubing internal diameter on the drawing.

2-7/8-inch listed size: confirm cup outside diameter, insert bore and tubing internal diameter on the drawing.

3-1/2-inch listed size: confirm cup outside diameter, insert bore and tubing internal diameter on the drawing.

Why Choose Us as Your Swab Cup Supplier

---

1. Factory Direct Pricing: Eliminate middleman costs by sourcing directly from the manufacturer.

2. Custom Formulations: We can adjust rubber durometer (hardness) and material based on your specific well depth and temperature.

3. Quality Assurance: Agree compound, dimensional and inspection requirements for the order. ISO 9001 supports manufacturing quality management.

4. Global Export Capability: Fast shipping to North America, the Middle East, and Southeast Asia.

Frequently Asked Questions (FAQ)

Q: How do I verify the existing mandrel fit?
A: Compare insert bore, cup height and retention details with the original tool drawing or removed cup. The TA style designation does not establish universal compatibility.

Q: Which compound should I choose for elevated temperatures?
A: Provide continuous and peak temperature, fluid composition and exposure duration. Confirm the operating limits of the specified compound; HNBR and FKM families do not share one universal temperature rating.

Q: Can you provide private labeling (OEM)?
A: As a manufacturer, we offer full OEM services, including custom branding and packaging for large-scale distributors and service companies.

Technical Specifications & Parameters

---

Our Company & Factory

---

Established in 2013 within the Shanghai Free Trade Zone, Qinuo is a high-tech enterprise specializing in rubber seal manufacturing for the Oil & Gas sector. We integrate R&D, production, and sales under our core philosophy: "Quality for Survival, Innovation for Development." This commitment has earned us recognition across global markets, where we currently promote our Royal Way and SHQN brands in the energy industry.

Qinuo provides professional design and production services for rubber parts, plastic components, and machined parts. Our solutions serve diverse sectors including oil & gas, automotive, home appliances, and industrial equipment. Guided by our principles of "High Quality, High Professionalism, High Efficiency," our dedicated team ensures excellence at every stage.

We operate two wholly-owned factories in Nantong City—strategically located just one hour from Shanghai Pudong Airport and Shanghai Port. Equipped with over 30 rubber vulcanization presses and supporting machinery, we produce more than 20 types of rubber seals and related products. Our monthly production capacity exceeds 20 tons (approximately 40,000 lbs), and we continue to expand rapidly.

Operating under a comprehensive ISO9001-based quality management system, we export to over 100 countries including the USA, Canada, UK, Germany, Finland, and Australia. We're confident in our ability to meet your requirements and look forward to a productive partnership.

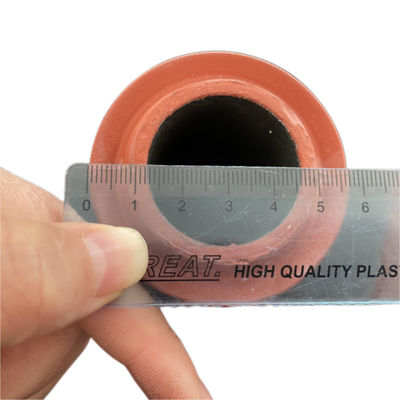

TA Replacement Cup: Verify Four Dimensions Before Ordering

For the listed TA size, compare the measured tubing internal diameter, cup outside diameter, insert bore and overall cup height. Record the mandrel retention arrangement and original part reference. Keep steel and aluminum insert configurations distinct on the order, and identify the selected compound on the packing list.
