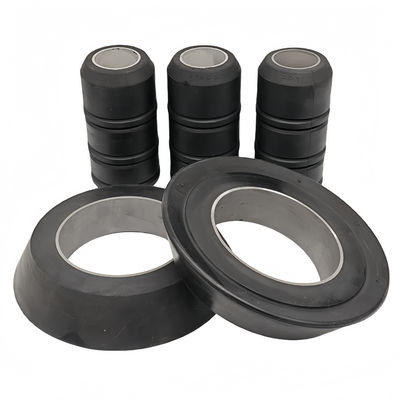

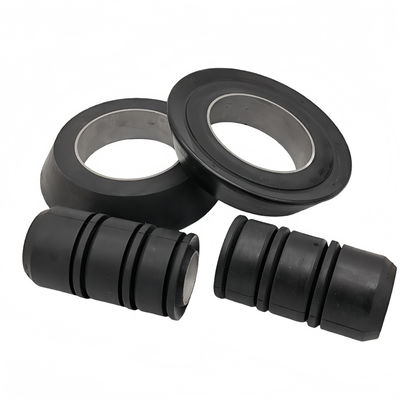

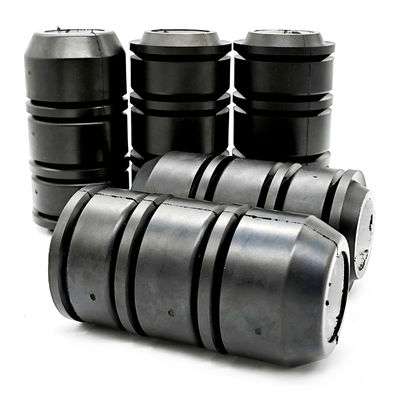

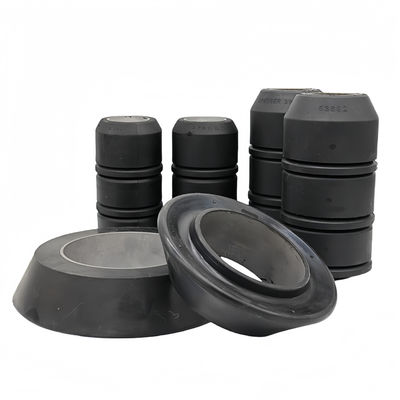

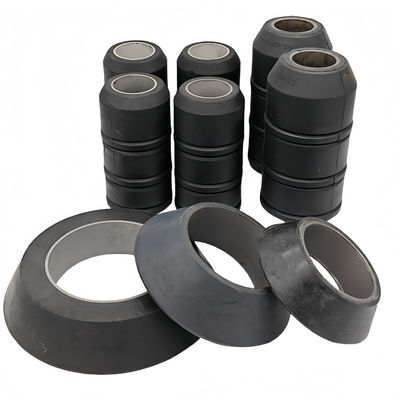

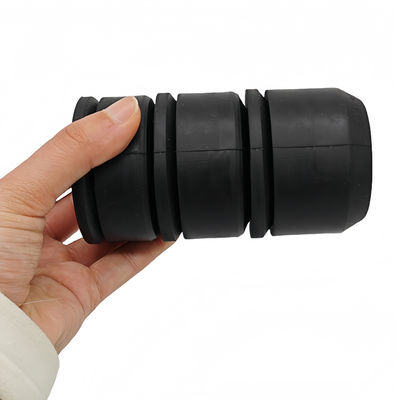

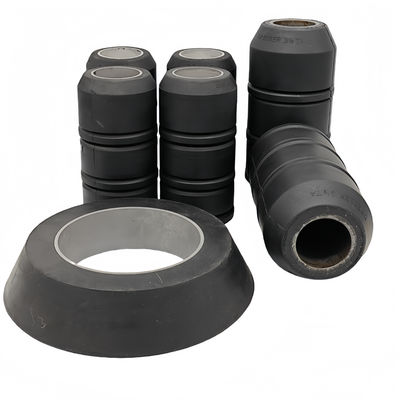

High-Performance Rubber Swab Cup with 10,000 PSI Pressure Rating, Nitrile (NBR) Material, and Custom Sizes for Oilfield Applications

High-Performance V, TA, and MV Type Rubber Swab Cups for Oil & Gas

Product Overview

Rubber swab cups are replacement components used for fluid lifting during well intervention and cleanout. This range lists V, TA and MV profiles. Confirm the original tool, tubing bore and cup configuration before selecting a replacement.

Choose the V, TA or MV reference for the stated fluid load, solids exposure and mandrel. Different style names identify different profiles; they do not establish interchangeable fit or a universal load rating.

Why Choose Our Rubber Swab Cups?

1. Compound Selection: Specify the elastomer grade and hardness for fluid exposure, temperature and mechanical duty.

2. Chemical Review: Provide oil, water, additives and gas composition. H2S or CO2 suitability requires grade-specific qualification.

3. Replacement Fit: Match cup outside diameter, insert bore, height and retention details to the actual mandrel and tubing bore.

4. Fluid Recovery: Use the approved swabbing arrangement and operating program; recovery depends on fit, fluid column and tool condition.

Applications

1. Wellbore Cleanout: Removing debris and unwanted fluids from the well.

2. Production Enhancement: Reducing fluid column weight to kickstart production.

3. Swabbing Operations: Fluid lifting within the approved workover program and cup load limits.

4. Workover & Intervention: Essential for maintenance and service rig operations.

Key Types & Product Features

1. V-Type Swab Cup
   The existing range describes an upturned-lip profile for review where fluid contains sand or solids. Verify the actual profile and tool requirement. Do not rely on lip inversion as a guarantee against a stuck tool; restricted tubing and excessive loads require the approved operating procedure.

2. TA-Type Swab Cup
   The listed TA configuration uses a steel or aluminum insert. Confirm the cup geometry, insert bore and retention arrangement for the original mandrel. Review the fluid column and duty before assigning a lift load.

3. MV-Type Swab Cup
   The existing range describes a multi-lip profile for lighter fluid-recovery duty. Confirm its actual dimensions and mandrel fit. A multi-lip designation does not guarantee passage through tubing restrictions or sealing at every load.



4.
5.
6.

Ordering V, TA and MV Cups as Separate Configurations

For a mixed replacement order, keep each V, TA or MV cup on a separate line with its part reference and quantity. Identify the cup dimensions, insert arrangement and specified compound on each line. The nominal tubing and casing sizes listed in the range are identification references; use measured internal diameter and the original cup drawing to verify fit.
