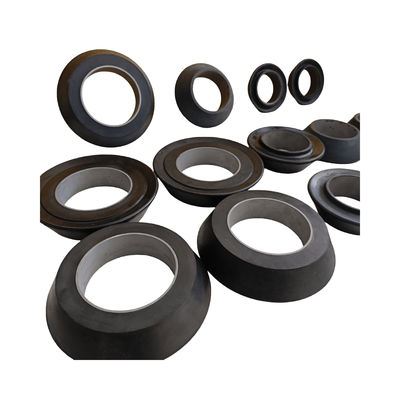

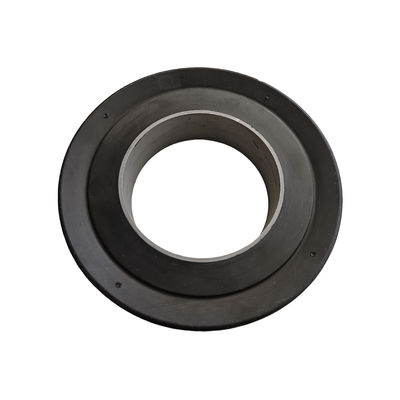

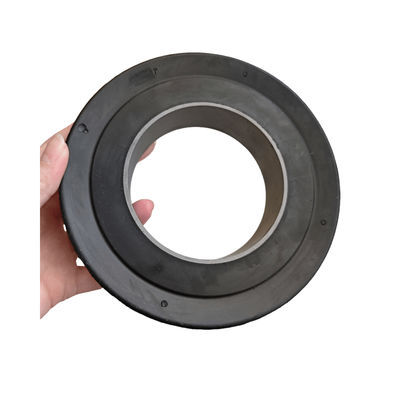

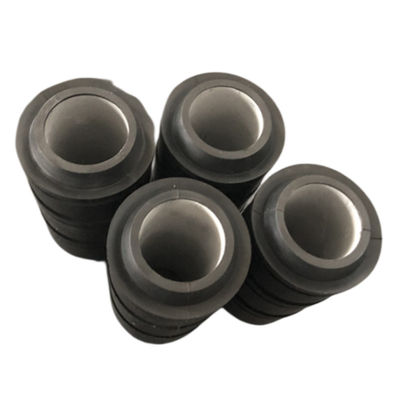

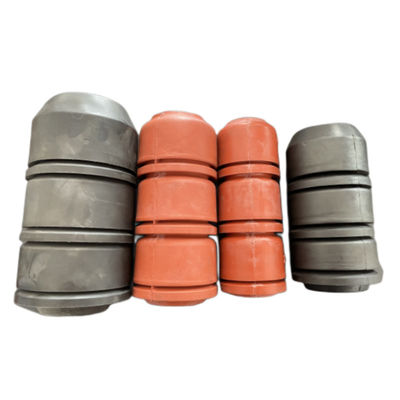

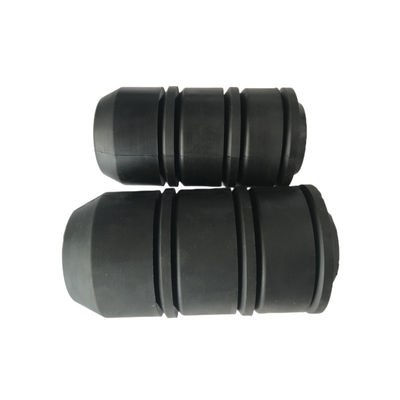

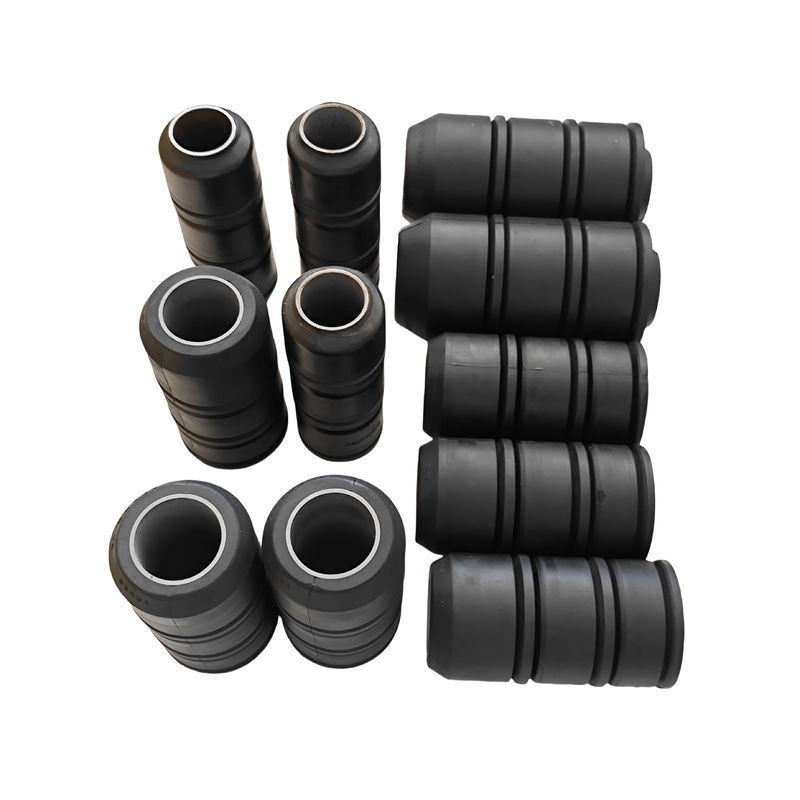

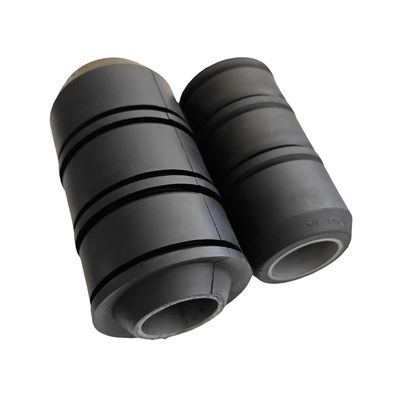

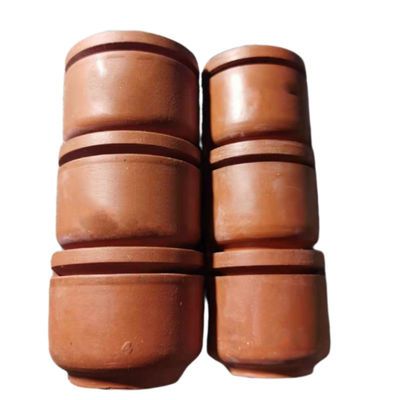

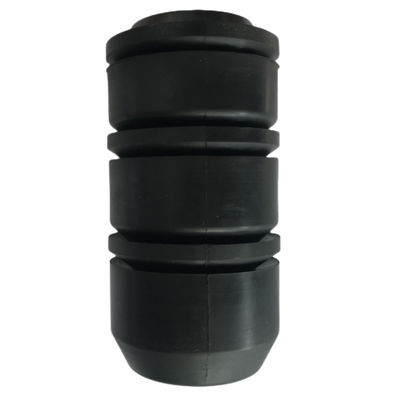

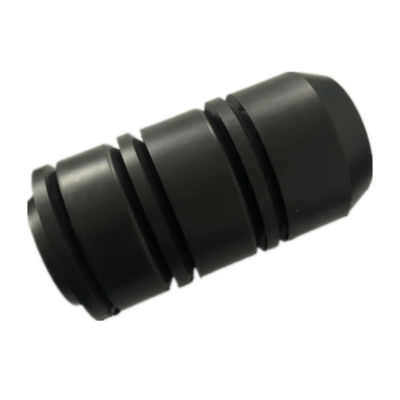

Steel-Core Swab Cup Enquiries: Bushing Dimensions and Mandrel Fit
Royal Way supplies steel-core rubber swab cup enquiries for equipment-defined downhole swabbing. Confirm the required cup profile, steel bushing dimensions and mandrel fit. Select the NBR or FKM grade for actual fluid and temperatures. The cup alone has no independent 10,000 psi working-pressure rating.
The existing catalogue introduces TA, V and MV profile references with different support and lip arrangements. Confirm the exact steel-core design and permitted tool duty. A steel core does not establish universal load, temperature or pressure capability.
Nominal tubing references include 2 3/8, 2 7/8, 3 1/2 and 4 1/2 inches. Match cup OD and core bore to the tubing inside diameter and mandrel drawing. Custom enquiries require agreed dimensions, compound, hardness and inspection criteria.
Steel-Core Swab Cup Replacement: Check Bore, Height and Seating
For a steel-core replacement, identify the bushing bore, axial height and seating arrangement from the mandrel drawing. The retained table lists steel and aluminium core rows; matching cup OD and ID values do not confirm that every core arrangement can be substituted.
Specify steel core on the order together with the cup profile, outside diameter, compound grade and inspection tolerances. Include tubing condition, fluid composition, temperatures and approved tool load requirements. Keep each profile and size separately identified for maintenance.
| Original nominal tubing reference (inch) |
Core and Description |
Catalogue cup OD (inch) |
Catalogue cup ID (inch) |
| 2-3/8" (2") |
Aluminum Core Swab Cup |
1.992" |
1.120" |
| 2-3/8" (2") |
Steel Core Swab Cup |
1.992" |
1.120" |
| 2-7/8" (2-1/2") |
Aluminum Core Swab Cup |
2.431" |
1.370" |
| 2-7/8" (2-1/2") |
Steel Core Swab Cup |
2.431" |
1.370" |
| 3-1/2" (3") |
Aluminum Core Swab Cup |
2.985" |
1.370" |
| 3-1/2" (3") |
Steel Core Swab Cup |
2.985" |
1.370" |
Replacement cup enquiries can be discussed from the required profile and approved drawing. Specify the nitrile or other compound grade and actual fluid exposure. Profile references do not imply original-brand manufacture or universal compatibility.
Available types of Swab cups:
TA style
TA is described in the existing range as a medium-load cup around a steel or aluminum bushing. Confirm the particular core material, cup profile and mandrel bore for the selected size. Load suitability and compound performance depend on the approved tool configuration and operating conditions.
V style:
The existing V-series description covers all-rubber lip profiles for sand-bearing fluid enquiries. Cup count, lip behaviour and load limits must follow the tool maker’s instructions. Review the selected compound for fluid, temperature and wear conditions rather than assigning universal chemical resistance.
TUF style:
The TUF-style description refers to an internally reinforced cup profile. Confirm the reinforcement, dimensions and load requirements against the tool drawing. Hot-well or rough-tubing suitability requires review of the actual compound and tubing condition.
NUF style:
The NUF-style description refers to a heavy-load rubber cup with a steel or aluminum bushing arrangement. Specify the exact profile, core material, dimensions and approved tool duty. A heavy-load description does not establish a pressure or lifting-capacity rating.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
|
Environment
|
oil, gas, gas condensate
|
|
Available Material
|
Compound and core construction by selected cup drawing; review fluid and temperatures
|

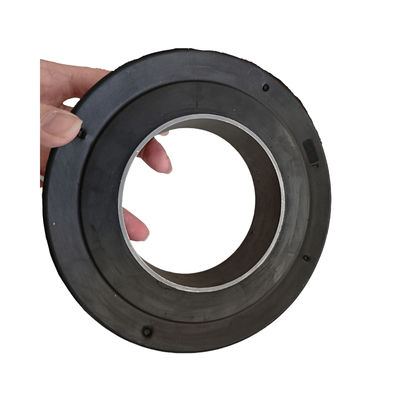

Other relative rubber products:
Packing and shipment:
- Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
- Air shipment: air port to air port or air port to door.
- Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

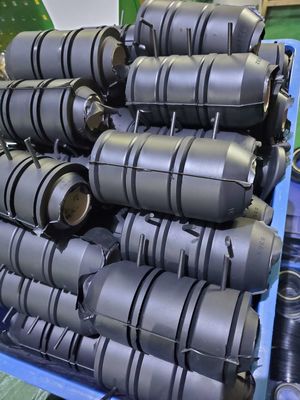

Quality management and inspection documents:
Shanghai Qinuo supplies oilfield rubber-part enquiries under Royal Way and SHQN. We operate an ISO 9001 quality management system. For swab cups, agree the drawing revision, compound, core material and dimensional inspection requirements. Confirm tooling, production availability and delivery with the quotation.
Mould corner view for the rubber parts:
FAQ:
Q.Why Choose Qinuo industry?
We provide them with one-stop service from R & D to production to satisfy their customization needs.
Confirm the final packing, destination and dispatch schedule with the quotation. Shipping options depend on the order size and route.
Q.What is your advantage?
- Has sound and mature supporting supply chain
- Lower mold costs
- High efficiency of development and design ability and short process time.
- Cost effective and good service attitude.
- More professional export sales staff who are all know rubber processing very well.
Q.Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q.What should be inspected for a steel-core replacement cup?
Specify steel-core bore, axial height and seating arrangement on the mandrel and cup drawings. Agree cup profile, OD, rubber grade, hardness tolerance and inspection criteria for the selected tubing size and tool duty.
Q.Can I get some samples?
Ask about sample availability for the specified steel-core cup profile, size and rubber grade. Agree sample quantity, dimensional inspection, price and shipping arrangements with the quotation.
Q.Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
