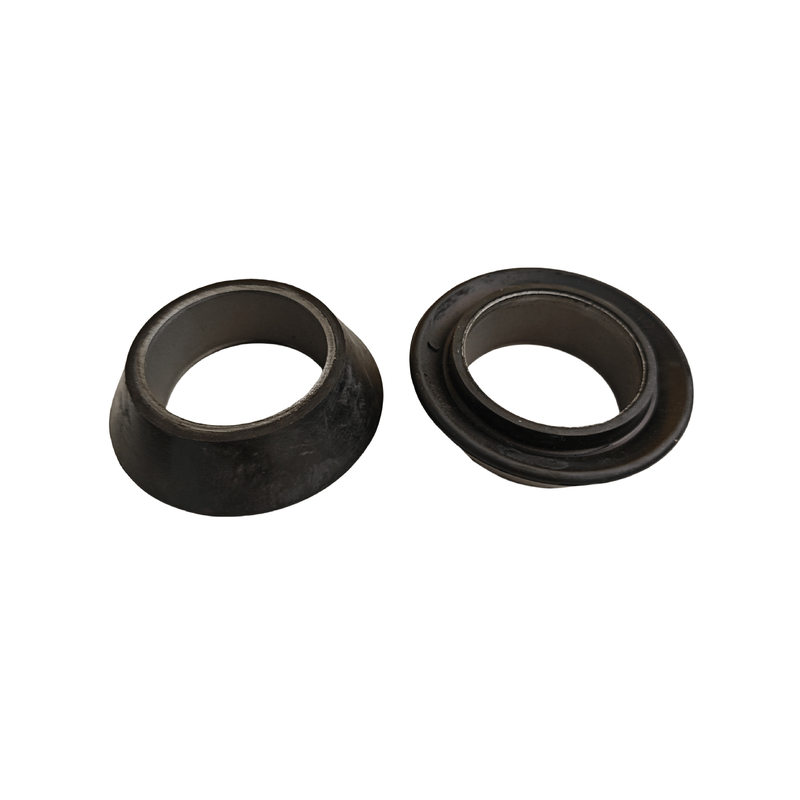

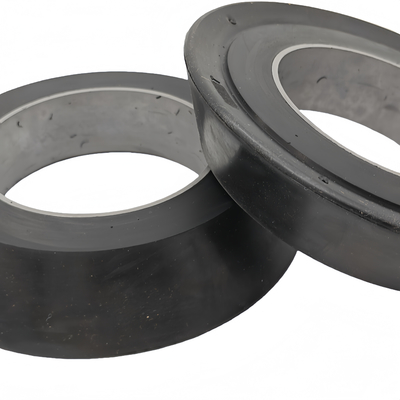

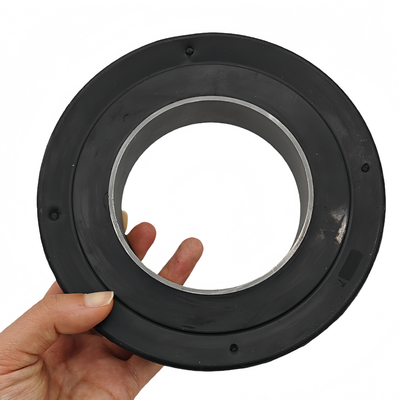

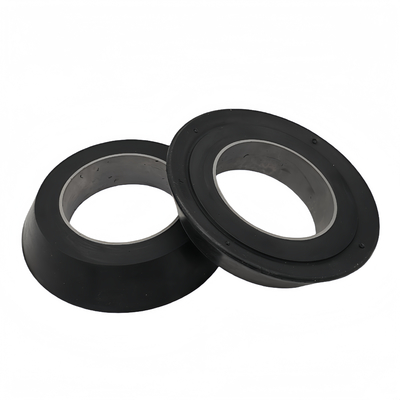

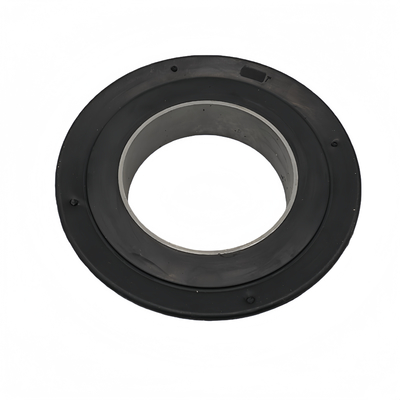

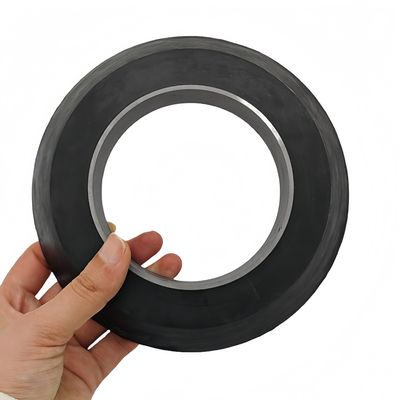

V Series Swab Cup for Sand-Laden Fluids:
The V Series swab cup is described with an upturned lip profile for swabbing fluids containing suspended sand. Light-duty and heavy-duty variants require separate selection by cup construction and operating load. Confirm the lip geometry and support arrangement for the actual part before choosing a replacement.
For sand-laden service, specify solids concentration, particle size, fluid chemistry and retrieval conditions. Nitrile or a specified Frac Fluid compound can be reviewed against those conditions. Service life depends on abrasion, tubing condition and operating procedure; a general harsh-service description does not establish a rated life.
| Normal size(In) |
OD(In/mm) |
ID(In/mm) |
Core and Description |
Weight(g) |
| 4 1/2 |
4.062/103.17 |
2.420/61.47 |
Steel Core Swab Cup |
137 |
| 5 1/2 |
4.970/126.24 |
2.920/74.17 |
Steel Core Swab Cup |
320 |
| 7 |
6.475/164.47 |
3.545/90.04 |
Steel Core Swab Cup |
560 |
Our Swab Cups are produced from a newly developed rubber in the popular Guiberson* profile in either a nitrile or Frac Fluid compound. These cups can also be produced in other specified materials. Confirm the selected compound, dimensional tolerances and service requirements for each ordered cup.
ISO 9001 Quality Management:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

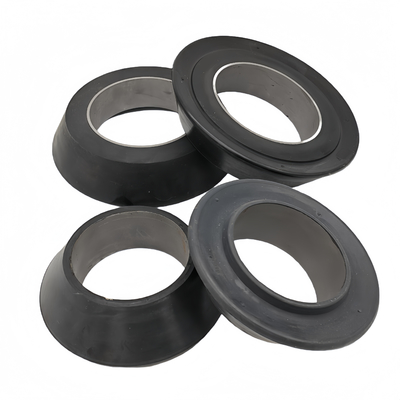

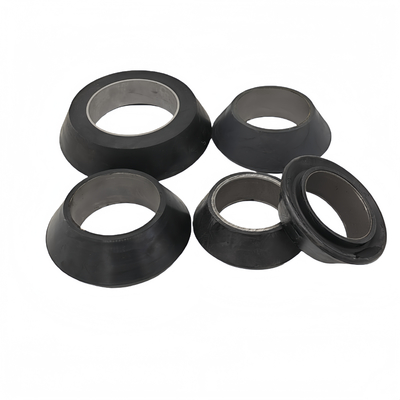

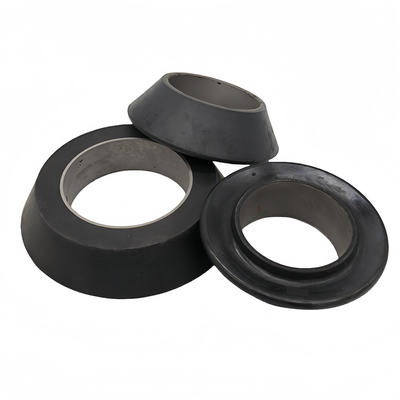

Available types of Swab cups:
TA style:
TA is a separate medium-load style built around a steel or aluminum bushing. Confirm tubing dimensions, support geometry and compound for the requested TA part; its construction should not be substituted for a V style solely on nominal size.
V style:
The V style range includes light-duty and heavy-duty descriptions with upturned lips that can invert under excessive loading. Match the cup arrangement to the tool maker's operating procedure. The dimensional table on this page lists steel-core variants, so confirm the actual core and bore rather than assuming every V cup is all-rubber.
TUF style:
The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style:
The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
| Environment |
oil, gas, gas condensate |
| Available Material |
FKM, , HNBR and nitrile rubber with or without Brass or Steel |
Packing and shipment:
- Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
- Air shipment: air port to air port or air port to door.
- Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Company View:
Other relative rubber products:
FAQ:
- Q.Why Choose Qinuo industry?
- We provide them with one-stop service from R & D to production to satisfy their customization needs.
We are based in the most big city Shanghai, which have two internation airports and two deepwater ports, we can ship the goods out at anytime while some inland suppliers need take a more time.
- Q.What is your advantage?
- 1. Has sound and mature supporting supply chain
2. Lower mold costs
3. High efficiency of development and design ability and short process time.
4. Cost effective and good service attitude.
5. More professional export sales staff who are all know rubber processing very well.
- Q.Are you manufacture or trading company?
- We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
- Q.How can we guarantee quality?
- Always a pre-production sample before mass production;Always final Inspection before shipment;
- Q.Can I get some samples?
- Sure, samples are available,3-10 samples are for free. Please note that only needs to pay for shipping cost.
- Q.Can you produce OEM products?
- Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
- Q.What's the term of payment?
- Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
- Q.Can you manage the shipment?
- Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Welcome to contact us
- Web: https://www.unionseal.com
The existing dimensional references are nominal 4-1/2, 5-1/2 and 7 inch sizes, with cup OD/ID pairs of 4.062/2.420, 4.970/2.920 and 6.475/3.545 inches. Match these part dimensions to the drawing, mandrel and actual tubing or casing bore; nominal well size alone does not establish fit.
Specify all-rubber or steel-core construction with the inquiry. The table weights are original reference values and should be checked against the selected drawing and sample before order confirmation.
Provide fluid density, suspended solids, lift conditions and temperature for load and compound review. Select the number of cups and allowable operating differential through the complete tool design; this listing does not establish a standalone 10,000 psi cup rating.
