V Series Swab Cup for Sand-Laden Fluids:

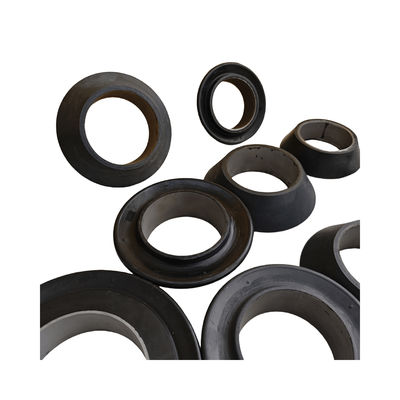

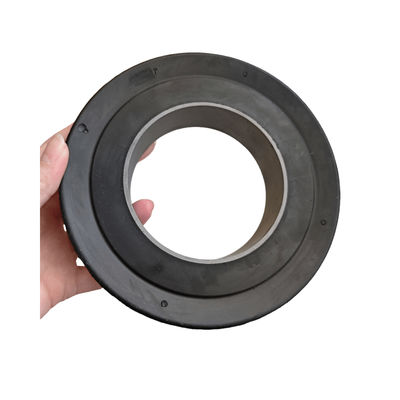

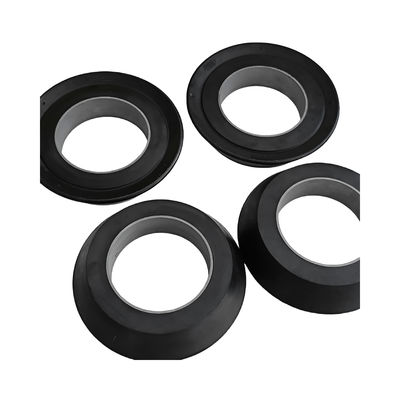

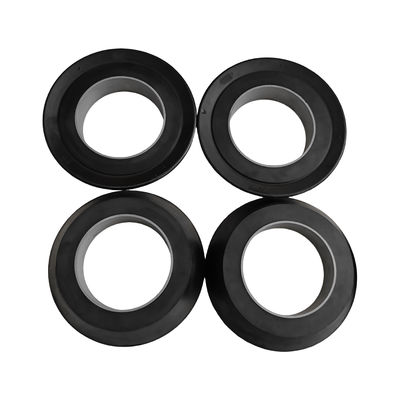

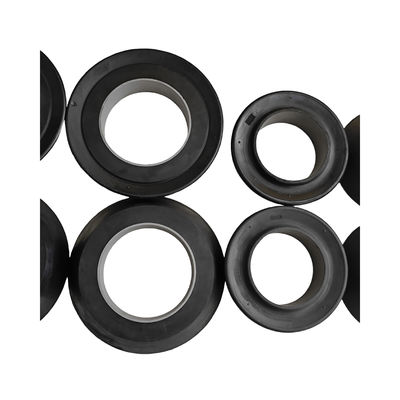

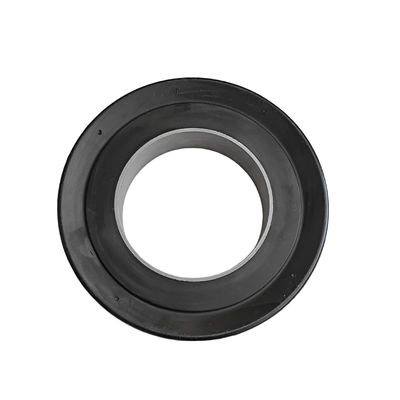

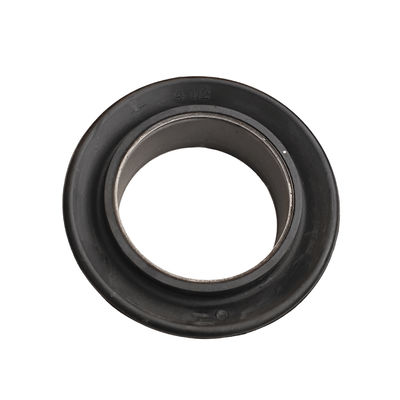

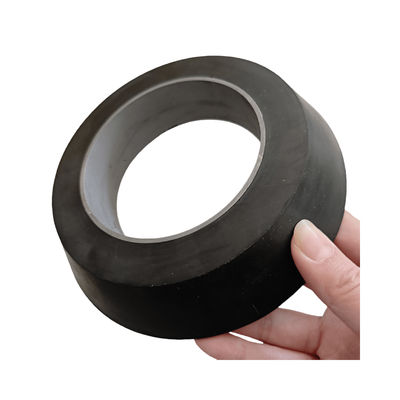

This V Series swab cup listing covers nominal 4-1/2, 5-1/2 and 7 inch size references. The upturned lip profile is described for swabbing fluids with suspended sand. Select the cup outside diameter, central bore and support configuration against the mandrel and actual well bore.
For an aluminum-core inquiry, specify the core material and dimensions on the order drawing. Steel-core and all-rubber variants need separate confirmation. Choose nitrile or a specified Frac Fluid compound against fluid chemistry, temperature and abrasion; cup count and operating load follow the complete tool design.
| Normal size(In) |
OD(In/mm) |
ID(In/mm) |
Core and Description |
Weight(g) |
| 4 1/2 |
4.062/103.17 |
2.420/61.47 |
Steel Core Swab Cup |
137 |
| 5 1/2 |
4.970/126.24 |
2.920/74.17 |
Steel Core Swab Cup |
320 |
| 7 |
6.475/164.47 |
3.545/90.04 |
Steel Core Swab Cup |
560 |
Our Swab Cups are produced from a newly developed rubber in the popular Guiberson* profile in either a nitrile or Frac Fluid compound. These cups can also be produced in other specified materials. Confirm the selected compound, dimensional tolerances and service requirements for each ordered cup.
ISO 9001 Quality Management:
Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

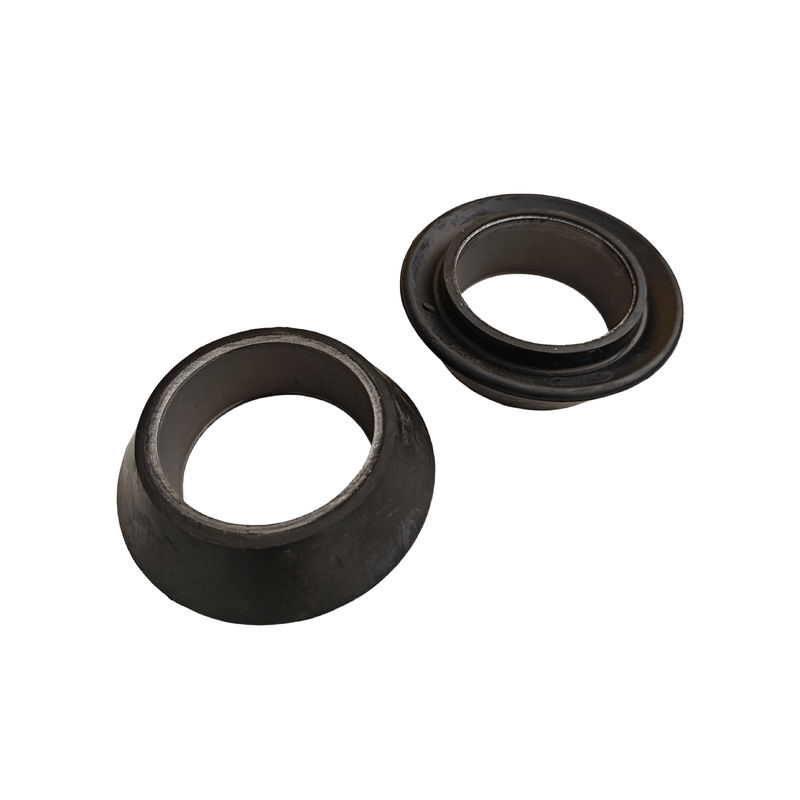

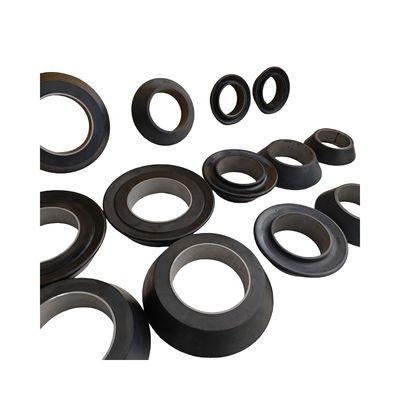

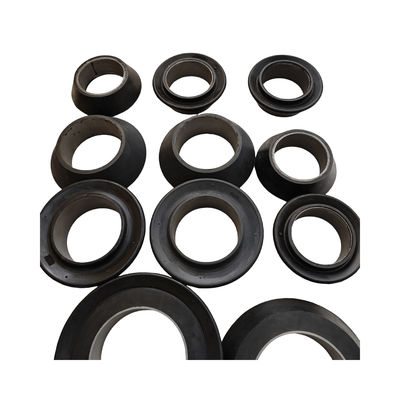

Available types of Swab cups:
TA style:
TA is a separate medium-load style built around a steel or aluminum bushing. Confirm tubing dimensions, support geometry and compound for the requested TA part; its construction should not be substituted for a V style solely on nominal size.
V style:
The V style range includes light-duty and heavy-duty descriptions with upturned lips that can invert under excessive loading. Match the cup arrangement to the tool maker's operating procedure. The dimensional table on this page lists steel-core variants, so confirm the actual core and bore rather than assuming every V cup is all-rubber.
TUF style:
The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style:
The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
| Environment |
oil, gas, gas condensate |
| Available Material |
FKM, , HNBR and nitrile rubber with or without Brass or Steel |
