Product Description:
Shanghai Qinuo Industry Co.,Ltd. provides V type, MV type, TA type Rubber Swab Cup.
These various types of swab cups are designed to meet different well conditions, ensuring reliable performance under
various operational circumstances.

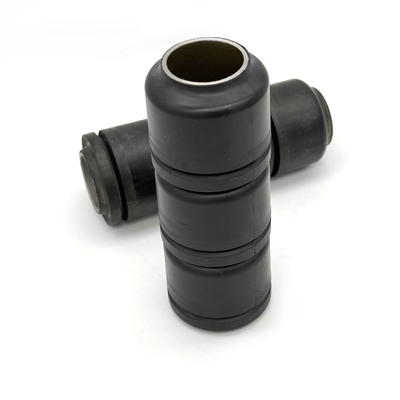

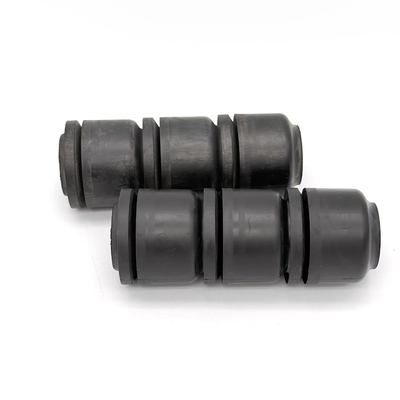

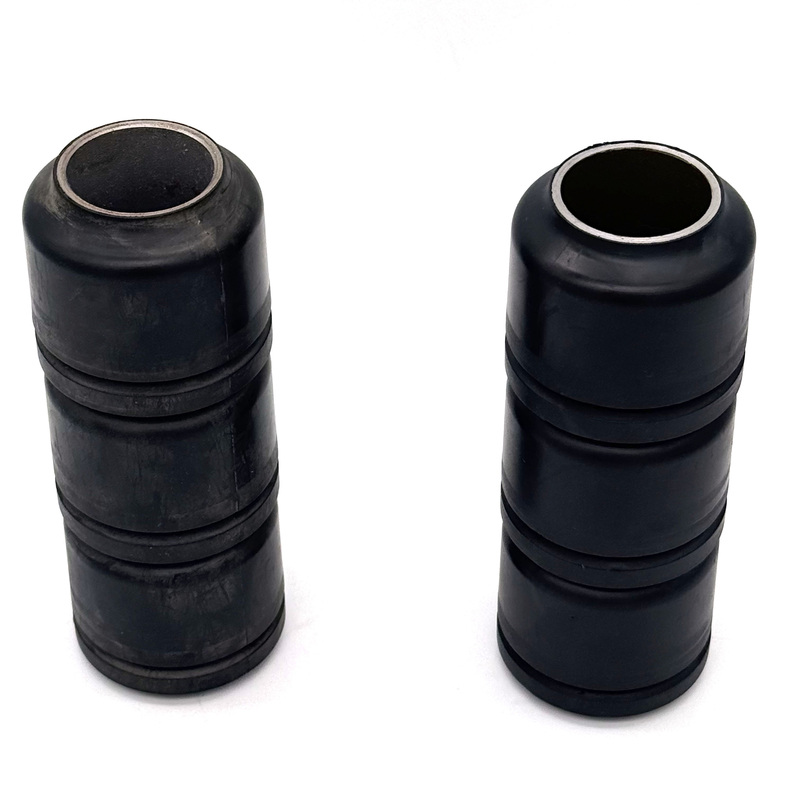

2" TA Type Swab Cup
TA Style is a medium load Swab Cup built around a steel or aluminum bushing for use with a confirmed tubing or drill-pipe and mandrel fit. When under load, it will compress to form a solid rubber mass to support fluid lifting; performance depends on load and tubing condition. Rubber compounds are selected against the well fluid, temperature and cycling duty. For frac-fluid enquiries, provide the fluid composition and sand content for compatibility review.
Specifications:
- Product Name: Swab Cup
- Type: TA Type
- Sample: Available
- Pressure Rating: By approved tool configuration and actual well duty
- Custom: Available OEM/ODM
- Original: Shanghai China
Available Size: 2", 2 7/8", 3 1/2"
2-Inch TA Swab Cup: Bushing Choice and Core Dimensions
Bushing specification: Confirm steel or aluminum construction, cup bore, core length and retaining features against the mandrel drawing. Specify the required construction rather than assuming both options fit the same tool.
Sealing fit: Provide tubing inside diameter, restrictions and the removed cup dimensions. The nominal 2-inch designation must be matched to the finished sealing profile.
Operating duty: State fluid lift, sand content, fluid composition and temperature. Review compound selection and medium-load suitability before ordering replacement cups.
Technical Parameters:
| Available sizes |
2", 2 7/8", 3 1/2" or custom size |
| Available materials |
NR NBR HNBR FKM |
| Available Types |
TA focus; MV and V profiles reviewed separately |
| Feature |
Rubber sealing body around a confirmed bushing
Compound and temperature duty confirmed with enquiry
|
| Application |
Oil Industry, Oil well swabbing operations, Downhole Swabbing |
| Hardness |
By approved compound specification |
| ODM/OEM |
Acceptable |
Applications:
The Royal Way TA Type Swab Cup is designed for use in oil and gas fields.
Application of the Swab cup:
1. Medium-load TA swabbing with confirmed lift requirements
2. For wells with suspended sands (solids) or swabbing of frac fluids
3. Tubing condition, depth and restrictions reviewed for the intended run
Packing and Shipping:
Product Packaging:
- 40*40*40cm Carton Packing. Cartons on pallet if necessary.
Shipping:
- Ships within 7-15 business days
