Product Description:
The 2-inch TA type swab cup is a replaceable rubber sealing component for well-fluid lifting. Match the cup profile and core connection to the specified mandrel and bore. TA, V and MV are separate type references; approve the actual TA drawing and compound for this replacement order.

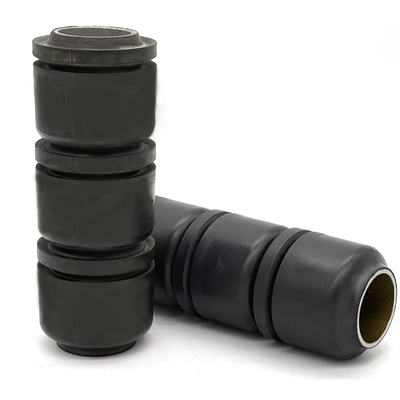

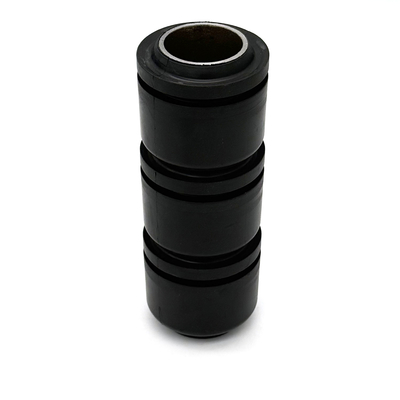

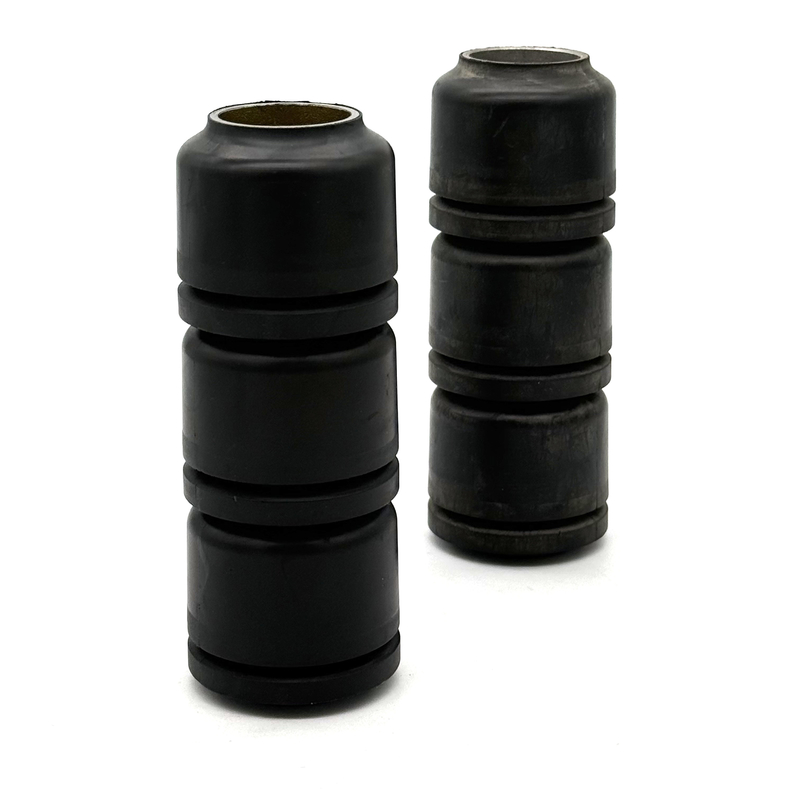

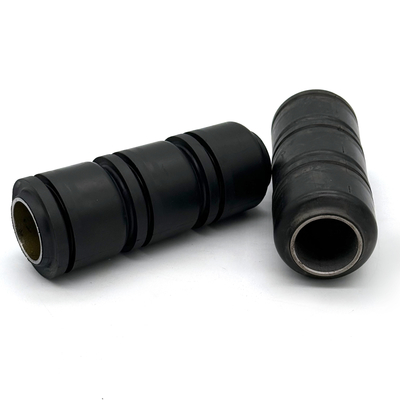

2" TA Type Swab Cup
Specifications:
- Product Name: Swab Cup
- Type: TA Type
- Sample: Available
- Pressure requirement: Confirm for the complete cup, mandrel and operating conditions
- Custom: Available OEM/ODM
- Original: Shanghai China
Available Size: 2", 2 7/8", 3 1/2"
2-Inch TA Type Swab Cup - Seal Profile and Replacement Approval
For sealing-fit review, provide the 2-inch nominal-size basis, measured bore and the cup outside diameter, lip profile, height and centre bore. Compare the finished profile with the existing tool drawing before approving the replacement.
Describe any observed leakage, uneven lip wear, cuts or core movement on the removed cup. Include the load, stroke conditions and tubing condition so the replacement specification can be reviewed alongside the assembly and operating duty.
Specify the well-fluid formulation, oil additives and temperature for compound selection. Retain approved sample dimensions, hardness and core details for repeat supply; the same type and nominal size should not be used as substitutes for those specifications.
Technical Parameters:
| Available sizes |
2", 2 7/8", 3 1/2" or custom size |
| Available materials |
NR, NBR, HNBR or FKM options; specify and approve the compound |
| Available Types |
TA for this listing; MV and V are separate cup types |
| Feature |
Rubber compound and metal-core construction by approved specification
Fluid and temperature suitability reviewed for the selected compound
|
| Application |
Oil Industry, Oil well swabbing operations, Downhole Swabbing |
| Hardness |
Specified compound hardness according to approved drawing |
| ODM/OEM |
Acceptable |
Applications:
The Royal Way TA Type Swab Cup is designed for use in oil and gas fields.
Application of the Swab cup:
1. Specify expected lifting load and the TA cup arrangement
2. Review solids and fluid composition for the selected rubber compound
3. Include bore measurements and surface condition in the enquiry
Packing and Shipping:
Product Packaging:
- 40*40*40cm Carton Packing. Cartons on pallet if necessary.
Shipping:
- Ships within 7-15 business days
