Product Description:
This 2-inch TA type rubber swab cup is offered as a replacement component for well-servicing swab assemblies. Specify the mandrel drawing, actual bore and operating duty for rig maintenance orders. The listed 2 7/8-inch and 3 1/2-inch alternatives require their own dimensional approval; TA, V and MV type references do not establish interchangeable fit.

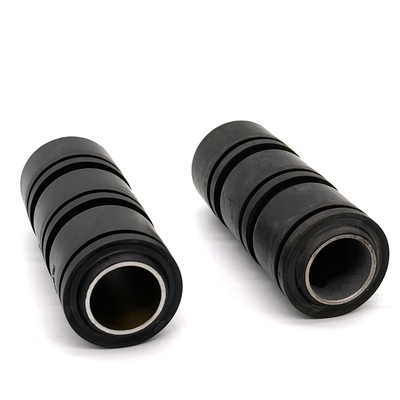

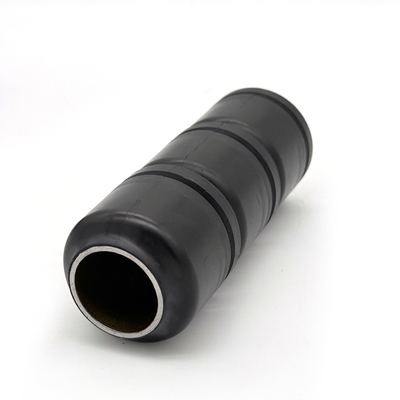

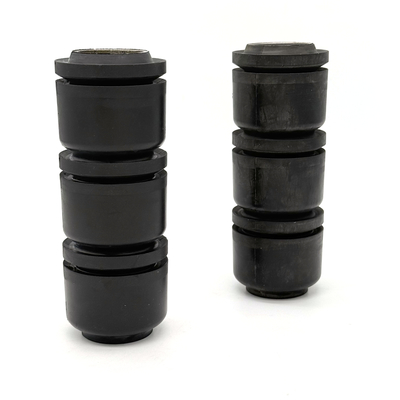

2" TA Type Swab Cup
Specifications:
- Product Name: Swab Cup
- Type: TA Type
- Sample: Available
- Pressure requirement: Confirm for the complete cup, mandrel and operating conditions
- Custom: Available OEM/ODM
- Original: Shanghai China
Available Size: 2", 2 7/8", 3 1/2"
2-Inch TA Rubber Swab Cup - Rig Maintenance Replacement Schedule
For rig spare-parts purchasing, list each TA cup size, mandrel reference and quantity as a separate item. Include the approved cup drawing and compound reference so nominal size, core construction and rubber grade remain linked throughout the order.
Record the service conditions and removed-cup observations when planning replacements. Provide lifting load, operating cycle, fluid formulation and temperature, together with lip wear or core damage photographs where available.
Agree inspection requirements and identification for each size in the shipment. Confirm sample approval and delivery requirements with the quotation; avoid substituting a different cup profile or core construction solely because it carries the same nominal size.
Technical Parameters:
| Available sizes |
2", 2 7/8", 3 1/2" or custom size |
| Available materials |
NR, NBR, HNBR or FKM options; specify and approve the compound |
| Available Types |
TA for this listing; MV and V are separate cup types |
| Feature |
Rubber compound and metal-core construction by approved specification
Fluid and temperature suitability reviewed for the selected compound
|
| Application |
Oil Industry, Oil well swabbing operations, Downhole Swabbing |
| Hardness |
Specified compound hardness according to approved drawing |
| ODM/OEM |
Acceptable |
Applications:
The Royal Way TA Type Swab Cup is designed for use in oil and gas fields.
Application of the Swab cup:
1. Specify lifting load and cup arrangement for the maintenance assembly
2. Include fluid composition and solids exposure for compound selection
3. Confirm bore condition and well geometry for the intended operation
Packing and Shipping:
Product Packaging:
- 40*40*40cm Carton Packing. Cartons on pallet if necessary.
Shipping:
- Ships within 7-15 business days
