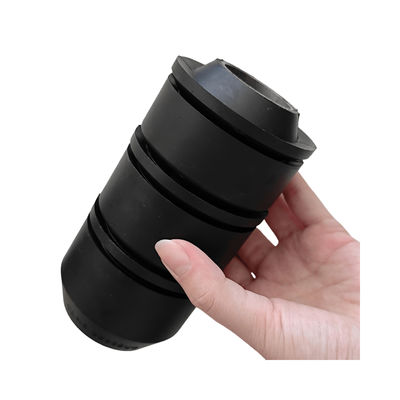

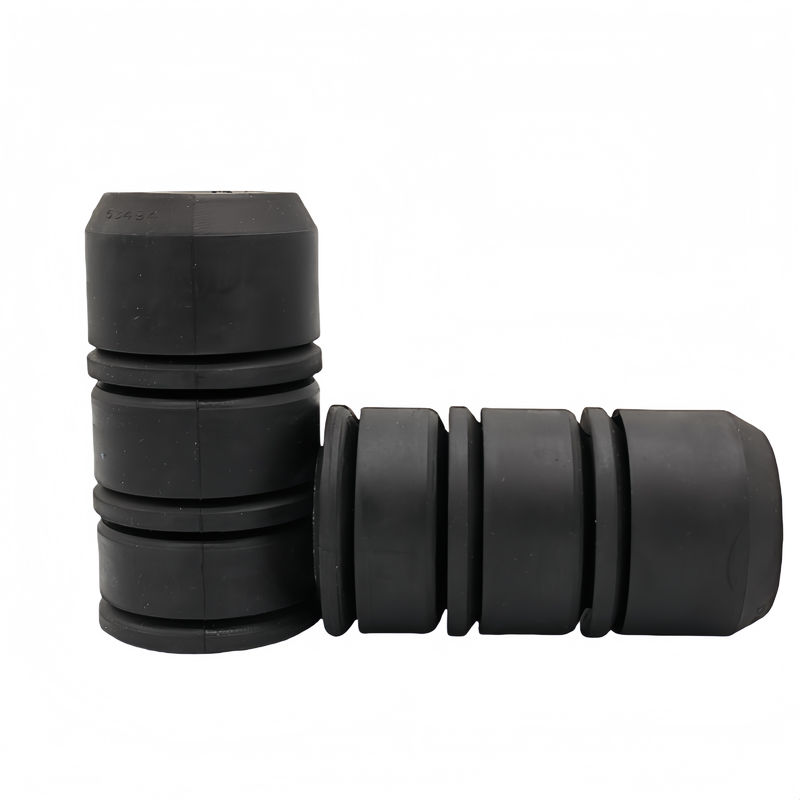

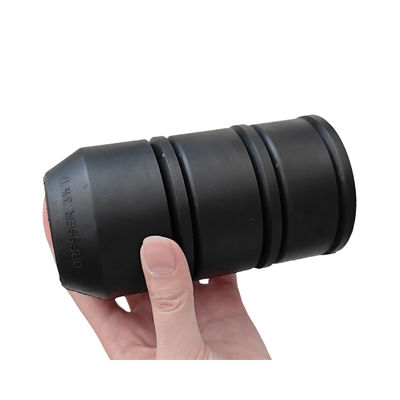

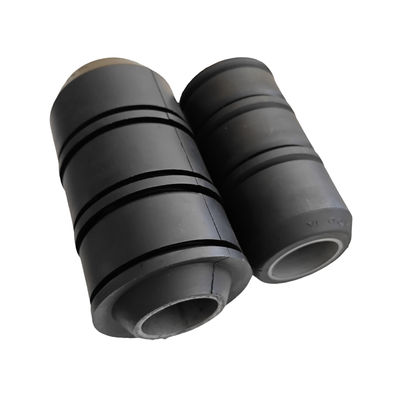

Durable Nitrile Rubber TA Type Swab Cup For Downhole Pumping

Product Description:

This nitrile rubber TA type swab cup is offered for well-servicing fluid-lifting assemblies. The existing 2 7/8-inch and 3 1/2-inch size references require confirmation against the tubing bore and mandrel drawing. Specify the NBR compound, core construction and cup profile for the replacement; polyurethane and other polymers are separate material options requiring their own approval.

Used in well servicing, SHQN swab cups remove fluid from the wellbore to enhance production.

Specifications:

• Product Name: Swab Cup
• Sample: Available
• Pressure requirement: Confirm for the complete swabbing assembly
• Custom: Available OEM/ODM
• Original: Shanghai China

Nitrile TA Type Swab Cup - Replacement Compound and Core Matching

For repeat NBR cup orders, provide the previous drawing revision, nominal hardness and compound reference where available. Include the produced-water, oil or treatment-fluid composition, cleaning chemicals and operating temperatures when reviewing a material change.

Compare the replacement core material, bore and retention features with the existing mandrel. Include cup height and lip dimensions; matching the nominal tubing size does not establish that two core constructions are interchangeable.

Record the removed cup condition, including lip wear, cuts or separation around the core, and send photographs with the service conditions. Use that information to agree the next replacement specification and inspection criteria rather than assuming a different rubber grade will resolve the cause.

Technical Parameters:

Applications:

The Royal Way TA Type Swab Cup is offered for oilfield swabbing with the specified tubing and mandrel assembly.

Application of the Swab cup:
1. Specify lifting load, cup count and operating cycle
2. Provide solids content and fluid formulation for wear and compatibility review
3. Confirm tubing bore, condition and well geometry for the proposed assembly

Packing and Shipping:

Product Packaging:

• 40*40*40cm Carton Packing. Cartons on pallet if necessary.

Shipping:

• Ships within 7-15 business days
