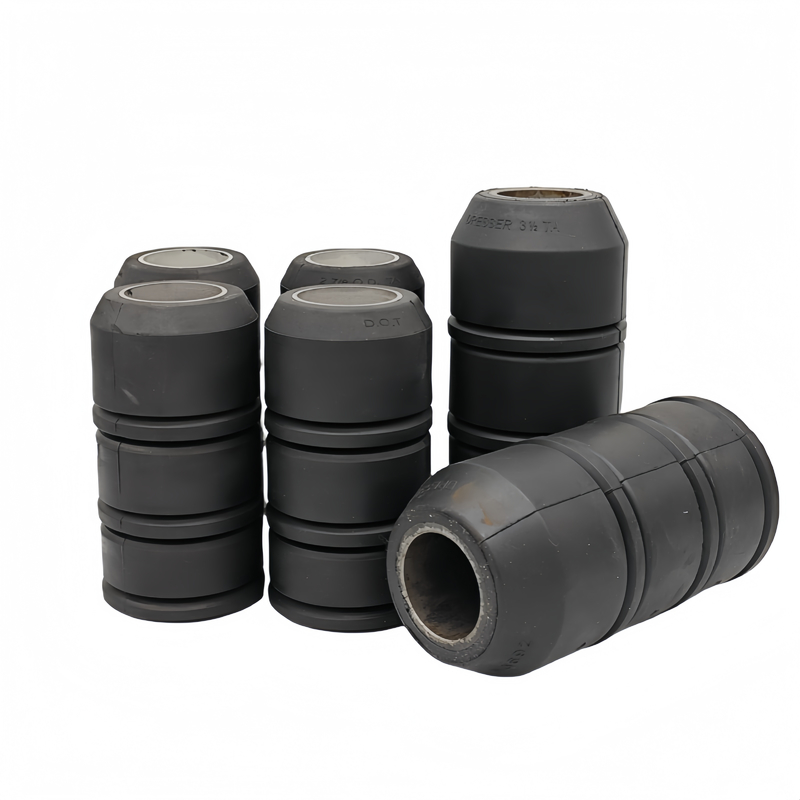

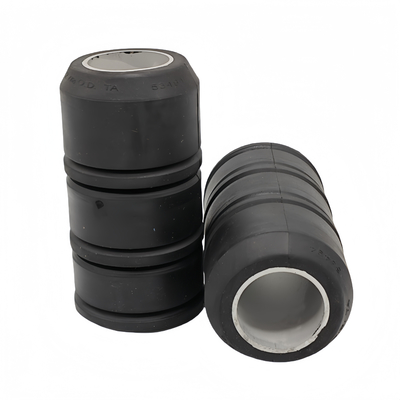

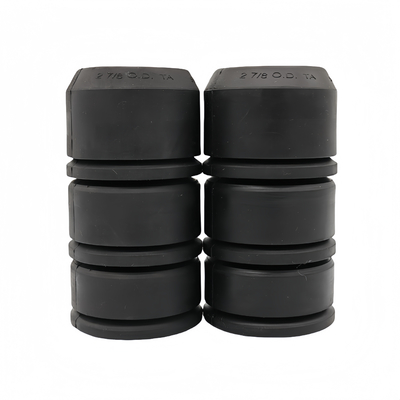

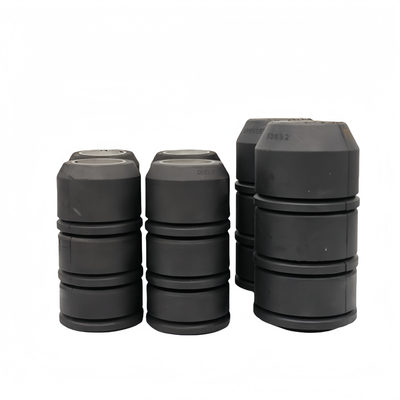

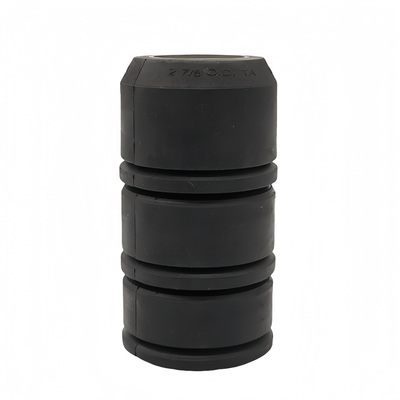

TA Type Swab Cup Description:
Rubber swab cups are essential components used in the oil and gas industry for well intervention and maintenance operations, particularly in swabbing processes. They serve the primary purpose of removing liquids from the wellbore to reduce hydrostatic pressure, enhancing well production and facilitating hydrocarbon flow.
TA Type Swab Cups: Tubing Reference and Mandrel Fit
This TA type swab cup is specified for 2-7/8 and 3-1/2 inch tubing references. Provide the tubing inside diameter and the cup drawing when ordering; nominal tubing size is not the finished cup diameter.
Confirm the mandrel diameter, mounting bore, cup height and retaining arrangement against the existing assembly. Include photographs and dimensions of an unworn cup if the original part reference is unavailable. Core material and rubber compound must match the selected configuration.
For a swabbing inquiry, include the fluid, temperature, expected lift load, sand content and any tubing restrictions. These conditions determine the suitable cup specification and replacement plan. Inspect the cup lips and mounting area before installation and follow the equipment operating procedure.
Specifications:
- Product Name: Swab Cup
- Sample: Available
- Pressure limit: Confirm for the complete swab assembly and operating procedure
- Custom: Available OEM/ODM
- Tubing references: 2-7/8 and 3-1/2 inch; confirm actual bore and cup dimensions
- Original: Shanghai China
Technical Parameters:
|
Material
|
Rubber with metal core; compound and core configuration to be confirmed for the selected TA cup |
|
Size
|
2-7/8 and 3-1/2 inch tubing references; confirm actual cup OD, bore and height |
|
Feature
|
Rubber compound selected for fluid, temperature and wear conditions |
|
Color
|
Black or others |
|
Other Service
|
Customized OEM products |
Applications:
The Royal Way TA Type Swab Cup is used for liquid-lifting swabbing operations in oil and gas wells.
Application of the Swab cup:
1. Confirm the permitted lift load for the selected cup and swab assembly
2. Review sand content and fluid compatibility before selecting the rubber compound
3. Check tubing bore, restrictions and surface condition for the planned swab run
Packing and Shipping:
Product Packaging:
- Packing quantity per carton confirmed with the order
- Protective wrapping specified according to the packing plan
- Carton dimensions depend on cup size and order quantity
- Gross carton weight confirmed after packing
Shipping:
- Dispatch schedule confirmed with the order
- Shipping method selected according to destination and package
- Shipping weight confirmed from the final packed goods
FAQ:
1. Why Choose Qinuo industry?
We provide them with one-stop service from R & D to production to satisfy their customization needs.
We are based in the most big city Shanghai, which have two internation airports and two deepwater ports, we can ship the goods out at anytime while some inland suppliers need take a more time.
2. What are the advantages of choosing Qinuo Industry?
a. Product quality assurance, delivery guarantee, good after-sales service
b. Cost-effective, fast development efficiency, professional operation with integrity
c. Qinuo Industry will conduct all testing analysis and then work out testing standards to reduce quality standard dispute between customers and manufacturers.
d. Lean production management mode.
e. Help customers develop and design new products.
f. Has rich experience in the design and processing of rubber products.
g. Qinuo Industry is a hightech enterprise in China with domestic and international invention patents technology and intellectual property.
