Product Introduction

Rubber O-rings for temperature and chemical exposure enquiries require a compound selected for the actual service. NBR, HNBR, FKM, EPDM and silicone are material families with different grades and limitations. This page supports compound and size selection; a material name alone does not establish an approved operating envelope.

Provide the minimum and maximum operating temperatures, exposure duration and exact chemical composition, including concentration and cleaning cycles. Confirm compatibility for the specified compound and seal arrangement before use. General references to extreme temperatures or chemical resistance are not universal ratings for all O-rings shown.

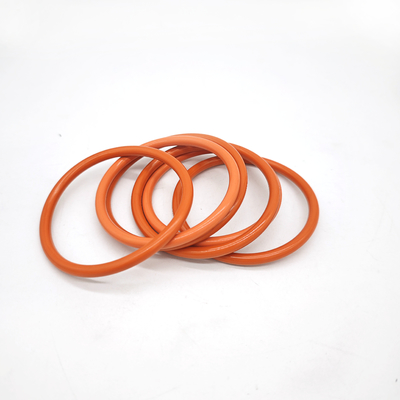

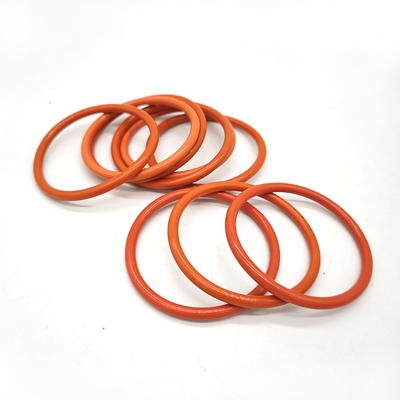

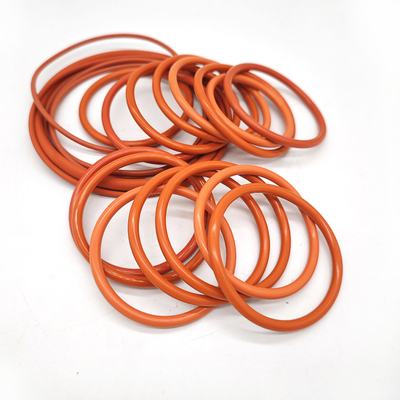

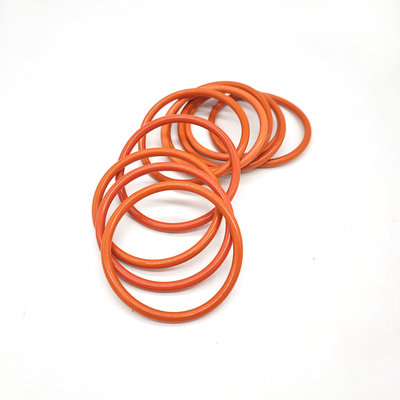

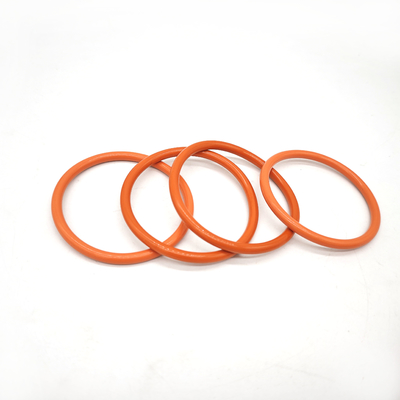

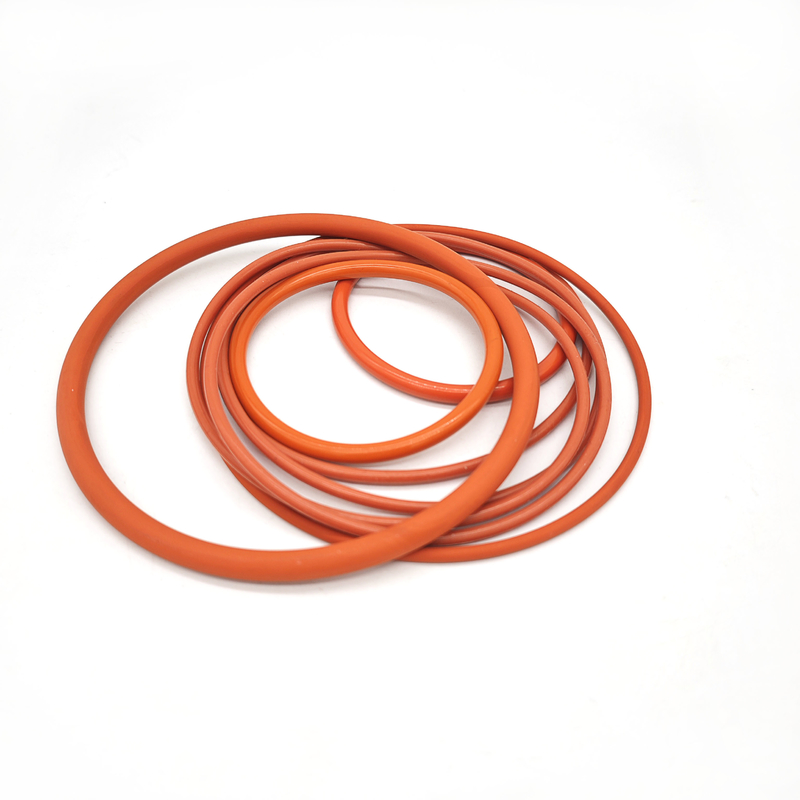

Product Photos

Product Description

O-Ring Compound Selection for Temperature and Chemical Exposure

Describe both normal operation and short temperature excursions, with their duration. Include the chemical name, mixture composition and concentration rather than describing the medium only as oil, gas or chemicals.

State whether exposure is continuous, intermittent or part of a cleaning cycle. Include pressure, seal motion, inside diameter, cross-section and groove dimensions so the material and fit can be reviewed together.

For demanding service, agree the compound specification and any required compatibility testing before ordering. ISO 9001 refers to the manufacturing quality management system and does not establish a temperature or chemical rating for an individual seal.

	Size: inside diameter (ID) × cross-section (CS), in mm; groove and tolerances to be confirmed
	Material options: NBR, HNBR, FKM, EPDM or silicone; specify compound for actual exposure
	Extra  Service:Customized Size/Hardness/Color OEM/ODM Are Acceptable. Custom Packing Also Available.


Other Shape

Material

FEPM or FFKM (compound availability to be confirmed)                                                         Neoprene Rubber(CR)

Acrylate Rubber(ACM)                                                        Nitrile Rubber (Buna-N/NBR)

Ethylene-propylene (EPR,EPDM)                                       Polyurethane(PU)

Fluorocarbon (FKM/FPM)                                                    Silicone Rubber(VMQ)

Fluorosilicone(FVMQ)                                                          Styrene-butadiene Rubber (SBR)

Hydrogenated Nitrile (HNBR)                                               Polytetrafluoroethylene(PTFE)

Package

Related Products

Company Profile


FAQ

Q: Can I get some samples?
A: Certainly, samples are available. We offer 1-5 samples or 1 pack of samples for free. Please note that shipping
    costs are not included. Alternatively, we can arrange shipping using your courier account.

Q: What is the shipping time of samples?
A: Usually 3-5 Day.

Q: Can I custom product and print my logo on the product or packaging?
A: Yes, we offer customization services. For details, please contact us.

Q: Can you manage the shipment of products?
A: Absolutely, we can arrange different shipping methods based on the final packaging of the goods, including
    express, air, or sea shipping.

Q: Can you send the goods to an Amazon warehouse?
A: Certainly, just provide us with the exact address, and we will arrange the shipment accordingly.

Q: What payment methods do you accept?
A: Please confirm the available payment method with the quotation before placing an order.

Q: What is the lead time?
A: For stock goods, the lead time is generally within 15 days, depending on the quantity. For custom orders, production takes approximately 12-15 days, depending on the packaging and quantity.
