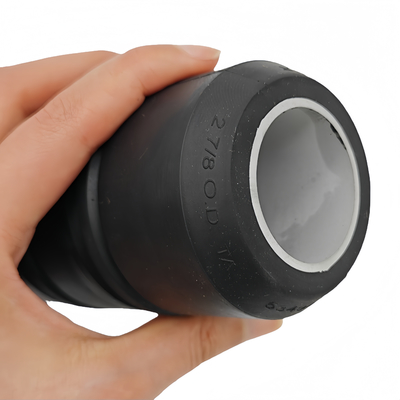

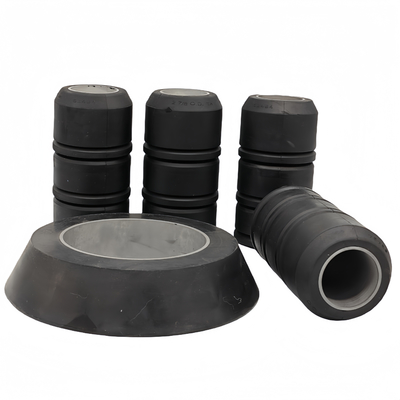

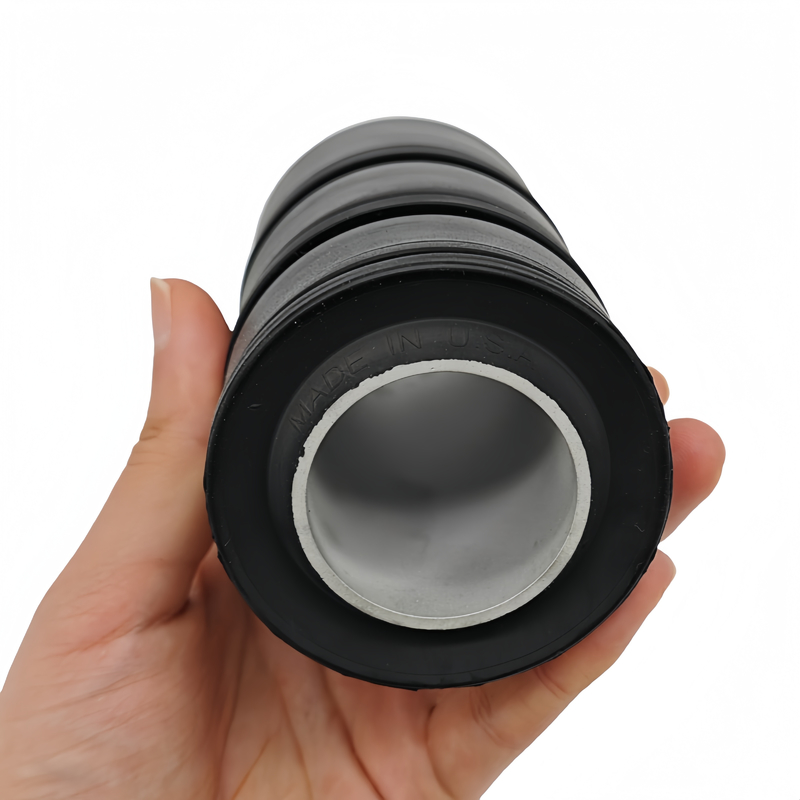

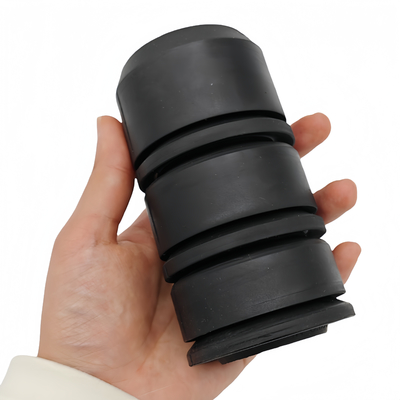

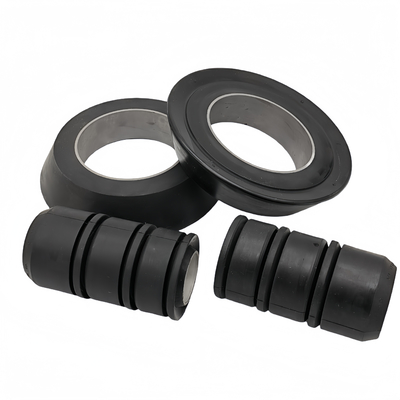

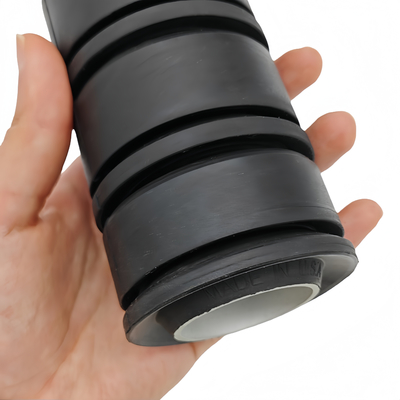

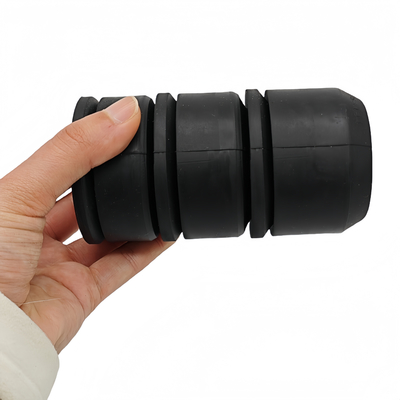

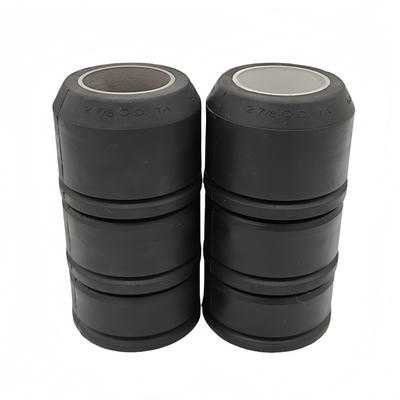

Iron-Core Rubber Swab Cups — Profile and Fluid-Lifting Assembly Selection
Product Description
Swab Cup Assembly Orders: Separate Profile, Core and Size References
| Selection detail |
Order specification |
| Profile |
Specify TA, V or MV and approved drawing; related photographs do not define interchangeability. |
| Size |
The old table retains nominal references. Clarify tubing reference versus cup diameter and provide actual bore, cup OD, ID and height. |
| Core |
Confirm iron or aluminium version, mandrel bore and retaining arrangement. |
| Compound |
Specify fluid, solids, temperature, rubber grade and hardness value with Shore scale. |
| Weight and packing |
The old 200–900 g range covers different references; confirm net weight for each approved part before calculating shipment. |
Follow the original tool operating procedure. ISO 9001 applies to quality management. Working load and pressure limits must be defined for the complete assembly.
A swab cup is a component of a well-fluid lifting assembly. Select the actual TA, V or MV profile, working bore and mandrel fit for the intended operation. A cup does not replace well-control equipment or establish a complete wellbore-cleaning procedure.
Royal Way supplies rubber swab cups with specified metal core or bushing construction. Nitrile or other compounds require selection against the well fluid, temperature and solids. Approve the profile drawing, dimensions and compound for the actual assembly.
TA, V and MV are separate profile enquiries. Confirm iron or aluminium construction for each selected part; do not assume these cores are interchangeable. Custom dimensions, compound, colour and hardness follow an agreed drawing and sample specification.
| Type |
Available size |
| V type |
4-1/2'' 4-3/4'' 5-1/2'' 5-3/4'' 7'' |
| TA type |
2'' 2-1/2'' 2-7/8'' 3-1/2'' |
| MV type |
2-7/8'' |
Packaging & Shipping
Company Profile
Since its establishment in 2013, Shanghai Qinuo has been engaged in the oil and gas rubber accessories industry. We have our own foreign trade sales team, independent factories and designers, and multiple precision testing equipment. We are well aware of the importance of oil accessories, so we have been constantly studying, learning, and making progress to gain the support and trust of customers with better products.
So far, we have our own oil accessories brand "Royal Way", and have developed more than 10 hot-selling products, and our products are exported to North America, Europe, the Middle East and other countries. We have many old customers and high repurchasing rate.
Factory Profile
FAQ
Q1. Are you a factory or trading company?
Our manufacturing facilities are in Nantong, Jiangsu. Shipping arrangements and lead time are confirmed for the order.
Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.
Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.
Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Why choose to cooperate with you? What's your advantage?
1). Agree the selected cup profile, core material, dimensions, compound and inspection criteria with the order. 2). Confirm sample availability, quantity and delivery schedule for the selected version with the quotation. 3). We can provide various size and colors according to customers' requirements. 4). Specify sample fit and any required application-test criteria for the actual bore, fluid and operating load. Confirm net weight for the selected cup and core configuration. 5). Updated product design. 6). ISO 9001 quality management; product acceptance follows the agreed drawing and inspection requirements. 7). We win by the high quality and then have a long-term business relationship.
Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.
So if you have any questions for plastic&rubber parts, please contact us! Looking forward to cooperate with you!
