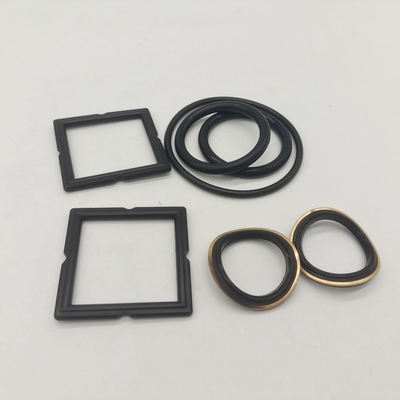

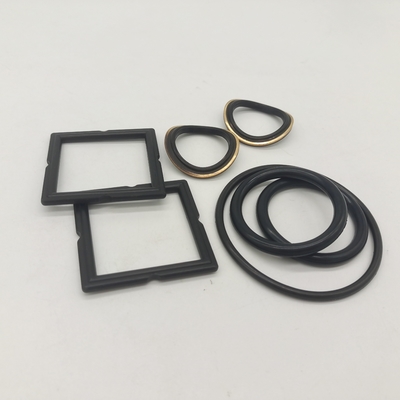

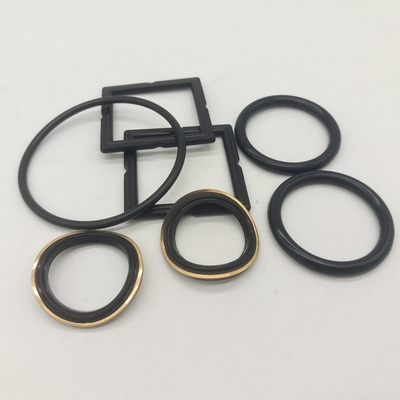

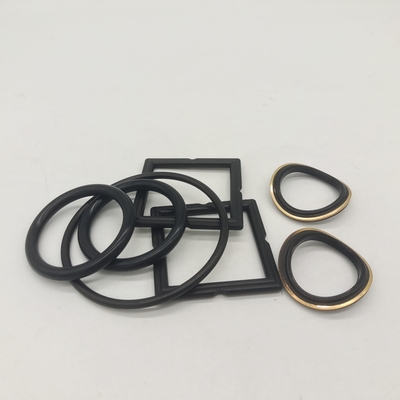

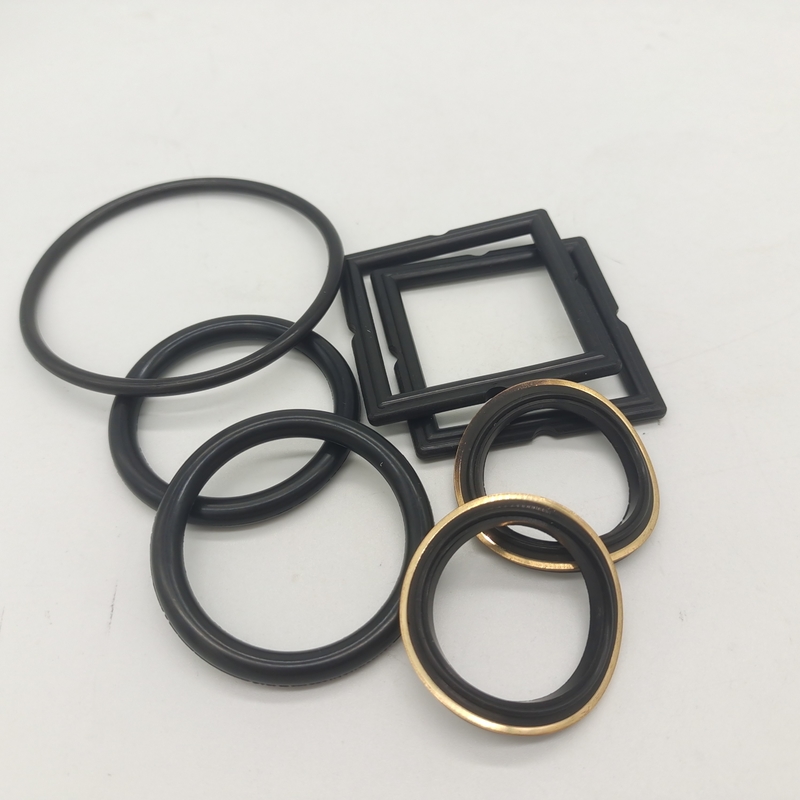

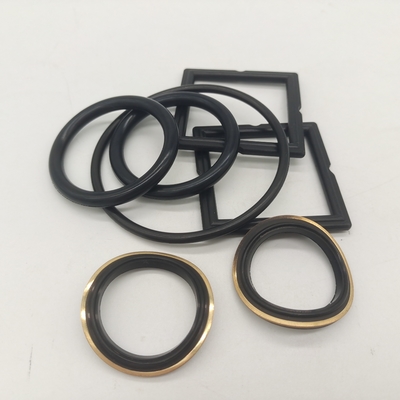

3" Black Plug Valve Elastomer Set Soft Seal With Brass

Product introduction

A Plug Valve Soft Kit, also referred to as a Minor Repair Kit, is a collection of essential soft components used for the maintenance and repair of plug valves, particularly in the oil and gas industry. These kits are designed to replace worn-out or damaged parts, supporting maintenance of a serviceable valve when the kit matches the manufacturer, model and revision.

FIG 1502 Plug Valve Minor Kit: Match Valve Size and Component List

This listing covers a FIG 1502 plug valve elastomer set for minor maintenance. Specify the required nominal valve size with the original part reference. Confirm the original valve manufacturer, model, revision and kit part number. The 1-inch, 2-inch and 3-inch references in the data table describe separate configurations; confirm the supplied size and component list for each order.

Request a component list showing each seal, gasket and O-ring by reference and quantity. Confirm whether metal-backed seals are included, their brass or stainless grade, and the backing dimensions. Generic kit photographs and a FIG 1502 reference do not prove interchangeability between different valve designs.

Select the NBR, HNBR or FKM compound and hardness to the actual fluid, temperature and service conditions. H2S and gas decompression requirements need specific compound qualification. Retain component identification during unpacking so similarly sized seals are installed in the correct locations.

A minor kit replaces the specified soft components. Inspect the plug, body, seal pockets and other metal surfaces to the valve manufacturer maintenance procedure; damaged hardware may require additional repair or replacement. Follow the specified assembly, lubrication and testing procedure before return to service.

Components Included in a Soft Kit

Key Features

•
  Material Durability: The existing product data identifies NBR, HNBR and FKM options, with brass or stainless backing where specified. Confirm each component material against the kit bill of materials and the actual fluid conditions.

•



  Sealing Performance: Sealing depends on the matched components, valve condition and installation. Confirm the complete valve operating limits; the repair kit does not increase its rating.

  Ease of Maintenance: Simplifies repair processes, reducing downtime and operational costs.

•



  Compatibility: Match the exact manufacturer, valve model, size, revision and kit part number before ordering.

•



  Cost-Effective: Provides a cost-efficient solution for valve maintenance compared to full valve replacement.

Oilfield Plug Valve Seals products data sheet
