Royal Way FMC Type 2'' Fig 1502 Weco Plug Valve Elastomer Set Repair Kits accept custom

Royal Way 2-Inch Figure 1502 Weco / FMC-Type Plug Valve Elastomer Repair Set

Repeat Plug Valve Repair Orders: Match the Kit Code and Drawing Revision

For a repeat order of this 2-inch Figure 1502 plug valve elastomer set, identify the exact Weco / FMC-type valve and the previously approved parts list. A previous purchase description or nominal size alone is insufficient when the valve design or component specification has changed.

Keep separate kit codes for different valve models or revisions, even when both are described as 2-inch Figure 1502. Confirm the complete valve rating and repair procedure with the equipment documentation. This elastomer set has no independent pressure rating. Sour-gas and rapid gas decompression suitability require compound-specific qualification.

2-inch Figure 1502 repair set enquiries; Figure 602 and 3-inch variants require separate valve drawings

Oilfield Plug Valve Seals products data sheet

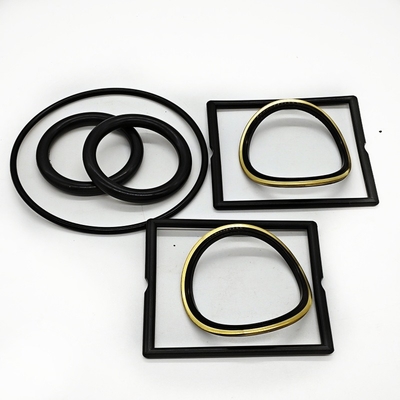

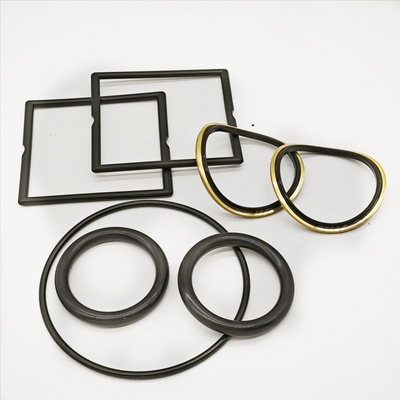

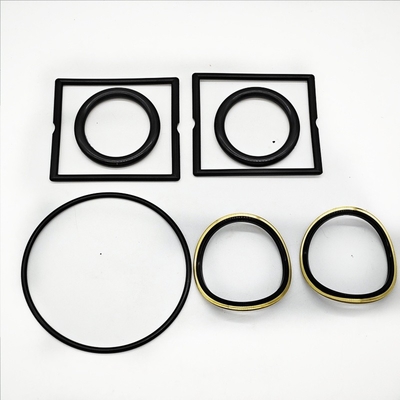

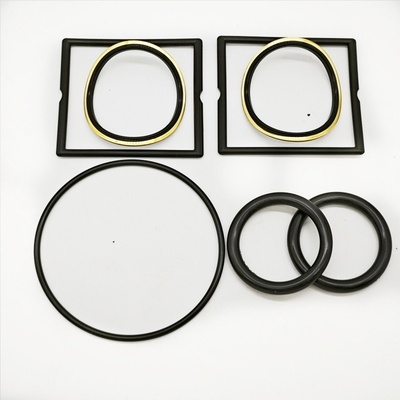

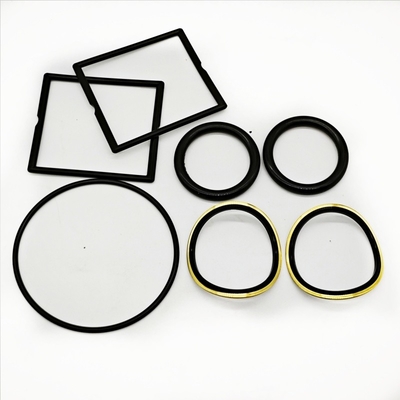

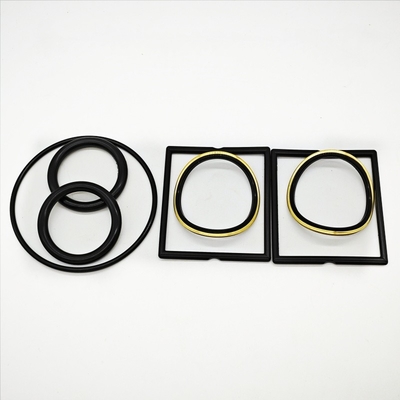

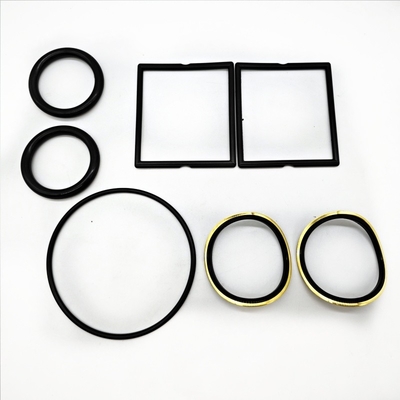

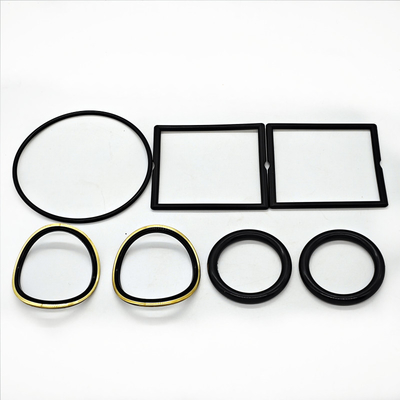

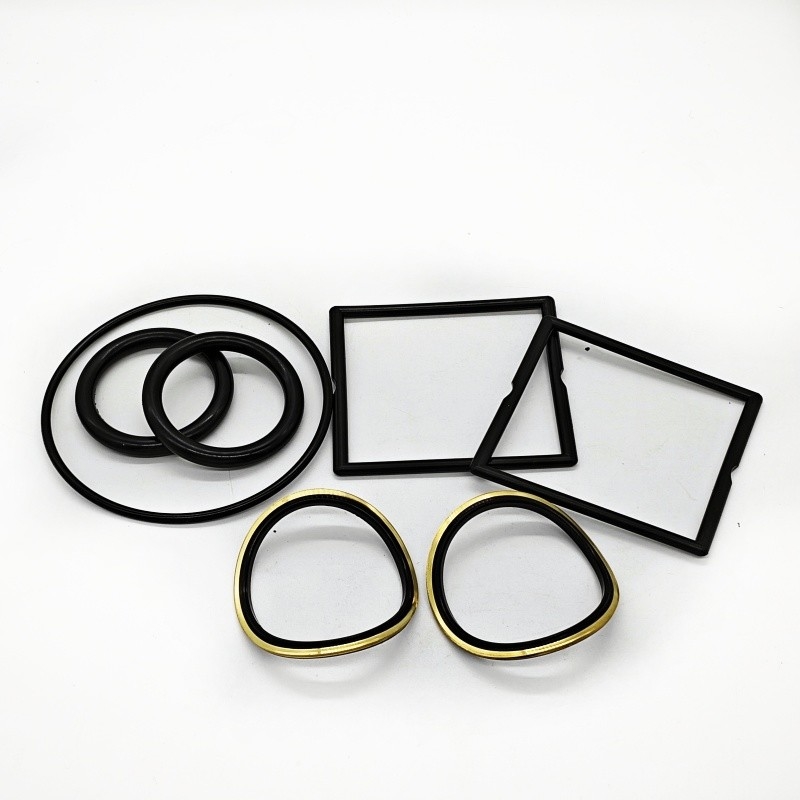

Plug valve repair component pictures for reference — confirm the supplied set against the drawing:

Other products from us:

Hammer union seals:

  Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

  Available size : 1", 1.5'',2", 3", 4" and 5"

Related hammer union seal materials include NBR, HNBR, FKM and PTFE. Select the exact grade and backup construction for the mating union, fluid and temperature. HNBR alone does not establish sour-gas suitability; compound-specific qualification is required.

  Related Hammer Union Seal References — Confirm Drawing and Availability:

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

MV Style, TA style and V styles.

Rubber o rings or kits

For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Rubber packer elements

Thread protectors

Flow tubes

Other parts by drawing.

Shanghai Qinuo Industry Co. Ltd

Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings and application requirements. Our ISO 9001 quality management supports specification review and inspection. For a plug valve repair set, send the valve reference, parts list, component dimensions and service conditions so the materials and fit can be confirmed.
