Product Description:

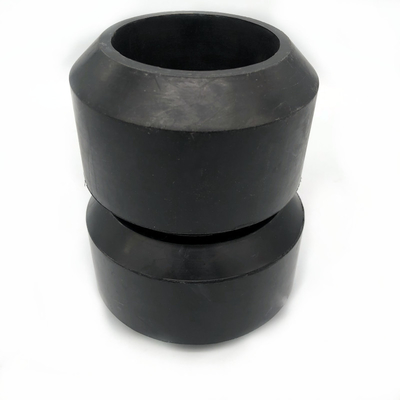

Custom Molded Rubber Packer Elements: Drawing and Sample Approval
Rubber packer elements form part of a specified downhole sealing assembly. Their finished geometry, compound and hardness must match the tool drawing, actual bore and setting requirements. Confirm the complete assembly performance for the intended pressure, temperature and fluid exposure.
For a custom molded element, provide inside diameter, outside diameter and height or thickness with tolerances. Include mounting and support geometry, drawing revision and material specification. A round packer element is not automatically an O-ring; confirm the cross-section on the drawing.
Approve the proposed geometry and compound before production. Define sample inspection, dimensional acceptance and required material or assembly tests so that the supplied parts can be checked against the agreed specification.
Features:
- Product Name: Rubber Packer Elements
- Shape: Round
- Type: Packer Element
- Package: Carton
- Color: Black Or Custom
- Chemical Resistance: Confirm compound compatibility with fluid and temperature
Drawing-specified rubber packer element for a defined oilfield tool
Technical Parameters:
|
Durability
|
Specify operating cycles and acceptance requirements |
| Original |
Shanghai China |
| Type |
Packer Element Rubber |
| Abrasion Resistance |
Compound-specific test and acceptance requirements |
| Shape |
Round |
| Environment |
Oil and Gas Field |
| Application |
Oilfield, Downhole |
| OEM ODM |
Available |
| Package |
Carton |
| Chemical Resistance |
Review exact fluid composition and operating temperature |
Applications:
The molded rubber packer element is supplied for the tool assembly identified on the approved drawing. Specify compound, nominal Shore A hardness, setting movement and differential-pressure requirements. Dimensions and material must be reviewed together for the intended downhole service.
Packing and Shipping:
Recommend Products
FAQ:
1. What is needed for drawing review?
Provide finished dimensions, tolerances, part revision and mating tool geometry.
Include the required compound, hardness, fluid composition and operating envelope.
2. What should be checked on a sample?
a. Part dimensions against the approved drawing.
b. Sealing surfaces and permitted molding defects.
c. Mounting, support and reinforcement details where used.
d. Compound and hardness against the specification.
e. Agreed inspection and test acceptance criteria.
3. Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
4. How is the production specification agreed?
Agree sample approval, dimensional inspection and required material or assembly tests before production. Define final inspection records and acceptance limits with the order.
5.Can I get some samples?
Sure, samples are available,3-10 samples are for free. Please note that only needs to pay for shipping cost.
6.Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
7.What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
8.Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
