Product Description:

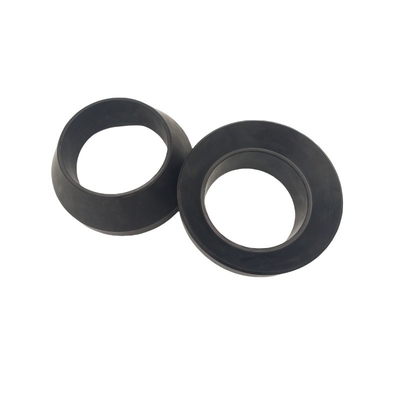

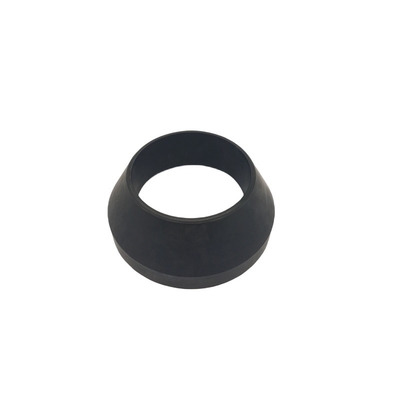

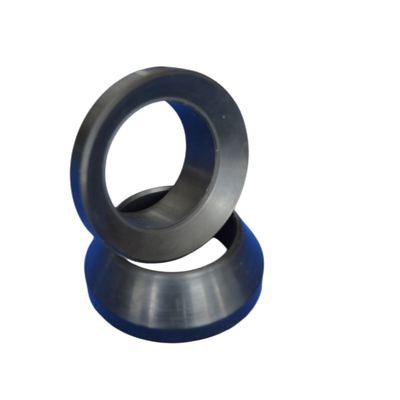

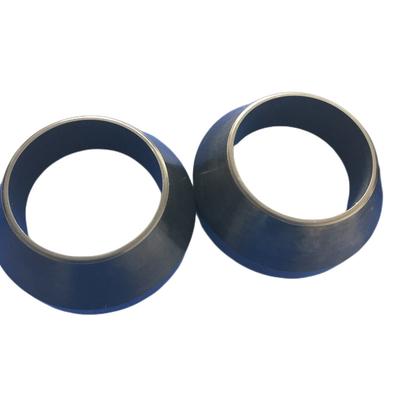

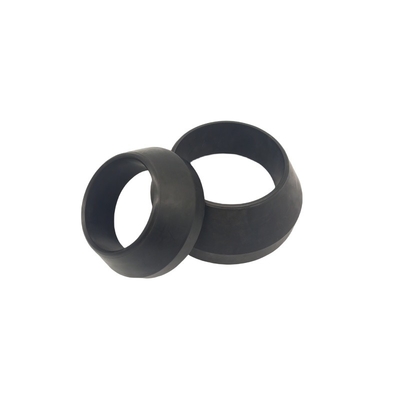

Drum-Profile Rubber Packer Elements for Specified Downhole Assemblies
This molded oil packer element uses a drum-profile geometry that must match the mating tool and bore. The elastomer forms the sealing section of a complete packer assembly; its dimensions, compound and setting movement determine suitability for the intended service.
Sealing Function and Assembly Fit
During setting, the assembly deforms the rubber element against the specified sealing surface. Confirm the mandrel, bore diameter, support components and permitted deformation on the tool drawing. Differential-pressure capability belongs to the qualified assembly and cannot be determined from rubber hardness alone.
Selecting Geometry and Compound
For replacement or custom production, provide the part revision, inside and outside diameters, axial height and profile dimensions. Select the compound and nominal Shore A hardness for the fluid composition, temperature and exposure time. Match these requirements to the approved sample and assembly tests.
Features:
Model NO.
Oil packer element
Cross-Section Shape
Drum profile; dimensions and cross-section by approved drawing
Hardness
40–95 Shore A options; specify compound, nominal hardness and tolerance
Working Temperature
Requested -40 to 160 °C range requires compound and assembly qualification
Service
OEM,ODM,Customized
Feature
Temperature suitability depends on the specified compound
Available Size
Finished dimensions and tolerances by drawing; confirm mold feasibility
Processing Services
Mold Compression
Transport Package
Cartons/Pallets
Applications:
Royal Way supplies molded rubber oil packer elements for specified oilfield tool assemblies. Drum-profile dimensions and mounting details must be confirmed before ordering a replacement. Carton or pallet packing is selected for the approved part and shipment.
Review the setting arrangement and sealing interface with the packer drawing. Specify the required differential pressure, setting travel and support geometry so that the element can be assessed as part of the complete assembly.
Inspect the rubber sealing surfaces for damage and check critical dimensions against the approved drawing. Where wear resistance is required, define the compound test and acceptance criteria for the actual operating conditions.
Send a drawing or representative sample with the tool model and revision. Include fluid composition, operating temperature, pressure requirements and nominal hardness to support a compatible replacement specification.
Packing and Shipping:
Recommend Products
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is Royal Way.
Q: Is a drum-profile packer element the same as an O-ring?
A: Confirm the cross-section and mounting geometry on the drawing. A drum-profile packer element must be matched to its specified assembly.
Q: Where is this product manufactured?
A: This product is manufactured in Shanghai, China.
Q: What are the dimensions of this product?
A: Provide inside diameter, outside diameter, axial height, profile dimensions and tolerances with the part revision. Confirm finished dimensions before production.
Q: What materials is this product made of?
A: Specify the elastomer compound and nominal hardness for the fluid and temperature exposure. Material selection and assembly qualification are required for the intended downhole service.
