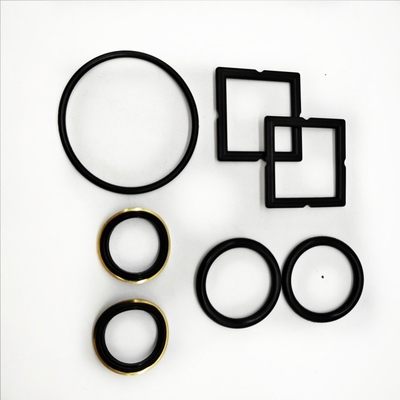

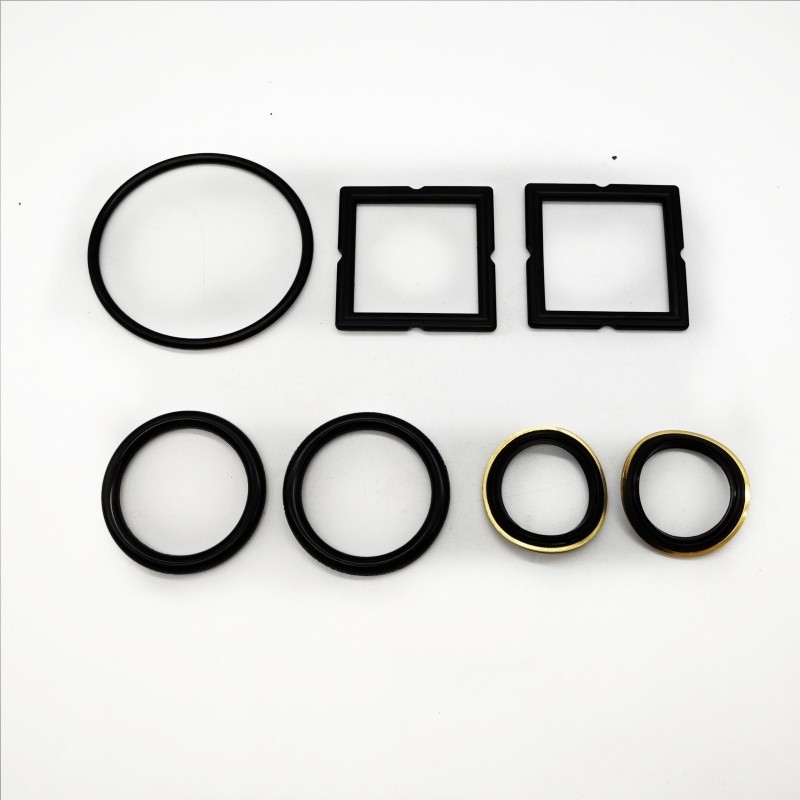

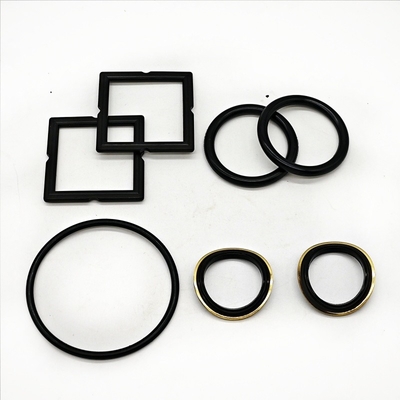

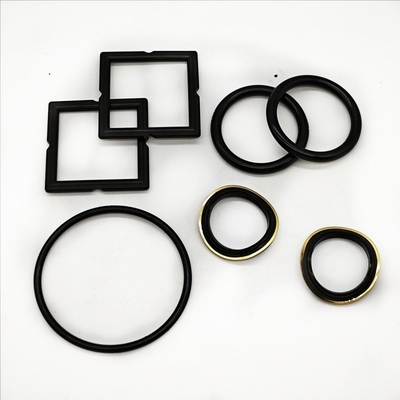

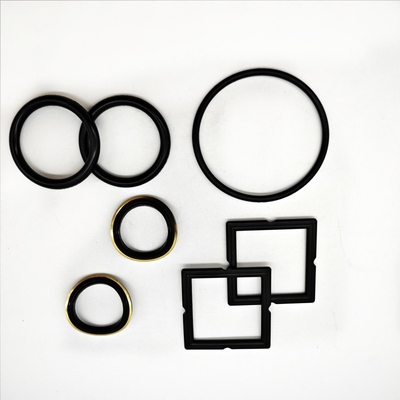

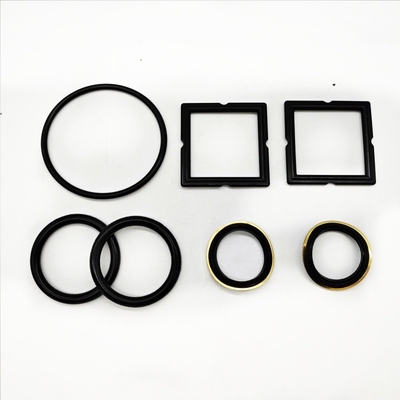

Oilfield Plug Valve Seals In NBR HNBR FKM Materials For Various Well Conditions

Oilfield Plug Valve Seals products data sheet

Other products

Hammer union seals:

• 1'' 1502, Buna/FKM/HSN
•
• 1-1/2'' 1502, Buna/FKM/HSN
•
• 2'' 607 style seal ring
•
• 2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
•
• 3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
•
• 4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
•
• 2 inch FIG 206 enquiry; O-ring dash number and groove dimensions to confirm
•
• 3 inch FIG 206 enquiry; O-ring dash number and groove dimensions to confirm
•
• 4 inch FIG 206 enquiry; O-ring dash number and groove dimensions to confirm

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

Rubber o rings or kits

For AS568 O-rings, send dash numbers, compound, hardness and quantity for size confirmation.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Our Company

For plug valve seal selection, provide fluid formulation, additives, normal and peak temperatures, pressure cycles and solids exposure. Identify the valve manufacturer, series and figure designation with the component list.

Select NBR, HNBR or FKM for each seal position using the actual service conditions. Include backing metal grade and geometry for backed parts. Gas service, sour fluids and decompression duty require separate compound-specific qualification where applicable.


Our ISO 9001 quality management system supports production and inspection against agreed component requirements.
Send dimensioned seal drawings and required quantities for a quotation. Specify requested material documents, dimensional checks and any service qualification tests before ordering.
