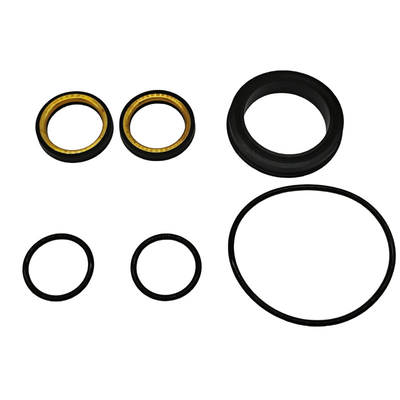

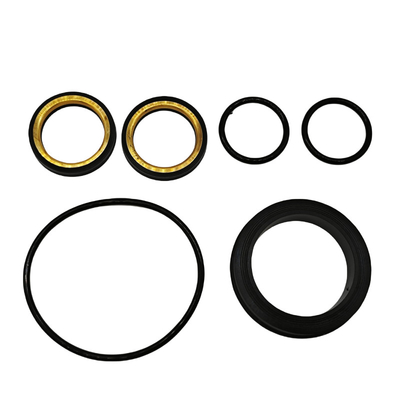

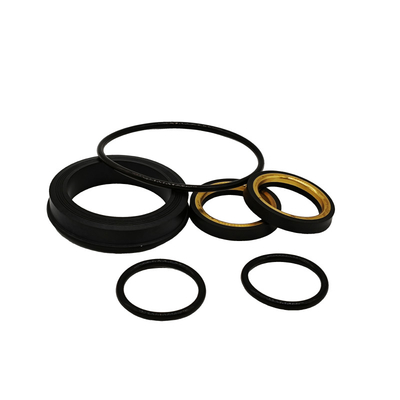

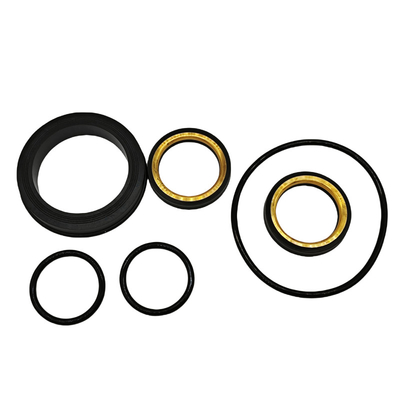

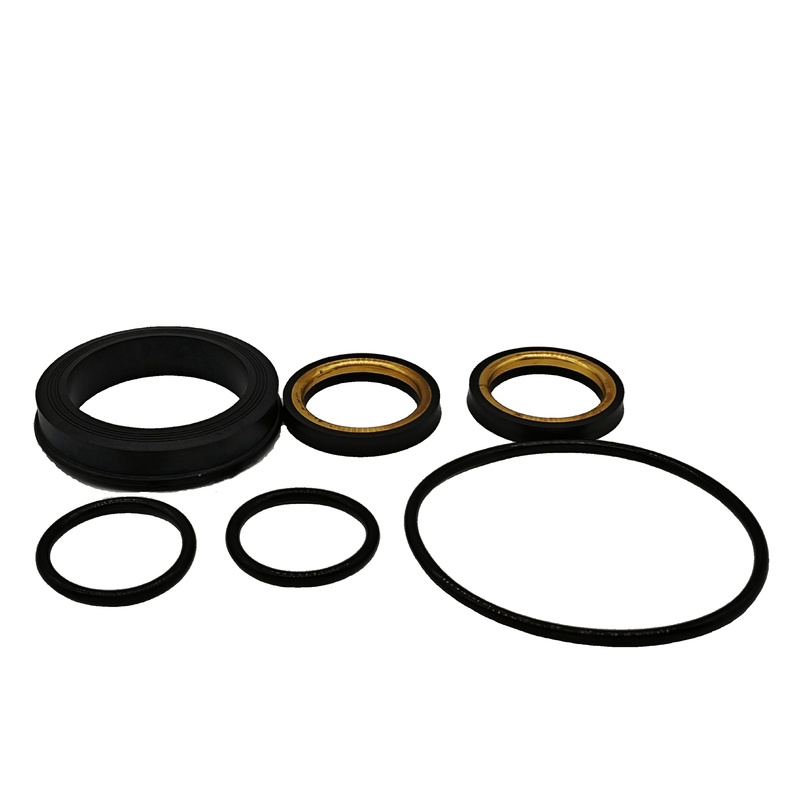

Name: Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: Plug valve seal Type
Price: 1.00 USD
Availability: InStock

Home Products Plug Valve Seals

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Royal Way
Certification:	ISO9001
Model Number:	Plug valve seal Type

Payment & Shipping Terms:

Minimum Order Quantity:	500sets
Price:	1~2 $/set
Packaging Details:	CARTONS PACKING
Delivery Time:	20DAYS
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	10000sets PER WEEK

Contact Now

Detailed Product Description

Material:	NBR, HNBR Or FKM; Brass Or Stainless-steel Backing By Component	Hardness:	80 Or 90 Shore A Options; Confirm By Seal Position
Using:	For Plug Valve	Other Sizes:	1, 2 And 3 Inch Valve Configurations; Component Drawings Required
Color:	Black Or Customized Color	Key Words:	Plug Valve Backed Seals; Brass Stainless Backing; Replacement Kit Inspection
MOQ:	500sets	Serive:	OEM/ODM Review From Component Drawings Or Samples
Sample:	Available	Port:	Shanghai
Highlight:	1” 2” 3” Plug Valve Seals , SS Backside Plug Valve Seals , Superior Performance Plug Valve Seals

1, 2 and 3 Inch Plug Valve Seals — Backing Geometry and Component Inspection

Oilfield Plug Valve Seals products data sheet

Available sizes	1, 2 and 3 inch valve configurations; component fit by valve series and drawing
Available material	NBR, HNBR or FKM options; brass or stainless-steel backing specified separately
Hardness	80 or 90 Shore A options; confirm hardness and tolerance by seal position
Type	Backed and plain soft-seal components; assembly torque to confirm

Backing and Fit Review: Identify the valve series, figure designation and seal position. Specify rubber profile, backing dimensions and metal grade for each backed component. List plain rings separately and agree the kit contents before ordering.

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Other products

Hammer union seals:

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Rubber hammer union seals-Buna/FKM/HNBR rubber type
Rubber hammer union seals with brass/stainless back up

1" 1502, Buna / FKM/ HSN

1-1/2" 1502, Buna / FKM/ HSN

2" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)

3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)

4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)

2" FIG 206, Buna / FKM/ HSN(AS568-228)

3" FIG 206, Buna / FKM/ HSN(AS568-236)

4" FIG 206, Buna / FKM/ HSN(AS568-346)

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

MV Style, TA style, TUF style, NUF style and V styles.

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Rubber o rings or kits

For AS568 O-rings, provide dash numbers, compound, hardness and quantity to check the required sizes.

Color, hardness, packing all can be custom making.

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

2" Normal Swivel Kit

2" SMI-Oversized Swivel Joint Kits

3" SPM Swivel Kit

3" Swivel Kit

3" Wide Swivel Kits

4" 15k Forum Swivel Kits

4" 10k FET-Flowvalve Swivel kits

4" 15k TSI Swivel Kit

4" 15k FlowValve Swivel Kit

Other oil field rubber and plastic fittings:

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Our Company

For backed plug valve seals, provide dimensioned component drawings, operating fluid and temperature, pressure cycles and quantity. Confirm the elastomer formulation and metal backing construction for the selected valve series.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

Our ISO 9001 quality management system supports production and inspection. Agree dimensional tolerances, backing material, compound and requested inspection documents with the order.

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

Our Service capability:

Customized services	Plastic & Rubber bonding	Mold Design
Customized extrusion	Extrusion and bonded gaskets	Mold Production
Injection Molding	Self Adhesive rubber profile	Customized Package
Sheet Cutting	Rubber Complex Intake Hose	Problem Solving
Standard Size extrusion	Reinforced rubber tubes	Assembly
Special Compound design	Rubber Solution Suggestion	Sourcing
Rubber& Metal bonding

Packing and shipping

Superior Performance 1" 2" 3" Brass Or SS Backside NBR HNBR FKM Plug Valve Seals

FAQ

1. What is needed to quote a backed seal kit?
Send the valve nameplate and component list with seal profiles, groove dimensions, backing grade and quantities.
Include delivery destination and required schedule so packaging and transport can be quoted for the selected kit.

2. Which inspection requirements should be specified?
a. Identify dimensions and tolerances for the rubber profile and metal backing.
b. Specify compound and hardness separately for each seal position.
c. Agree any bonding, leakage or assembly tests, with test conditions and acceptance criteria.
d. Lean production management mode.
e. Help customers develop and design new products.
f. Has rich experience in the design and processing of rubber products.
g. Request the material and inspection documents needed for the agreed components.

3. Are different valve configurations interchangeable?
1. Match components to the valve manufacturer, series and parts drawing.
2. Similar nominal valve size does not establish matching seal dimensions.
3. Brass and stainless-steel backing options need separate specification.
4. Confirm component samples and inspection requirements before production.
5. Follow the valve manufacturer’s assembly and maintenance procedure.

4. What is your advantage?
1. Has sound and mature supporting supply chain
2. Lower mold costs
3. High efficiency of development and design ability and short process time.
4. Cost effective and good service attitude.
5. More professional export sales staff who are all know rubber processing very well.
