Heat Resistant FMC Type 1'' FIG 1502 Weco Plug Valve Elastomer Set Repair Kits

1-Inch Figure 1502 Weco / FMC-Type Plug Valve Elastomer Repair Set

Oilfield Plug Valve Seals products

This 1-inch Figure 1502 plug valve elastomer repair set is intended for replacement sealing parts in a matching Weco / FMC-type plug valve. Match the valve model, seal profile and component list before ordering. The type reference identifies the required fit; individual seals, O-rings and any metal-backed parts must follow the approved drawing and kit list.

Application:

Application: maintenance of a matching 1-inch Figure 1502 oilfield plug valve. Provide the valve identification, existing seal dimensions, fluid composition, operating temperature and pressure cycle. Confirm the repair procedure and complete valve rating with the equipment documentation; this elastomer set does not carry an independent pressure rating.

1-Inch Plug Valve Repair Set: Confirm Fit, Hardness and Heat Exposure

Heat resistance depends on the selected compound and service conditions. Figure 1502 is an equipment reference, not a temperature limit or a pressure rating for the repair set. Related hammer union seals and swab cups shown below are separate products.

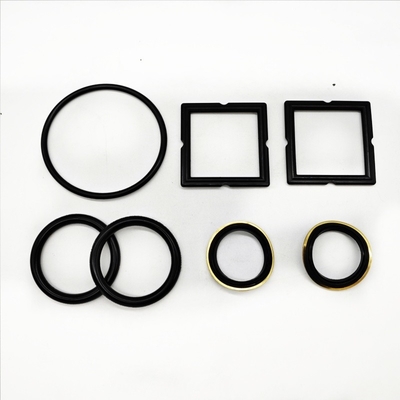

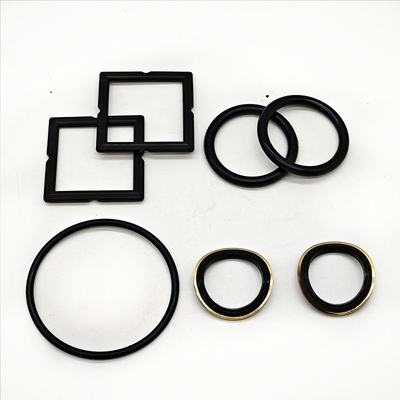

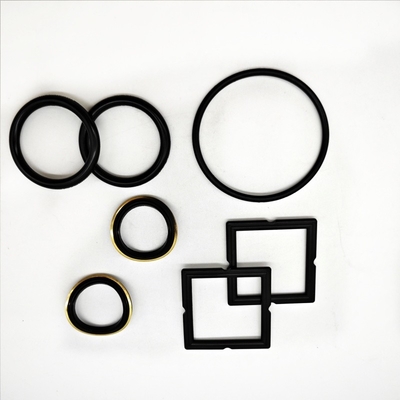

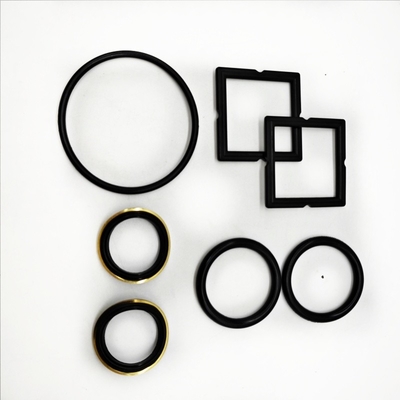

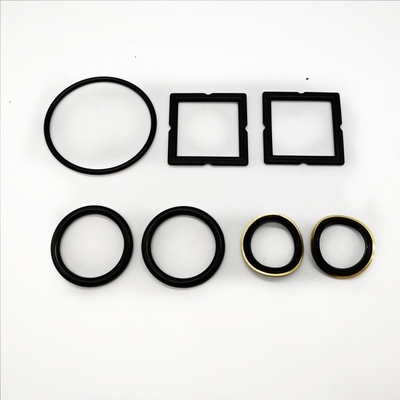

More 1'' plug valve seals kits detail pictures for reference:

Other products from us:

Hammer union seals:

  Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

  Available size : 1", 1.5'',2", 3", 4" and 5"

Related hammer union seal materials include NBR, HNBR, FKM and PTFE. Select the exact grade and backup construction for the mating union, fluid and temperature. HNBR alone does not establish sour-gas suitability; compound-specific qualification is required.

  Related Hammer Union Seal References — Confirm Drawing and Availability:

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

MV Style, TA style and V styles.

Rubber o rings or kits

For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.

Color, hardness, packing all can be custom making.

Other oil field rubber and plastic fittings:

Rubber packer elements

Thread protectors

Flow tubes

Other parts by drawing.

Shanghai Qinuo Industry Co. Ltd

Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings and application requirements. Our ISO 9001 quality management supports specification review and inspection. For a plug valve repair set, send the valve reference, parts list, component dimensions and service conditions so the materials and fit can be confirmed.
