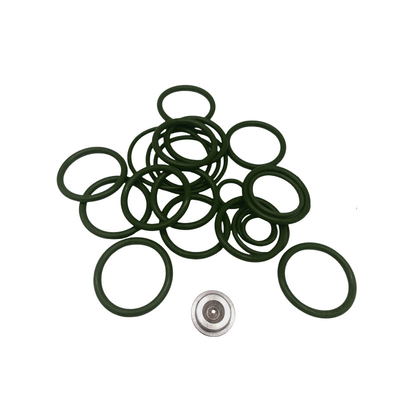

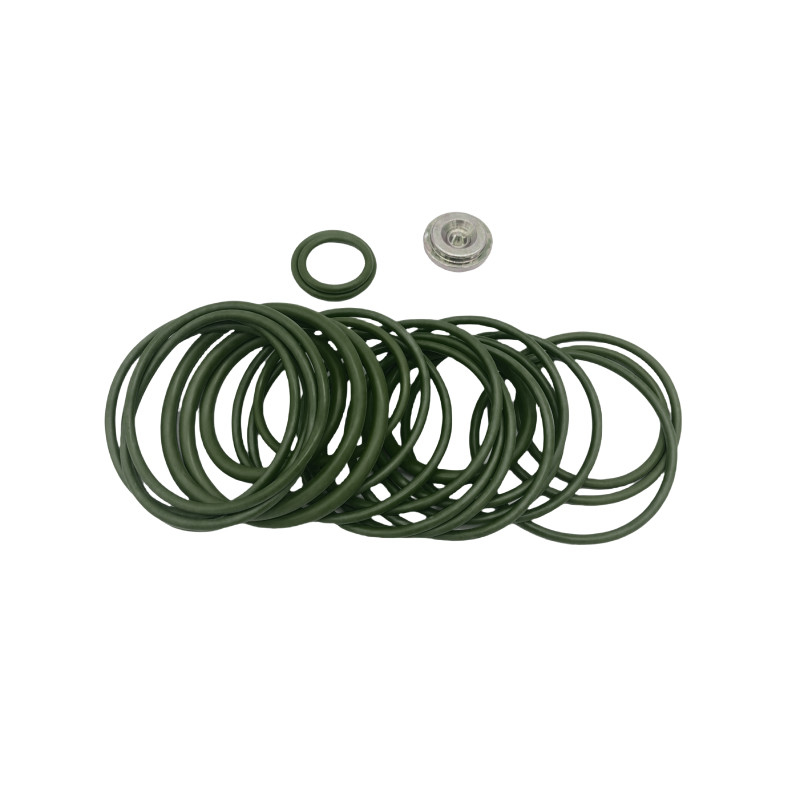

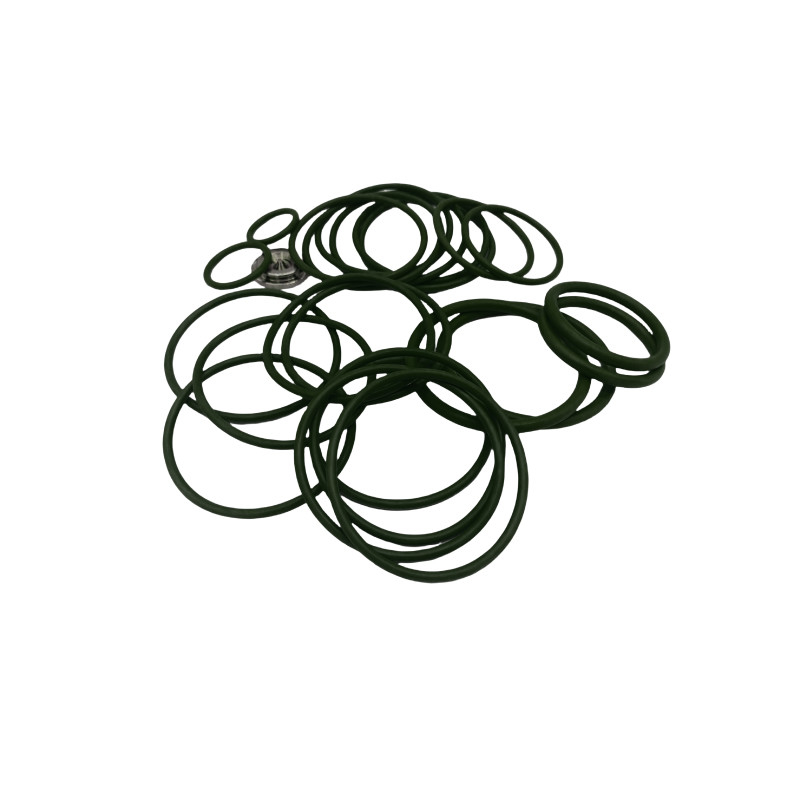

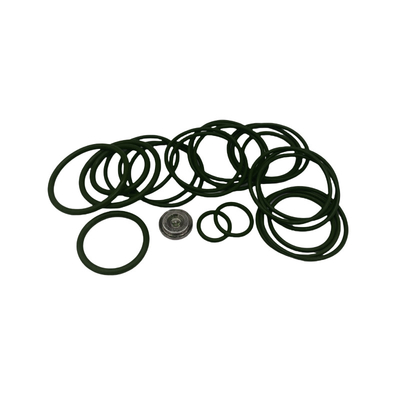

FKM EPDM NBR Rings 20 Baker Setting Tools Redress Kit For Bridge Plug Roller Systems

Qinuo Equipment list:

Qinuo Material processing range:

Qinuo Custom Capabilties:

Packing and Shipping

1. Is this a roller-system repair kit?
Order this kit against the #20 setting tool assembly and its seal list. Roller intervention equipment requires its own assembly drawings and replacement parts.
Identify the tool reference and component positions in the inquiry so similarly named maintenance kits are not combined without a parts-list review.
2. What defines the ring specification?
a. The seal position and profile on the assembly drawing.
b. Inner diameter, cross-section or other required dimensions and tolerances.
c. The number of each component per complete kit.
d. Approved compound and hardness for the seal position.
e. Fluid composition, additives and cleaning chemicals.
f. Temperature, pressure cycles and motion requirements.
g. Required inspection and material documentation.
3. Does choosing FKM, EPDM or NBR establish the kit rating?
1. A polymer family alone does not define the compound performance.
2. Review material suitability together with the actual fluid and temperature.
3. Pressure capability depends on the seal and assembly design.
4. Confirm gas exposure and decompression requirements where applicable.
5. Approve material substitutions by component before production.
4. How should maintenance kit contents be checked?
1. Compare the kit list with the #20 assembly revision.
2. Check component dimensions, profiles and quantities.
3. Keep adapter and firing-head parts under separate references.
4. Follow the tool instructions for installation and assembly inspection.
5. Retain the approved component list for repeat maintenance orders.

Send the #20 setting tool assembly drawing and seal list for a redress kit quotation.
