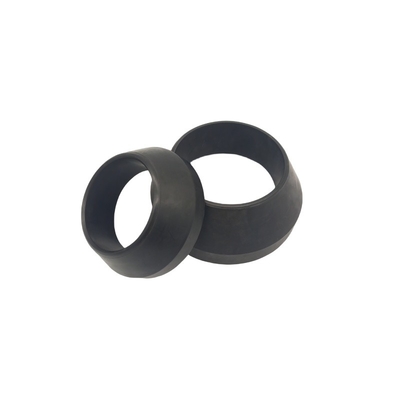

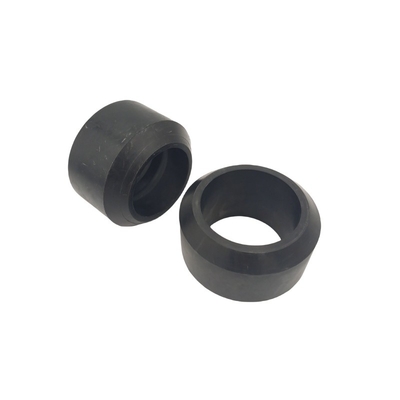

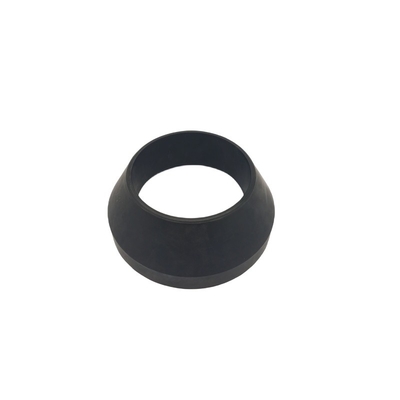

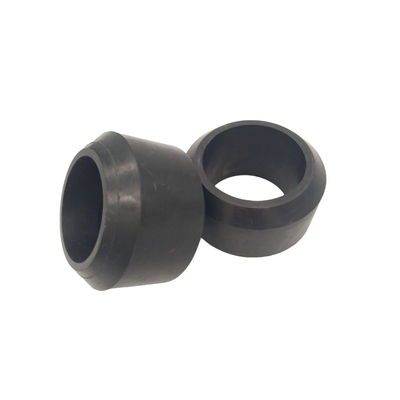

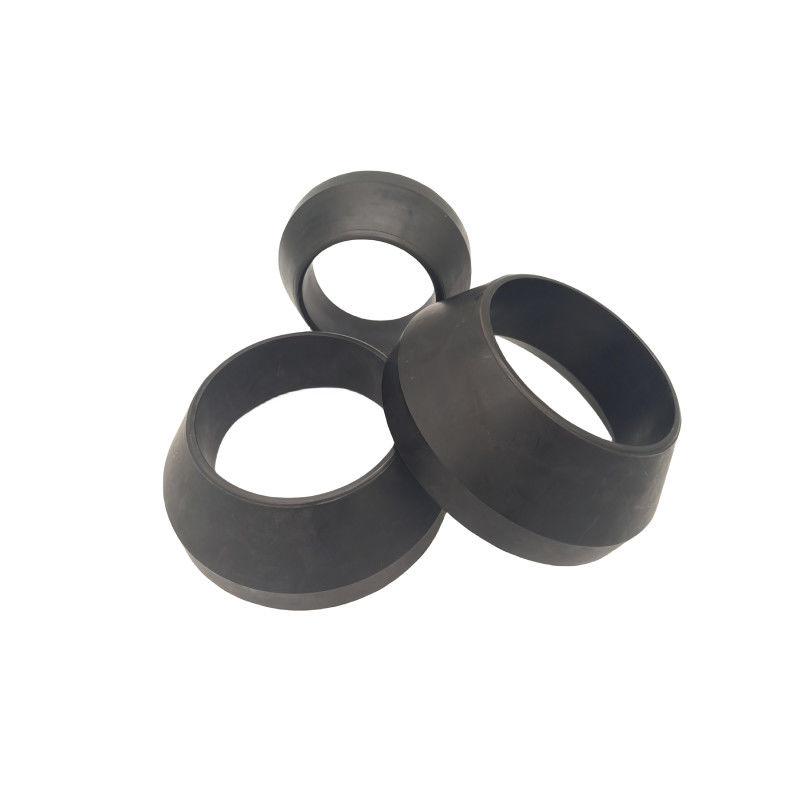

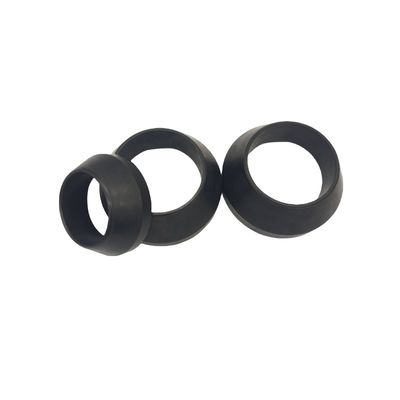

Custom Rubber Packer Cups for Stimulation Tools: Pressure-Test Specification
Rubber packer cups are sealing components for the specified zonal-isolation or stimulation tool. Custom production requires the cup drawing, mounting geometry and reinforcement details. Select FKM, HNBR or nitrile rubber for the actual fluid exposure and temperature; drillability must be defined for the complete tool.
Features of the rubber oil packer cups:
1) Specify differential pressure, pressure direction and operating temperature.
2) Confirm the mating bore, mounting dimensions and cup construction.
3) Nominal 3.5, 4.5 and 5.5 inch options or drawing-based custom sizes.
4) For a requested 150 °C (302 °F) pressure test, agree the test medium, pressure, duration and acceptance limits.
5) A requested 30-cycle test needs a defined cycle sequence and acceptance criteria.
6) Requested cups up to 30 inches require drawing and mold feasibility review.
Application
Application environment: oil, gas, gas condensate
Shanghai Qinuo supplies custom and replacement packer cups to approved drawings. For stimulation-tool service, define the actual bore, cup lip profile, support geometry and operating sequence so that the sealing assembly can be assessed.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
Nominal tubing and casing references must be checked against actual cup dimensions. Supply mounting diameter, axial height, lip geometry and drawing revision before replacement fit is approved.
| Operating Pressure |
Requested 35 MPa; qualification of the complete assembly required |
| Environment |
oil, gas, gas condensate |
| Available Material |
FKM, HNBR and nitrile rubber; compound selected for service |
Other relative rubber products:
Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.
We also can provide oilfield rubber swab cup
- The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
- The MV swab cup is a light-duty, all-rubber cup with multiple flexible, upturned lips for fluid containing suspended sand. Select its size and loading for the swabbing assembly.
- The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
- The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
- The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
- The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
- The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.
Moulded Rubber Products
Rubber Bonded with Metal Products
Extruded Rubber Products
Packing and shipping
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port , or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Our company
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We use an ISO 9001 quality management system. Agree material documentation, dimensional inspection and the required product or assembly tests with the order.
FAQ
1. What should a stimulation-tool test specification include?
Define the assembled tool configuration, actual bore, test pressure, pressure direction and temperature.
Specify test medium, exposure time, loading sequence and measurable acceptance limits.
2. What is needed for custom cup production?
a. Approved drawing and part revision.
b. Mounting dimensions and sealing lip profile with tolerances.
c. All-rubber or wire/mesh/frame-reinforced construction.
d. Compound and nominal hardness with tolerances.
e. Support geometry and extrusion clearances.
f. Sample inspection and approval requirements.
g. Part identification and packing instructions.
3. Does a pressure value establish cup suitability?
1. Review the cup as part of the complete tool assembly.
2. Include actual temperature and fluid exposure.
3. Define setting movement and mechanical support.
4. Agree the required pressure and cycling test conditions.
5. Confirm acceptance results for the specified assembly before use.
4. What is your advantage?
1. Has sound and mature supporting supply chain
2. Lower mold costs
3. High efficiency of development and design ability and short process time.
4. Cost effective and good service attitude.
5. More professional export sales staff who are all know rubber processing very well.
For a custom stimulation-tool packer cup, send the tool reference, drawing or representative sample and the complete test requirements.
We welcome custom make products, looking forward to your design drawing or orginal samples.
Welcome to contact us for more information.
