Versatile High-Pressure Rubber FKM NBR HNBR Packer Elements for a Wide Range of Sizes and Temperatures

FKM, NBR and HNBR Rubber Packer Elements Matched to Assembly and Service Conditions

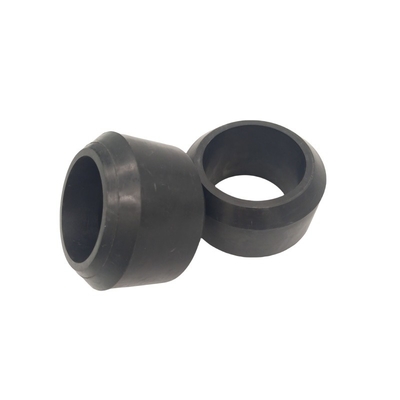

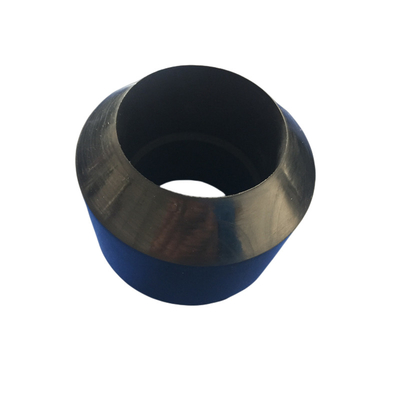

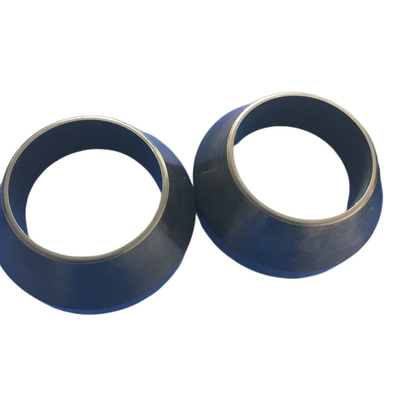

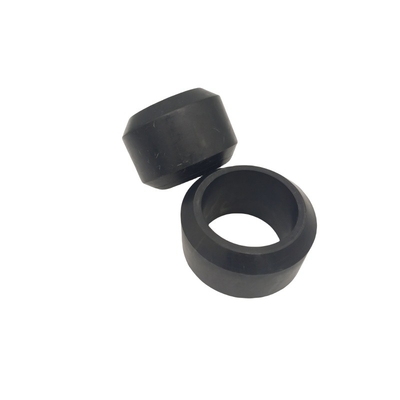

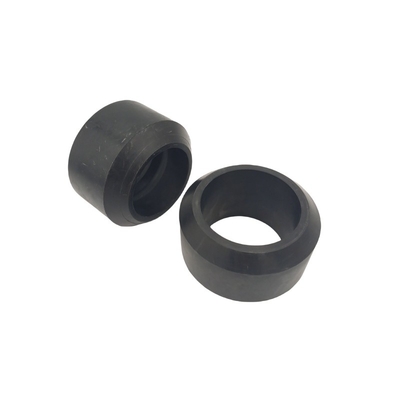

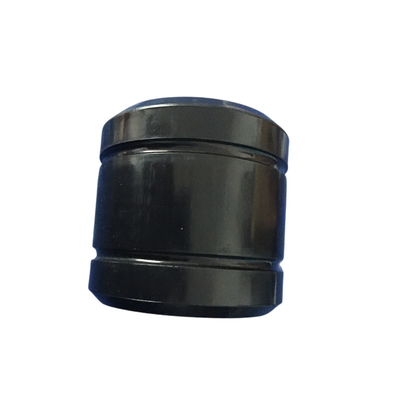

Rubber packer elements are elastomeric sealing components fitted to a specified packer assembly. They are not complete drillable composite tools. Match the element profile and dimensions to the equipment drawing, and select NBR, HNBR or FKM compounds for the actual well fluid and operating conditions.

Features of the rubber oil packer cups:

1) Pressure and temperature capability depend on the qualified element and complete packer assembly.

2) Confirm the required qualification and acceptance criteria for the selected design.

3) Available in a wide range of sizes.

4) Agree pressure and temperature test conditions for the specific design before ordering.

5) Cycling requirements and test results must be confirmed for the selected assembly.

6) Confirm custom dimensions and manufacturing feasibility against your drawing.

Application

Application environment: oil, gas, gas condensate

Shanghai Qinuo manufactures a wide range of Packer Cups and replacement Packer Cups for the leading Packer Cup manufactures. Packer cup designs and replacement dimensions should be checked against the equipment model and service requirements.

We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.

Our Packer Cups are available in various sizes right from a 1-1/4″ tubing through a 7″ casing and more. Specific sizes / designs can be developed based on your requirements.

Packer element profile, assembly fit and service qualification

Provide the packer model, element drawing, bore and mandrel dimensions, profile and required quantity. The listed 3.5, 4.5 and 5.5 inch references need confirmation as equipment sizes; they do not replace the element dimensions. Specify well fluids, temperature, differential pressure and cycling requirements so compound and assembly qualification can be reviewed together. Cup-style and compression-element designs must be distinguished when matching replacements. Confirm any required test report for the selected design before approving service limits.

Other relative rubber products:

Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.

• The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
• The MV swab cup is a light-duty, all-rubber cup especially effective in fluid with a high ratio of suspended sand. It has multiple flexible, upturned lips that easily.
• The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
• The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
• The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
• The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
• The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.

 Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port , or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

 Our company

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, our quality management system is ISO 9001 certified, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
