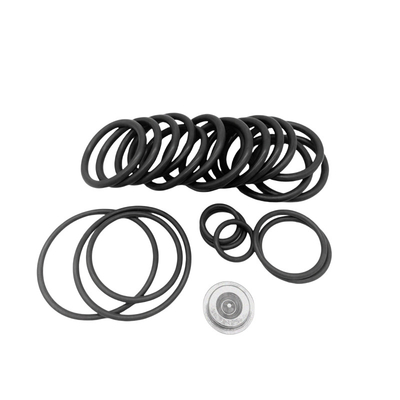

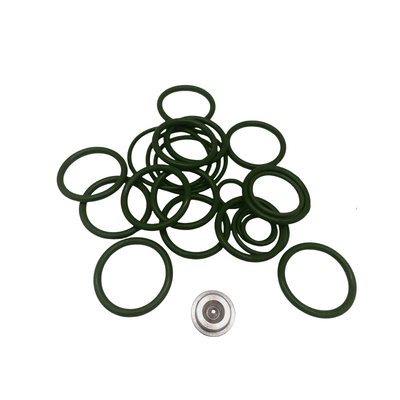

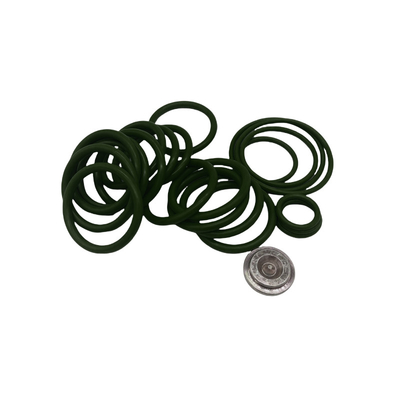

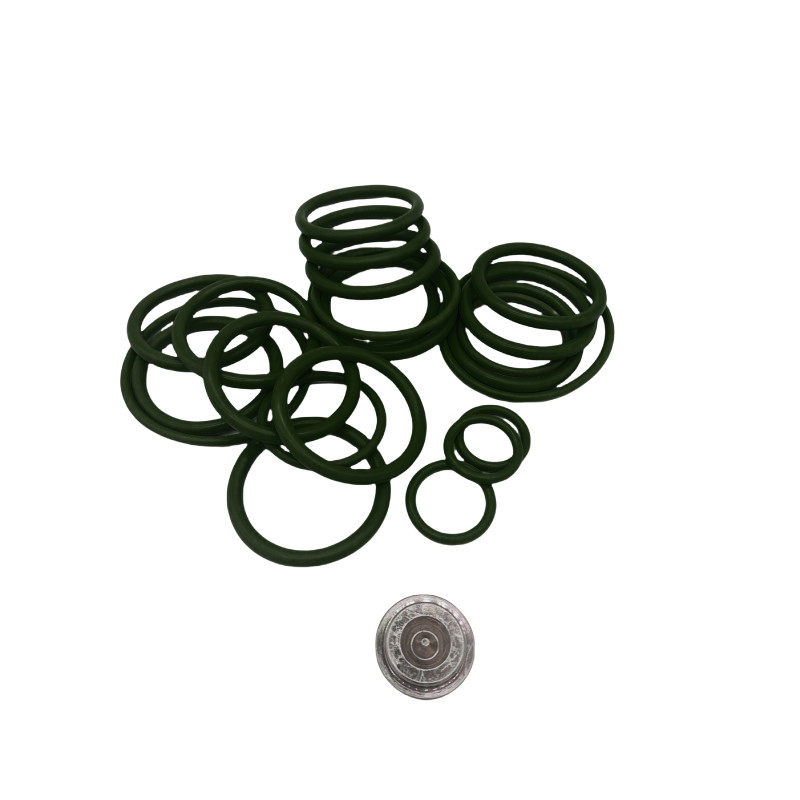

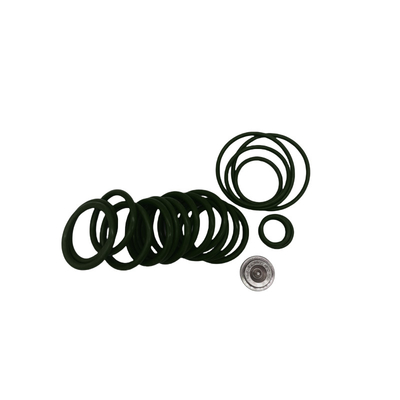

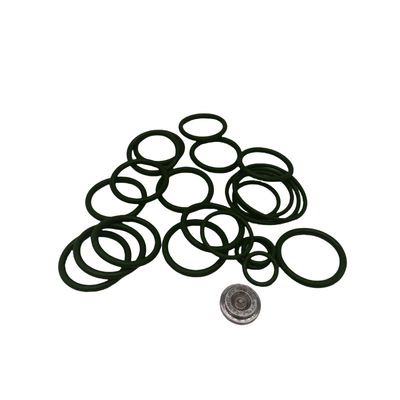

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Redress Kits
Payment & Shipping Terms:
Minimum Order Quantity: 1000set
Price: $0.2-$3
Packaging Details: Carton packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000set per week
Contact Now
Detailed Product Description
Product: Number 10 Setting Tool Redress Kits Avilable Size: Match Number 10 Tool Revision And Component Dimensions
Color: Black/white/red/orange Or Customized Color Nearest Port: Shanghai
MOQ: 1000set Types: Seal Profiles Per Assembly Parts List
Custom: Available OEM/ODM Material: NBR, Nominal 80 Shore A; Confirm Per Component
Sample: Availability And Terms Confirmed With Specification
Highlight:

80 Shore A Redress Kits

,

Oil Resistance Redress Kits

,

Nbr Rubber Redress Kits

Number 10 Setting Tool Redress Kits — NBR 80 Shore A Seal Specification


Product Introduction

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress KitsOil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits






What is redress kit?



This Number 10 wireline setting tool redress kit listing identifies NBR rubber at nominal 80 Shore A. Specify this compound and hardness for the applicable replacement seal positions, together with the tool revision and component drawing. The hardness value does not define the pressure or temperature rating of the assembled setting tool.



Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Product Number 10 Setting Tool Redress Kits
Avilable Size Number 10 tool revision and component dimensions required
Color Black/white/red/orange or customized color
MOQ 1000set
Types O-rings and other seal profiles as specified by the parts list
Custom Available OEM/ODM
Material NBR, nominal 80 Shore A; component-specific requirements per parts list
Sample Sample availability and terms confirmed with the kit specification






Related Products


              Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits #10 setting tool
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits #20 setting tool
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits #10 BP3.SEC kits
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits #20 BP3.SEC kits
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits AP Compact Setting Tool Kits
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits 3 1/2 Shorty Kits
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits DWS 3 5/8 COMPACT
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits Tool Trap Shaft Kit
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits T-BRT redress kit
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits GC Stripper Head Redress Kits
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits T Set
Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits 20 Firing Head Kit





Recommend Products


Rubber o rings

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Hammer Union Seal

Union sizes: 1/2, 3, 4 or 7 inch; figure references: 602, 1002, 1502 or 2202

With / Without brass/stainless

2" Guiberson Style Hammer Union Seal- Figure 607

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress KitsOil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Swab Cup

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits










Company Profile




Shanghai Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.Qinuo provides professional rubber products design and production services, mainly used in oil &
gas industry, automobiles, household appliances, machinery equipment etc.

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits

Qinuo Equipment list:

20 Cavities Rounding Comounding Machines Automatic Powder Distribution Machine Automatic Oil Distribution Machine
8 Sets of Open Cell Mixers
( From 6 inches to 16 inches)
5 Layers of Material Cooling Machine 3 Sets of 55kq Closed Cell Mixers
2 Sets of Material Preform Machine 3 Sets of Silicone Vacuum Mixer 65 mm Diameter Silicone Extrusion Line
JG-65mm Diameter Silicone Extrusion Line 75mm Diameter Silicone Extrusion Line 90 mm Diameter General Rubber
Extrusion Line
75mm Diameter General
Rubber Extrusion Line
Fiber Reinforced Rubber Extrusion Line Vulcanizing Tank
Adhesive Machin 28 Sets of Small Vulcanizing Molding Machines(From 50Ton to 100 Tons)
25 Sets of 200 Ton Vulcanizing
Molding Machine
4 Sets of 200 Ton Injection
Compression Machine
2 Sets of 200 Ton Vacumm
Compression Machine
2 Sets of 250 Ton Vulcanizing
Molding Machine
2 Sets of Horizontal Molding Machine 4 Sets of 300 Ton Vulcanizing
Molding Machine
2 Sets of 300 Ton Injection
Compression Machine
Punching Machine Tensile Strength Tester
Brittleness Tester Hardness Tester Thickness Gauge
Mooney viscometer Rheometer Tester Analytical Balance
Electrical Resistance Measurer Density Tester 2 sets Aging Testing Oven

Qinuo Material processing range:


Silicone

SBR ACM PE
EPDM NBR IIR PC
Neoprene Silicone Sponge CSM PP
Urethane Closed Cell Sponge ABS PA
  HNBR Hard PVC TPE
NR ECO Soft pvc TPV
POM TPU

Qinuo Custom Capabilties:

Customized services Plastic & Rubber bonding Mold Design
Customized extrusion Extrusion and bonded gaskets Mold Production
Injection Molding Self Adhesive rubber profile Customized Package
Sheet Cutting Rubber Complex Intake Hose Problem Solving
Standard Size extrusion Reinforced rubber tubes Assembly
Special Compound design Rubber Solution Suggestion Sourcing
Rubber& Metal bonding




Packing and Shipping




1.Express: S.F. , DHL, UPS, TNT, FedEx ect, for urgent and small order.

2.Air shipment: air port to air port , or air port to door.

3.Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

Oil Resistance Nbr Rubber 80 Shore A Wireline Number 10 Setting Tool Redress Kits








FAQ


1. What does the 80 Shore A specification mean?
80 Shore A identifies the nominal indentation hardness of the specified rubber. State the permitted tolerance and the applicable inspection method with the order.
Check hardness separately from dimensions, seal profile and fluid compatibility. Rings with similar appearance or color do not establish the same compound or hardness.

2. What should be checked for NBR oil-service seals?
a. Identify the oil or well-fluid formulation and additives.
b. Provide normal and peak operating temperatures.
c. Confirm exposure to cleaning agents and assembly lubricants.
d. Match gland dimensions, seal squeeze and extrusion clearance to the original design.
e. State whether each component is used in a static or moving position.
f. Specify any backup rings or other supporting parts separately.
g. Do not infer sour-service or decompression qualification from NBR and hardness alone.

3. Is every component in the kit NBR 80 Shore A?
1. Confirm the material schedule for each part number.
2. Identify any components requiring a different hardness or polymer.
3. Specify non-rubber components separately when included.
4. Label component quantities and positions against the Number 10 assembly drawing.
5. Review substitutions before packing the complete maintenance set.

4. What inspection details help identify this kit?
1. Record the tool model and revision on the kit identification.
2. Specify seal dimensions and dimensional tolerances.
3. State the NBR compound reference and nominal 80 Shore A requirement.
4. Request the required hardness and dimensional inspection records.
5. ISO 9001 relates to the quality management system; product acceptance follows the agreed drawing and inspection requirements.

Send the Number 10 parts list and NBR 80 Shore A requirements for a replacement kit quotation.Welcome to contact us for more information.
