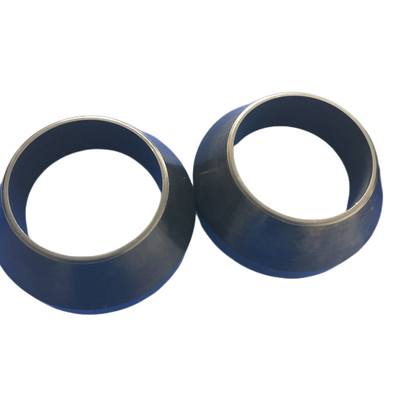

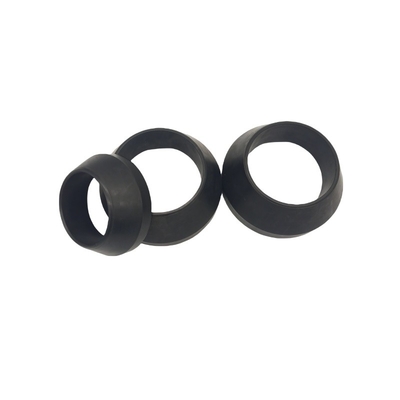

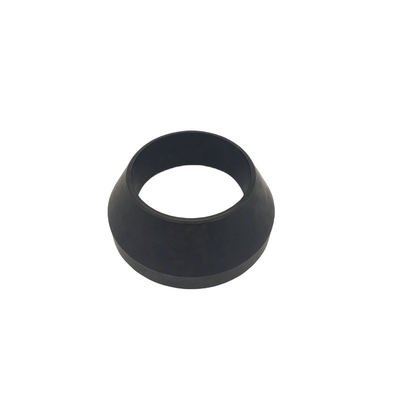

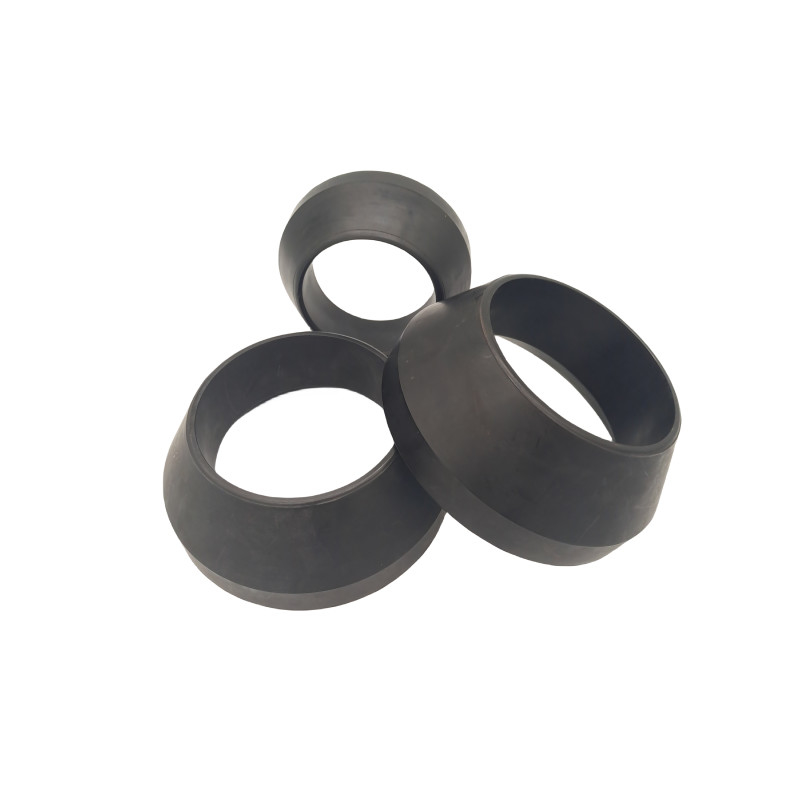

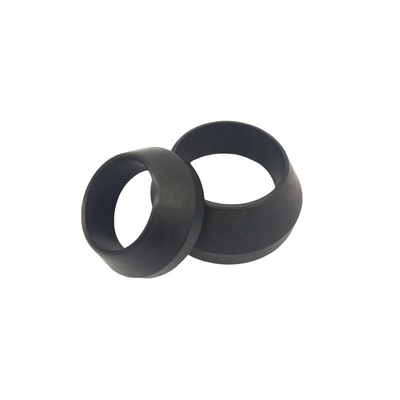

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Product Details:
Place of Origin: Shanghai, China
Brand Name: Royal Way
Certification: ISO 9001
Model Number: OP
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: 0.3-1
Packaging Details: Carton packing
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Size:: 3.5, 4.5 Or 5.5 In Nominal Application Size; Confirm Drawing Dimensions Material:: FKM NBR HNBR
Operating Pressure: 35 MPa Requirement; Confirm Compound And Assembly Rating Environment:: Oil, Gas, Gas Condensate
Max Temperature:: 120°C Requirement; Confirm Compound And Service Conditions Color: Black Or Custom Color
Black Or Custom Color: Black Or Custom Color
Highlight:

HNBR Rubber Packer Elements

,

Oilfield Rubber Packer Elements

,

Durable Rubber Packer Elements

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield ApplicationsDurable FKM NBR HNBR Rubber Packer Elements for Oilfield ApplicationsDurable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Replacement rubber packer elements and packer cups in NBR, HNBR or FKM are selected against the tool drawing and service conditions. For cup-style seals, match lip profile, mounting geometry and reinforcement to the original assembly. Compression-set packer elements require their own setting and expansion dimensions. Drillability depends on the complete tool construction and must be specified separately.



Features of the rubber oil packer cups:



1) Specify differential pressure, operating temperature and fluid composition for the selected compound and assembly.

2) Inspect removed seals for lip cuts, abrasion, permanent deformation and damage around the support or reinforcement.

3) Match replacement dimensions to the tool drawing; nominal tubing or casing size alone does not define seal fit.

4) If a 150°C (302°F) pressure test is required, agree the compound, fixture, pressure, duration and acceptance criteria before ordering.

5) A 30-cycle test requirement needs a defined pressure and temperature sequence; it is not a universal rating for every element.

6) Large cup sizes, including a 30-inch requirement, need drawing and manufacturing review before confirmation.

Application

Application environment: oil, gas, gas condensate



Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Replacement packer cups should reproduce the mounting interface and working lip geometry required by the tool. Compare the removed part with its drawing and record the failure location so that dimensional wear, installation damage and fluid-related deterioration can be reviewed separately.



We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.

Specify actual tubing or casing inside diameter, seal dimensions and tolerances. Nominal sizes such as 3.5, 4.5 and 5.5 inches identify the application size; confirm the corresponding part geometry before manufacture.

Operating Pressure 35 MPa application requirement; confirm the rating for the specified compound and complete tool assembly
Environment oil, gas, gas condensate
Available Material FKM, HNBR or NBR; select compound against fluid composition and temperature

Other relative rubber products:

Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications



We also can provide oilfield rubber swab cup



  • The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
  • The MV swab cup is a light-duty, all-rubber cup with multiple flexible, upturned lips for sand-laden fluid applications. Confirm cup size and mandrel fit before selection.
  • The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
  • The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
  • The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
  • The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
  • The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield ApplicationsDurable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Moulded Rubber Products



Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Rubber Bonded with Metal Products

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Extruded Rubber Products

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

 Packing and shipping

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port , or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.









 Our company



Durable FKM NBR HNBR Rubber Packer Elements for Oilfield Applications

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

Our ISO 9001 quality management system supports manufacturing quality control. Specify material documentation, inspection records and any additional compliance requirements with the order.



FAQ

1. What should be checked before ordering a replacement?
Provide the tool model, drawing or original sample, and photographs of the removed seal.
Record lip wear, cuts and deformation together with the operating conditions; damage appearance alone does not establish the cause.
2. What information defines the replacement geometry?
a. Actual seal outside diameter and inside diameter, with tolerances.
b. Overall height, lip profile and mounting interface.
c. Location and type of wire, mesh or other support, where applicable.
d. Tubing or casing inside diameter and contact surface condition.
e. Pressure direction and installation orientation.
f. Required setting movement for compression-type elements.
g. Identification of the approved part revision and sample.
3. How is the rubber compound selected?
1. Identify NBR, HNBR or FKM and the specified compound or hardness.
2. Supply oil, gas and condensate composition, including additives and contaminants.
3. State continuous and peak temperatures and exposure time.
4. Include pressure cycling and decompression conditions.
5. Agree relevant material tests and acceptance limits.

4. How should replacement parts be accepted?
1. Check dimensions against the approved drawing.
2. Inspect molding surfaces and lip edges for specified defects.
3. Confirm reinforcement and bonding requirements where used.
4. Review agreed inspection and test records.
5. Establish traceability to the approved material and part revision.



For replacement rubber packer elements, send the removed-part condition, mating dimensions and service requirements so that the correct geometry and compound can be reviewed.

Custom parts can be reviewed from your drawing or original sample; specify dimensions, tolerances and acceptance requirements.
