| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | OP |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | 0.3-1 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per week |
| Size:: | 3.5, 4.5 Or 5.5 In Nominal Application Size; Custom Drawing Review | Material:: | FKM NBR HNBR |
|---|---|---|---|
| Operating Pressure: | 35 MPa Requirement; Confirm Complete Assembly Rating | Environment:: | Oil, Gas, Gas Condensate |
| Max Temperature:: | 120°C Requirement; Confirm Compound And Operating Envelope | Color: | Black Or Custom Color |
| Black Or Custom Color: | Black Or Custom Color | ||
| Highlight: | Customizable Rubber Packer Elements,High Pressure Rubber Packer Elements,Durable Rubber Packer Elements |
||

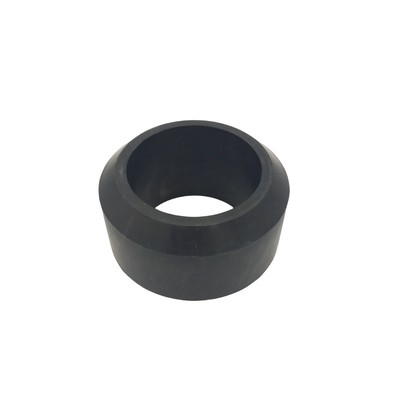

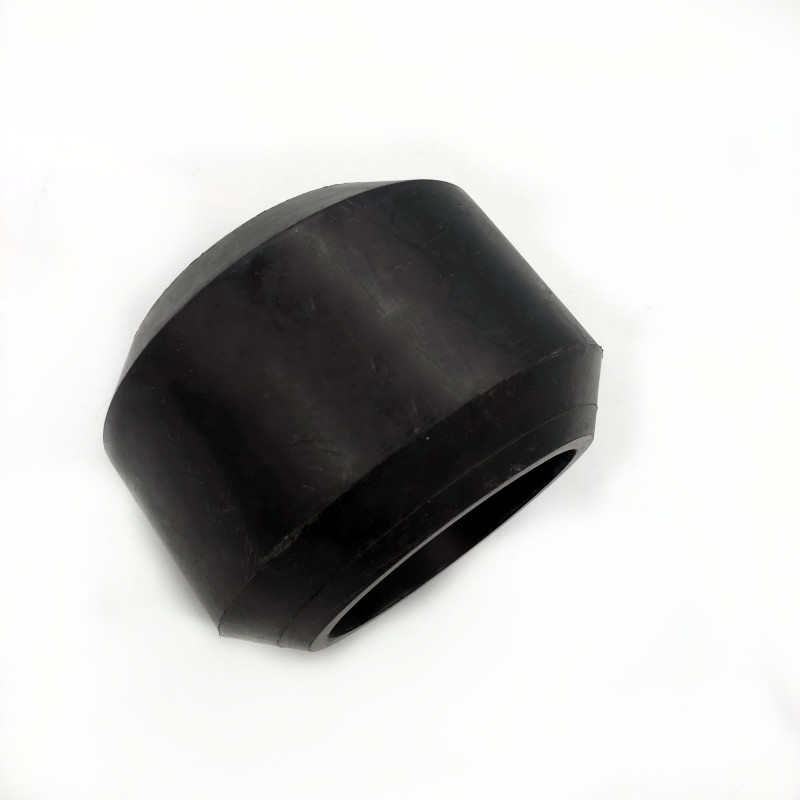

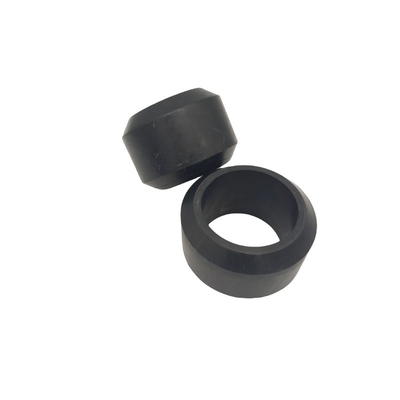

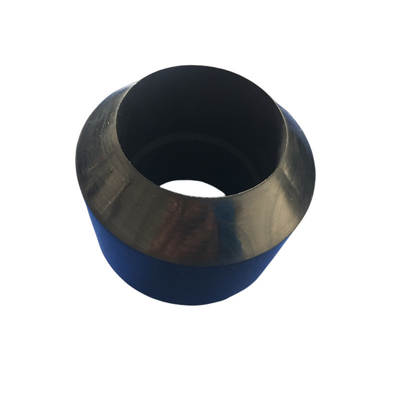

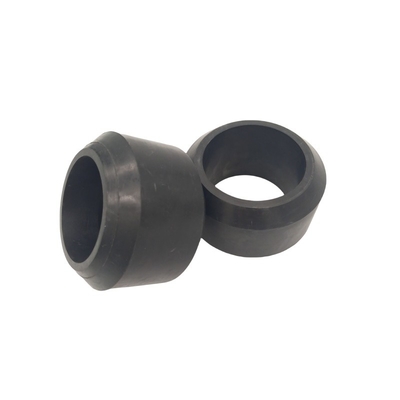

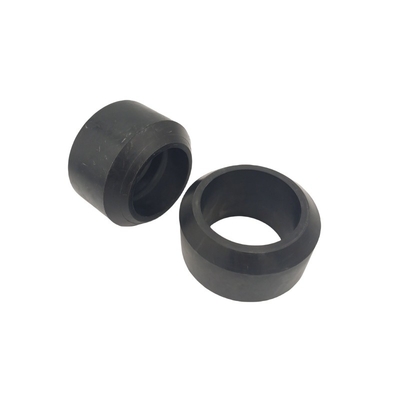

Customizable Rubber Packer Elements for High-Pressure Environments![]()
![]()
Custom rubber packer elements in NBR, HNBR or FKM require a defined operating envelope and matching tool geometry. Specify differential pressure, pressure direction, temperature and fluid composition together. Cup-style seals and compression-set elements use different sealing mechanisms; identify the construction on the drawing. Drillability is a requirement for the complete tool and is not established by the rubber material alone.
Features of the rubber oil packer cups:
1) Review high-pressure requirements against the complete seal assembly, support clearances and selected compound.
2) Define leakage acceptance and pressure-hold duration for the intended operating conditions.
3) Available sizes and custom geometry are reviewed against an approved drawing or sample.
4) A 150°C (302°F) pressure test must specify the test compound, fixture, pressure and duration; confirm applicability before ordering.
5) If 30 pressure cycles are required, define the cycle range, dwell time and acceptance criteria.
6) Cup sizes up to a requested 30 inches require dimensional and manufacturing confirmation.
Application
Application environment: oil, gas, gas condensate
![]()
For oil, gas or condensate applications, the pressure specification should include normal operating pressure, transient peaks and differential pressure across the seal. Provide the mating metal geometry and clearances under load so that support and extrusion risks can be reviewed with the rubber compound.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
Nominal application sizes include 3.5, 4.5 and 5.5 inches. Provide the actual bore, element dimensions, mounting interface and tolerances; nominal tubing or casing size is not the finished seal outside diameter.
| Operating Pressure | 35 MPa application requirement; verify the selected compound and complete assembly rating |
| Environment | oil, gas, gas condensate |
| Available Material | FKM, HNBR or NBR; specify compound and service compatibility |
Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.
![]()
We also can provide oilfield rubber swab cup
![]()
![]()
Moulded Rubber Products
![]()
Rubber Bonded with Metal Products
![]()
Extruded Rubber Products
![]()
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port , or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Our company
![]()
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Our ISO 9001 quality management system supports manufacturing quality control. Material certificates, dimensional records and any additional compliance documents should be specified with the order.
FAQ
1. What pressure information is needed?
Provide operating differential pressure, peak pressure and the pressure direction across the seal.
State whether loading is steady, cyclic or reversed, together with the required pressure-hold time.
2. What affects the pressure capability?
a. Rubber compound and hardness at operating temperature.
b. Mating bore dimensions and support clearances under load.
c. Cup lip or compression-element geometry.
d. Reinforcement or backup support where used.
e. Fluid composition and exposure duration.
f. Installation condition and tool setting movement.
g. Pressure cycling and decompression sequence.
3. How should a pressure test be specified?
1. Identify the exact part revision and rubber compound.
2. Define the fixture and mating dimensions.
3. Set pressure, temperature and stabilization time.
4. Agree leakage limits and cycle requirements.
5. Specify inspection after the test and the required report.
4. What should accompany a custom inquiry?
1. Tool model and approved drawing or original sample.
2. Seal dimensions, tolerances and required quantity.
3. Fluid, temperature and pressure operating envelope.
4. Applicable inspection and acceptance requirements.
5. Required identification, packaging and documentation.
For custom rubber packer elements in high-pressure service, submit the complete operating envelope and mating geometry for review of the proposed compound and seal construction.
Send your drawing or original sample for custom-part review; agree geometry, material and test requirements before production.
Welcome to contact us for more information.
Web: www.unionseal.com
Contact Person: Cora Chen
Tel: +8619065106125
