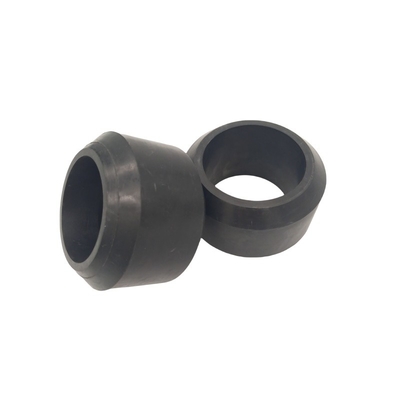

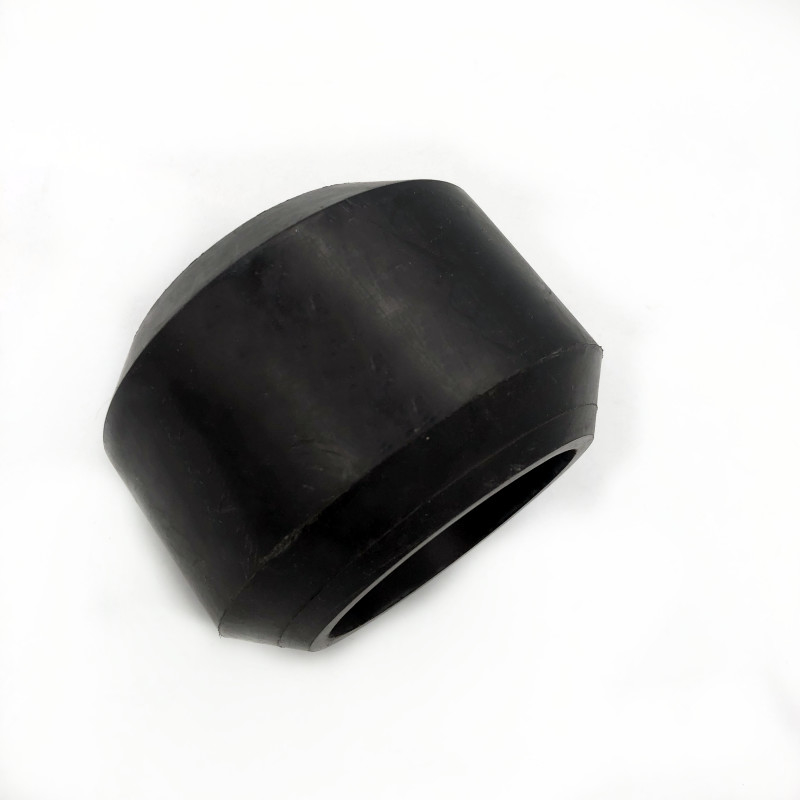

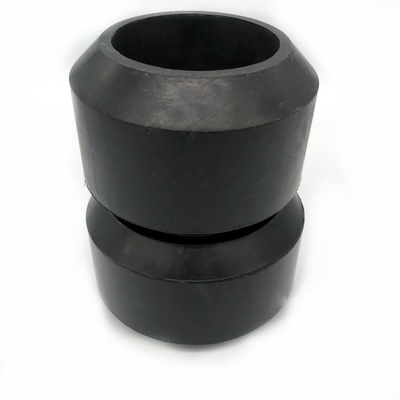

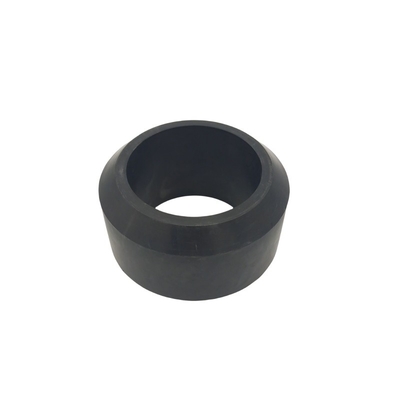

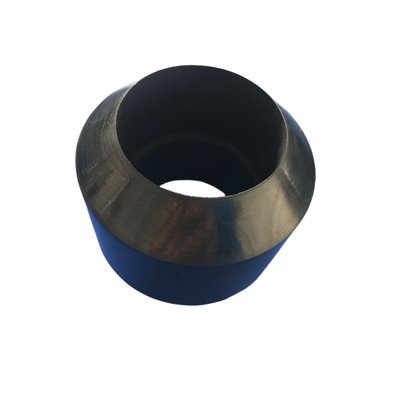

Oil and Gas Well Rubber Packer Elements with Wide Size Availability
Rubber packer elements and cup-style seals for oil and gas wells are matched to actual tool and bore dimensions. NBR, HNBR and FKM options require compound selection for the specified fluid and temperature. Identify whether the part is a cup seal or a compression-set element before defining dimensions, reinforcement and setting requirements. Drillability must be confirmed for the complete tool construction.
Features of the rubber oil packer cups:
1) Specify pressure and temperature requirements for the selected compound and complete assembly.
2) Dimensional fit includes seal profile, mounting interface and mating bore condition.
3) Nominal application sizes include 3.5, 4.5 and 5.5 inches; custom sizes require drawing review.
4) A requested 150°C (302°F) pressure test needs an agreed compound, fixture, pressure and acceptance criteria.
5) A requested 30-cycle test needs defined pressure limits, temperature and dwell times.
6) A cup diameter up to 30 inches requires manufacturing and drawing confirmation before ordering.
Application
Application environment: oil, gas, gas condensate
For replacement packer seals, record both the nominal tubing or casing designation and its actual internal diameter. Include the metal tool interface, support dimensions and required seal profile. Two wells with the same nominal casing size may require different seal geometry because the mating bore and tool construction differ.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
The broader cup range includes applications from 1-1/4-inch tubing through 7-inch casing and other sizes subject to design review. These are application designations, not a substitute for finished-part dimensions and tolerances.
| Operating Pressure |
35 MPa application requirement; confirm compound and complete assembly rating |
| Environment |
oil, gas, gas condensate |
| Available Material |
FKM, HNBR or NBR; confirm compound for the specified service |
Other relative rubber products:
Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.
We also can provide oilfield rubber swab cup
- The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
- The MV swab cup is a light-duty, all-rubber cup with multiple flexible, upturned lips for sand-laden fluid applications. Select cup size against the mandrel and tubing fit.
- The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
- The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
- The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
- The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
- The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.
Moulded Rubber Products
Rubber Bonded with Metal Products
Extruded Rubber Products
Packing and shipping
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port , or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Our company
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Our ISO 9001 quality management system supports manufacturing quality control. Specify dimensional inspection, material documentation and any additional compliance requirements with the order.
FAQ
1. Is nominal casing size enough to order?
Provide nominal size together with actual bore diameter, tool model and the seal drawing.
Confirm the bore condition and mounting geometry; a nominal size alone does not identify a replacement part.
2. Which dimensions should be on the drawing?
a. Finished outside and inside diameters with tolerances.
b. Overall height and working seal profile.
c. Mounting shoulders, grooves or other locating features.
d. Reinforcement and support geometry where applicable.
e. Mating tool dimensions and installation orientation.
f. Setting movement and expanded geometry for compression elements.
g. Approved part revision and inspection dimensions.
3. How should a sample be used?
1. Identify whether the sample is new or used.
2. Record deformation and wear on a removed part.
3. Supply original drawing dimensions where available.
4. Agree which features are measured and which require design confirmation.
5. Approve the proposed geometry and compound before manufacture.
4. What service data accompanies the dimensions?
1. Oil, gas or condensate composition and additives.
2. Continuous and peak temperatures.
3. Differential pressure and pressure direction.
4. Cycling and decompression requirements.
5. Test and inspection acceptance criteria.
For oil and gas well rubber packer elements, send nominal application size, actual bore dimensions and the tool drawing to identify the required seal fit.
Custom dimensions can be reviewed from drawings or samples; confirm tolerances, material and acceptance requirements before production.
Welcome to contact us for more information.
