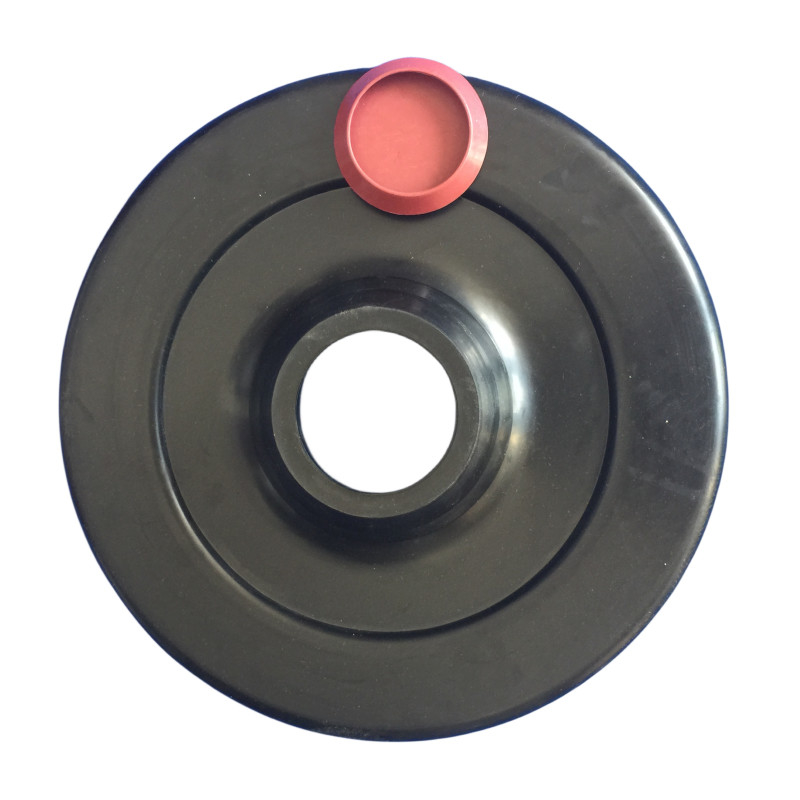

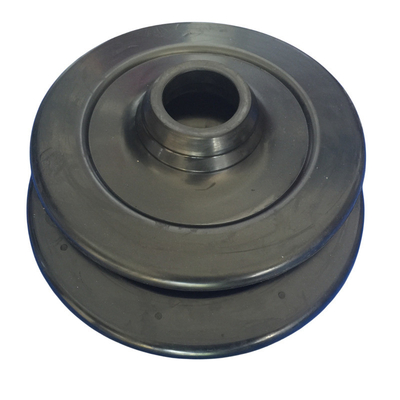

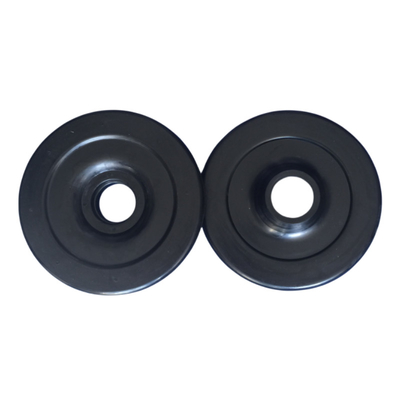

SHQN Custom Make Drilling Swabbing Pipe Cleaner Rubber Flat Pipe Wiper

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHQN
Certification:	ISO9001
Model Number:	Flat pipe wipers

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	$0.5-2/pc
Packaging Details:	carton packing
Delivery Time:	10-20days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	50000pcs per week

Contact Now

Detailed Product Description

Material:	NBR (Buna-N), NR, HNBR Or FKM By Approved Grade And Mud Compatibility	MOQ:	1000pcs
Types:	Flat Rubber Pipe Wiper; Split, Flex Or Oval Profiles By Separate Drawing	Hardness:	40–70 Shore A Enquiry Range; Final Value By Approved Compound
Custom Service:	Available	Application:	Drilling And Swabbing Pipe Surface Cleaning; Not Pressure Control
Brand:	SHQN	Sample:	Available
Highlight:	Rubber Flat Pipe Wiper , SHQN Drilling Swabbing Pipe Cleaner

Custom Flat Rubber Pipe Wipers for Drilling and Swabbing Pipe Cleaning

Flat Pipe Wiper Fit: Specify Pipe OD, Joint Passage and Support

Drawing detail	Information to provide
Pipe contact	Actual pipe OD and largest tool-joint or coupling OD to pass through.
Wiper geometry	Outer dimensions, central opening, thickness and split or solid configuration.
Support	Holder dimensions and any moulded reinforcement required by the installation.
Compound and hardness	Mud composition, temperature and approved grade; listed hardness enquiry range 40–70 Shore A.
Sample acceptance	Dimensions, installation fit and wiping contact to agreed requirements.

A pipe wiper is a cleaning component and should not be treated as a pressure-control seal. Inspect for cuts, tears and worn contact edges, and replace according to the operating procedure. ISO 9001 quality management supports specification review and inspection.

Drill Pipe Wipers in the following types:

Standard Drill Pipe Wiper
Split Drill Pipe Wiper
Flex Drill Pipe Wiper
Oval Drill Pipe Wiper

Specify the wiper drawing, pipe outside diameter and installation arrangement for a custom enquiry. Standard, split, flex and oval types require separate profile confirmation.

Size:	Listed pipe references: 5, 3-1/2, 2-3/8 and 2-5/8 inches; confirm actual pipe OD, tool-joint OD and wiper opening by drawing
Material:	Buna-N (NBR) or NR by approved compound; confirm mud compatibility
Types:	Standard drill pipe wipers/split drill pipe wipers/flex drill pipe wipers and oval drill pipe wipers

Rubber pipe wipers remove adhering mud and debris as pipe is withdrawn. Select the compound for the actual water-based or oil-based mud and review cut, tear and abrasion requirements. NBR, NR, HNBR and FKM are separate material choices; suitability depends on the grade and exposure.

Pipe Wipers functions:

Wiping adhering fluid and debris from drilling or swabbing pipe
Covering the opening around the pipe within the specified installation arrangement
Reducing fluid spillage on the rig floor
Helping reduce entry of loose debris; follow the rig procedure for dropped-object control
Steel-ring reinforcement where specified by the approved wiper construction
