7/32-Inch and 5/32-Inch Wire Cable Shroud Enquiries — Confirm Mating Dimensions
Fractional Cable Size References: Specify Both Shroud Openings and Cover Length
| Fit requirement |
Information to provide |
| Reference size |
7/32 inch or 5/32 inch, with the cable or connector feature identified on the drawing. |
| Shroud geometry |
Both opening dimensions, cover length, wall thickness, tolerance and any retention feature. |
| Assembly route |
Largest feature passed during installation and available clearance around the fitted cover. |
| Material exposure |
NBR grade, hardness, oil or condensate composition, cleaning agent and temperature. |
| Sample acceptance |
Approved fit, appearance and dimensional criteria before repeat production. |
These size references do not establish a pressure seal, electrical insulation rating, ingress-protection rating or cable strain-relief capacity. Confirm any such requirement for the complete assembly. Gas-service suitability requires application and compound review.

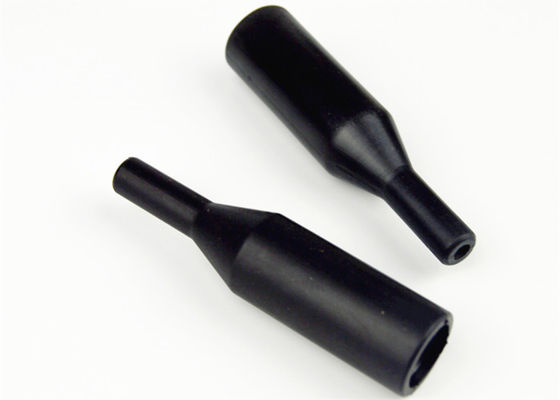

Features of the Shanghai Qinuo Oil Well Accessories 7/32" and 5/32" Wire Cable Shrouds:
This rubber shroud covers the specified cable or connector area to help reduce dirt accumulation.
Specify the NBR compound for this protection cover. Confirm the NBR grade and mating dimensions; PVC designs and HNBR alternatives need separate material review.
| Material of this rubber cable shrouds |
NBR (nitrile -butadiene rubber)
|
| Size |
7/32-inch and 5/32-inch reference sizes; opening, length and wall dimensions by drawing |
| Brand |
SHQN |
| Color |
Black |
| Custom service |
OEM/ODM |
Other relative rubber products:
Application: protective cover at the specified cable or connector. Review actual oil, gas or condensate exposure against the selected compound; pressure-sealing duty requires separate design confirmation.
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings. Our ISO 9001 quality management supports specification review and inspection. For cable shrouds, agree the mating dimensions, compound grade, installation route and inspection criteria with the order.
Mould corner view for the rubber parts:
Cable Shroud Sample and Order Confirmation
Provide the cable or connector drawing and confirm which feature the 7/32-inch or 5/32-inch reference describes. The finished shroud dimensions and fit must be agreed separately.
Review a sample for opening fit, cover length, wall thickness, assembly clearance and contact with adjacent components. Protect the rubber from sharp edges and follow the approved installation procedure.
Confirm quantity, colour, packing, inspection requirements and delivery with the quotation after the part specification is agreed.
Welcome to contact us for more information about the Cable Gland Protective Shrouds
