Custom 2-Inch Figure 1502 Weco / FMC-Type Plug Valve Elastomer Repair Set
Custom 2-Inch Plug Valve Sets: Agree the Component List Before Sample Approval
This enquiry covers elastomer replacement parts for a matching 2-inch Figure 1502 Weco / FMC-type plug valve. Customisation starts with the valve drawing and component list. Define the required seal profiles, O-rings and any metal-backed parts individually; nominal valve size is not the measured diameter of every seal.
| Custom-order item |
Specification to agree |
| Valve and revision |
Manufacturer, model, Figure reference, original part numbers and drawing revision. |
| Component schedule |
Quantity per set, dimensions and tolerance for each seal and O-ring. |
| Rubber and backing |
Compound grade, hardness with Shore scale, and brass or stainless backing only where specified. |
| Sample review |
Check profile, installation fit and agreed inspection criteria against the approved design. |
| Repeat supply |
Keep kit code and drawing revision on the packing list; confirm quantity and delivery with the quotation. |
Provide fluid composition, continuous and peak temperature and pressure cycle for material selection. Custom colour or dimensions do not establish service suitability. Sour-gas and rapid gas decompression requirements need compound-specific qualification. This parts set has no independent pressure rating; follow the complete valve documentation and repair procedure.
2-inch Figure 1502 repair set enquiries; Figure 602 and 3-inch variants require separate valve drawings
Oilfield Plug Valve Seals products data sheet
| Available sizes |
2-inch valve reference for this set; 1-inch and 3-inch versions by separate specification |
| Available material |
NBR, HNBR or FKM by component specification; brass or stainless backing only where required by the valve drawing |
| Hardness |
Specify the target hardness and Shore scale for each elastomer seal. Define metal backing material and any required metal hardness separately on its component drawing. |

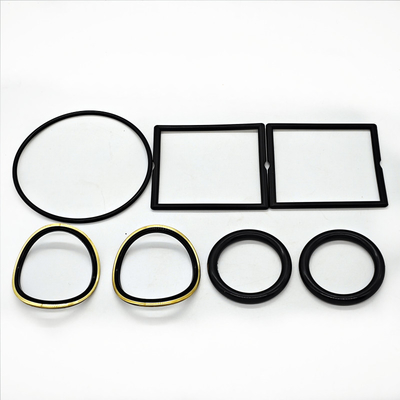

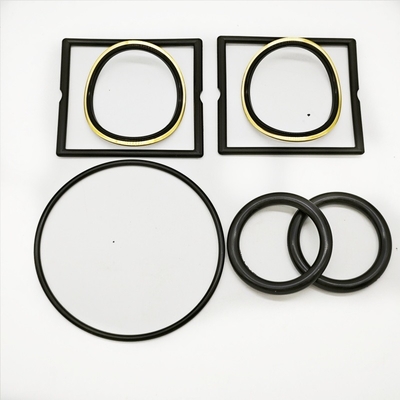

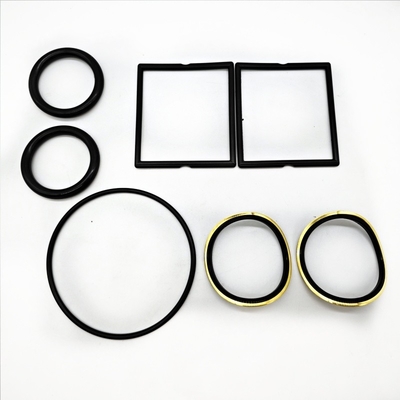

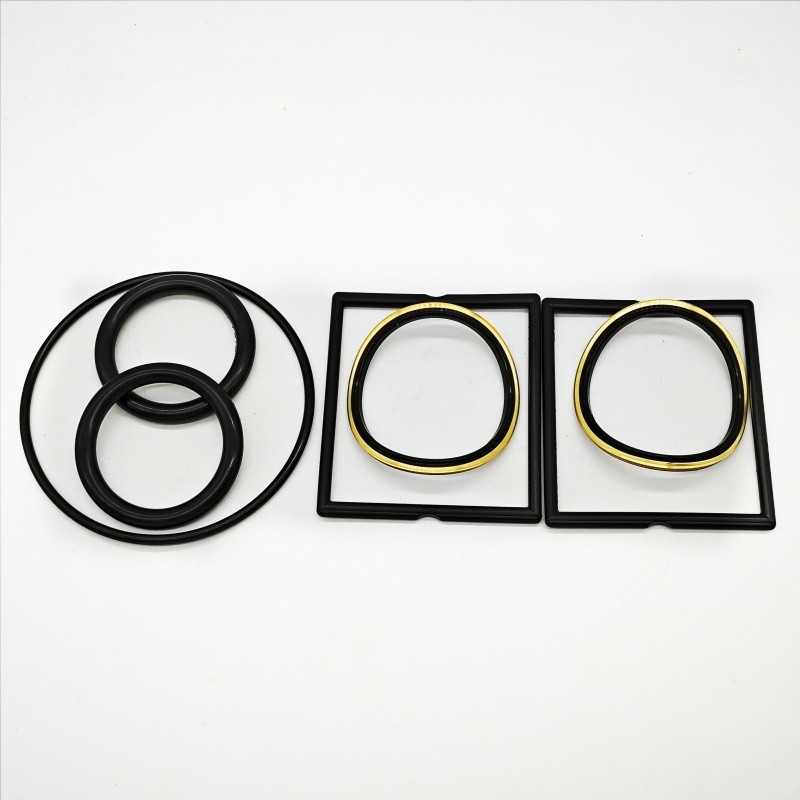

Plug valve repair component pictures for reference — confirm the supplied set against the drawing:
Other products from us:
Hammer union seals:
Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.
Available size : 1", 1.5'',2", 3", 4" and 5"
Related hammer union seal materials include NBR, HNBR, FKM and PTFE. Select the exact grade and backup construction for the mating union, fluid and temperature. HNBR alone does not establish sour-gas suitability; compound-specific qualification is required.
Related Hammer Union Seal References — Confirm Drawing and Availability:
| type |
Material |
| 1'' 1502 |
NBR/HNBR/FKM/PTFE |
|
1-1/2'' 1502
|
NBR/HNBR/FKM/PTFE |
| 2'' 602/1002/1502 |
NBR/HNBR/FKM/PTFE(brass/stainless back up) |
| 3'' 602/1002/1502 |
NBR/HNBR/FKM/PTFE(brass/stainless back up) |
| 4'' 602/1002/1502 |
NBR/HNBR/FKM/PTFE(brass/stainless back up) |
| 6'' 602/1002/1502 |
NBR/HNBR/FKM/PTFE(brass/stainless back up) |
| 7'' 602/1002/1502 |
NBR/HNBR/FKM/PTFE(brass/stainless back up) |
| 2'' FIG 206 |
NBR/HNBR/FKM/PTFE(AS568-228) |
| 3'' FIG 206 |
NBR/HNBR/FKM/PTFE(AS568-236) |
| 4'' FIG 206 |
NBR/HNBR/FKM/PTFE(AS568-346) |
Swab cups:
Related swab cups are ordered separately from this custom 2-inch Figure 1502 plug valve repair set. A swab cup seals against the tubing or casing bore during fluid recovery. Specify the cup profile, tubing inside diameter, mandrel bore, core arrangement and compound for the actual fluid exposure and permitted fluid-column load. Confirm cup and mandrel operating limits for the selected configuration.
MV Style, TA style and V styles.
Rubber o rings or kits
For related AS568 O-rings, specify the dash number, compound and hardness; confirm tooling and availability for the requested size.
Color, hardness, packing all can be custom making.
Other oil field rubber and plastic fittings:
Rubber packer elements
Thread protectors
Flow tubes
Other parts by drawing.
Shanghai Qinuo Industry Co. Ltd
Shanghai Qinuo Industry Co. Ltd supplies rubber, plastic and machined parts to agreed drawings and application requirements. Our ISO 9001 quality management supports specification review and inspection. For a plug valve repair set, send the valve reference, parts list, component dimensions and service conditions so the materials and fit can be confirmed.
