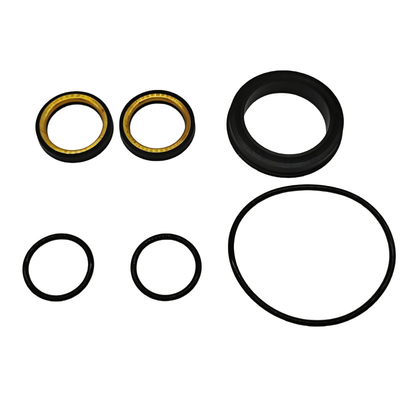

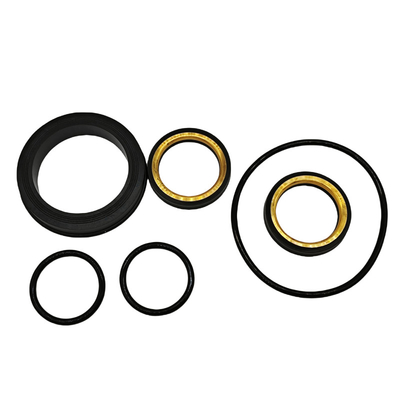

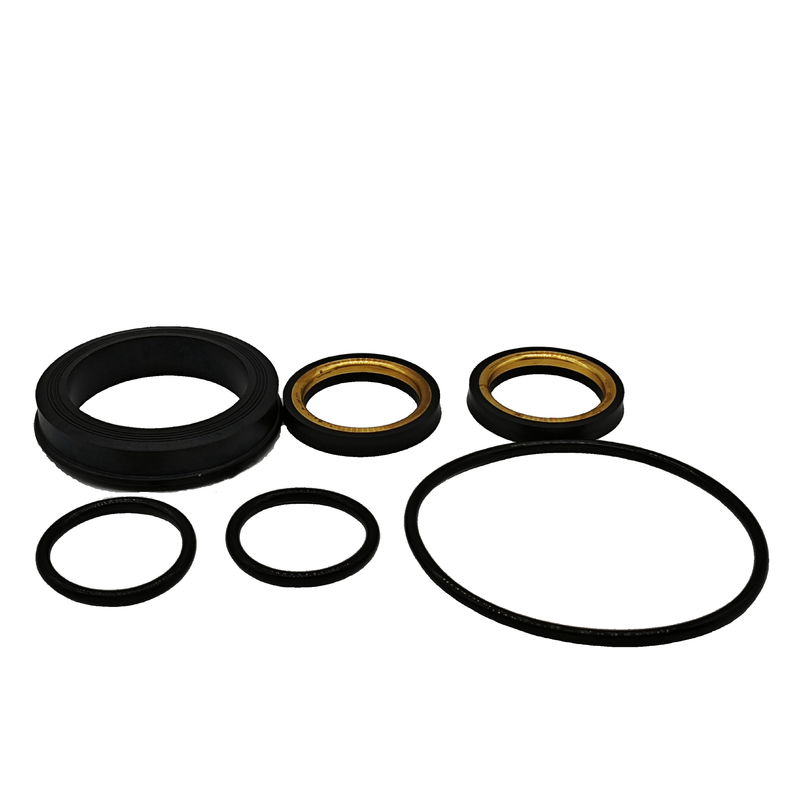

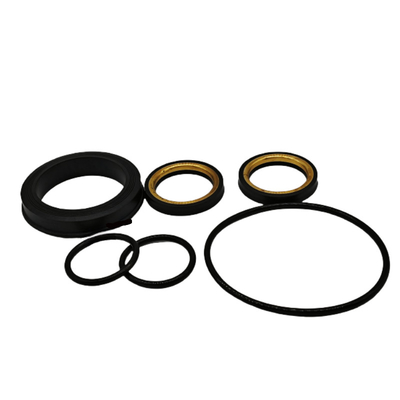

1 * 2 Inch Plug Valve Soft Repair Kit — FIG 602 / 1002 / 1502 Configuration Selection
Applications:
This 1 * 2 inch plug valve soft repair kit is selected for maintenance of a specific valve assembly. State the manufacturer, valve series and FIG 602, FIG 1002 or FIG 1502 designation when ordering. These configurations require separate component checks; the figure number alone does not establish interchangeability.
Compare the removed seals with the valve parts list and drawing before replacement. Confirm each seal profile, groove dimensions and required quantity. The 1 * 2 inch designation identifies the valve configuration and must not be used as the measured dimensions of every seal in the kit.
Oilfield maintenance: Specify fluid composition, normal and peak temperature, pressure cycles and valve operating conditions. Select the soft components together with the complete assembly requirements.
Fluid compatibility: PTFE component grade and any rubber seal compound must be agreed separately. Chemical resistance of one kit component does not establish compatibility of the complete kit with every corrosive fluid.
Other type kits
Support and Services:
 | |
1. Component materials: Identify which parts require PTFE and which require elastomer compounds. Specify PTFE grade or filler and rubber hardness separately on the component list.
2. Kit contents: Agree the seal list and quantities for the selected 1 * 2 inch valve. Seats, rings and other soft parts are included only as listed in the quotation; metal valve body parts require a separate request.
3. Installation: Follow the valve manufacturer’s maintenance procedure. Inspect grooves, mating surfaces and metal parts before fitting new seals, then perform the specified assembly checks.
4. Configuration matching: Send the valve nameplate, parts drawing and photographs of removed components. FIG 602, FIG 1002 and FIG 1502 requests are checked independently against the selected valve series.
5. Service requirements: Include operating fluid, cycling frequency and required inspection documents with the enquiry. Pressure capability is determined by the assembled valve and its approved components.
For a replacement quotation, provide the 1 * 2 inch valve configuration, manufacturer, figure designation, component list and quantity. Include dimensions for any individual seal ordered separately.
Packing
Shipment
FAQ
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Our ISO 9001 quality management system supports production and inspection. Agree component dimensions, material requirements and applicable inspection documents before manufacture.
Q3: Can I get some samples?
Samples can be discussed for the selected kit configuration. Confirm sample quantity, cost and shipping arrangements in the quotation.
Q4: Can you produce OEM products?
Custom components can be reviewed from dimensioned drawings or samples. Confirm tolerances, compound and kit contents before tooling or production.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
For stock items, confirm the exact valve configuration and available quantity before agreeing dispatch.
For made-to-order kits, confirm material, drawing approval and quantity; production lead time is stated in the quotation.
