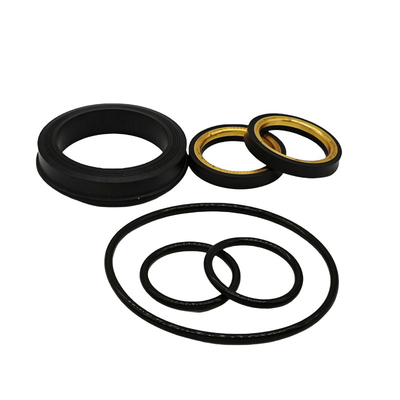

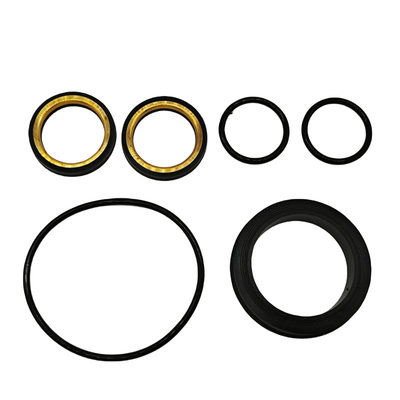

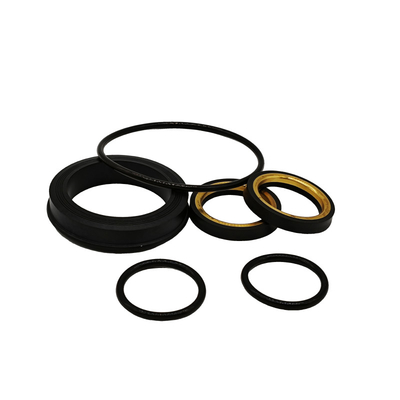

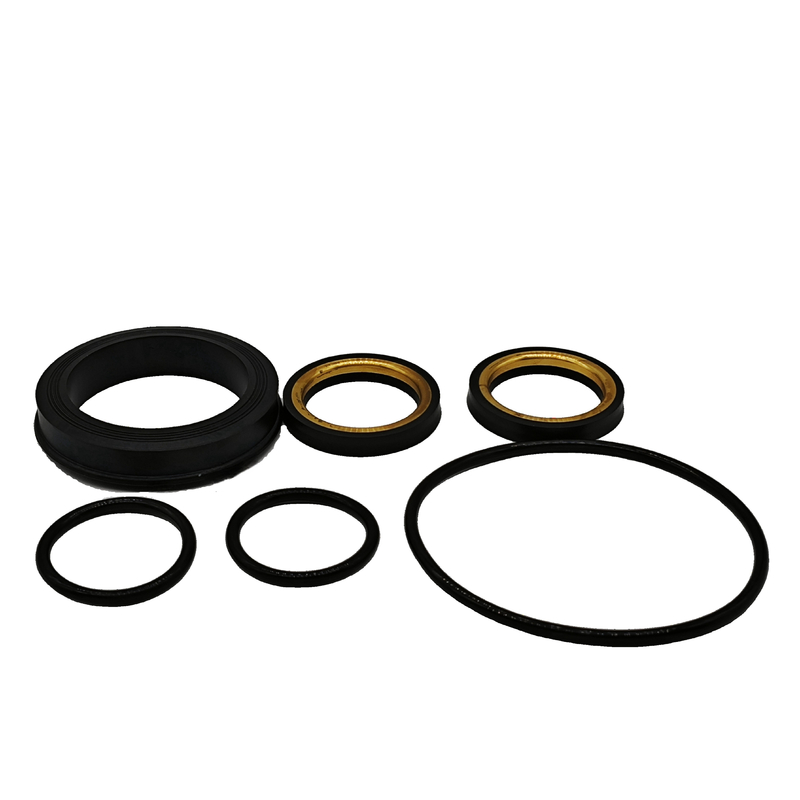

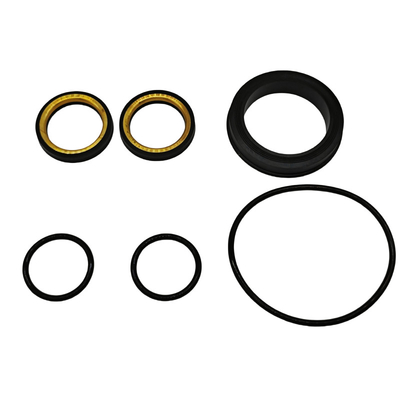

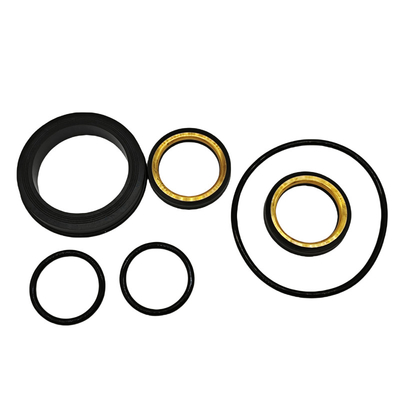

1 * 2 Inch FIG 1502 Plug Valve Soft Kit — Seal Replacement and Operating Torque Review
Applications:
This 1 * 2 inch FIG 1502 plug valve soft kit is selected for replacement of the identified valve’s soft components. Provide the manufacturer, valve series and parts list so the seal profiles and quantities can be matched to that assembly.
When a valve becomes difficult to operate or shows leakage, inspect both the soft seals and mating metal surfaces. Replacement seal selection should include groove dimensions, material condition and the manufacturer’s lubrication requirements. A soft kit alone does not establish a guaranteed operating torque.
Oilfield drilling maintenance: Include fluid formulation, solids exposure, pressure cycles and temperature when requesting this FIG 1502 kit. Identify whether the valve is used for isolation, repeated operation or another specified duty.
Material compatibility: Agree PTFE grade for the specified components and identify rubber compounds separately. Abrasion and chemical exposure requirements must be reviewed for each seal position.
Other type kits
Support and Services:
 | |
1. Component specification: Confirm the PTFE grade or filler, elastomer compound and dimensions for each listed part. Any wear-resistance requirement should include the operating conditions and agreed acceptance criteria.
2. Kit contents: Provide the replacement soft-part list for the 1 * 2 inch FIG 1502 valve. Identify seats, rings and other seals by position; metal parts are supplied only when separately specified.
3. Torque review: Follow the valve manufacturer’s assembly and lubrication procedure. If torque measurement is required, specify test pressure, temperature and measurement method before inspection.
4. Fit matching: Send the valve nameplate, component drawing and photographs of removed seals. Similar nominal size or figure designation does not replace a component-by-component fit check.
5. Maintenance checks: Inspect worn grooves and mating surfaces, remove contamination and confirm the applicable assembly checks. New soft parts should be installed using the manufacturer’s procedure.
For a quotation, send the 1 * 2 inch FIG 1502 valve identification, component list and quantity. Include leakage symptoms or torque concerns together with operating conditions and any requested inspection documents.
Packing
Shipment
FAQ
Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q2: How can we guarantee quality?
Our ISO 9001 quality management system supports production and inspection. Agree component dimensions, material requirements and any requested torque-related assembly checks with the order.
Q3: Can I get some samples?
Samples may be discussed for the matched component list. Confirm sample quantity, price and freight in the quotation.
Q4: Can you produce OEM products?
Custom replacement parts can be reviewed from drawings or samples. Confirm profiles, tolerances and compound requirements before tooling or production.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Confirm availability of the matched kit and quantity before agreeing stock dispatch.
Made-to-order lead time is confirmed after component drawings, compounds and order quantity are agreed.
Send us message
Tel: +86 21 38258692
Web: https://www.unionseal.com
Enquiry: Send valve identification, soft-part list, operating conditions and quantity.
