2-7/8 and 3-1/2 Inch TA Swab Cups with Steel or Aluminum Core

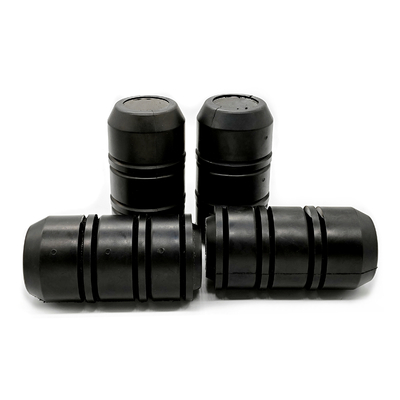

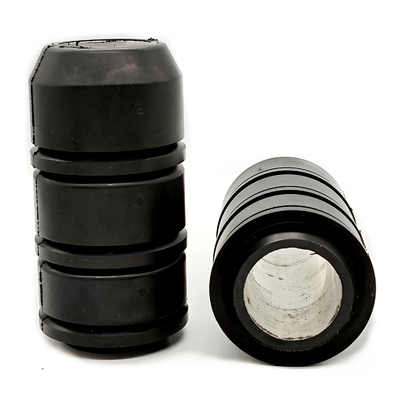

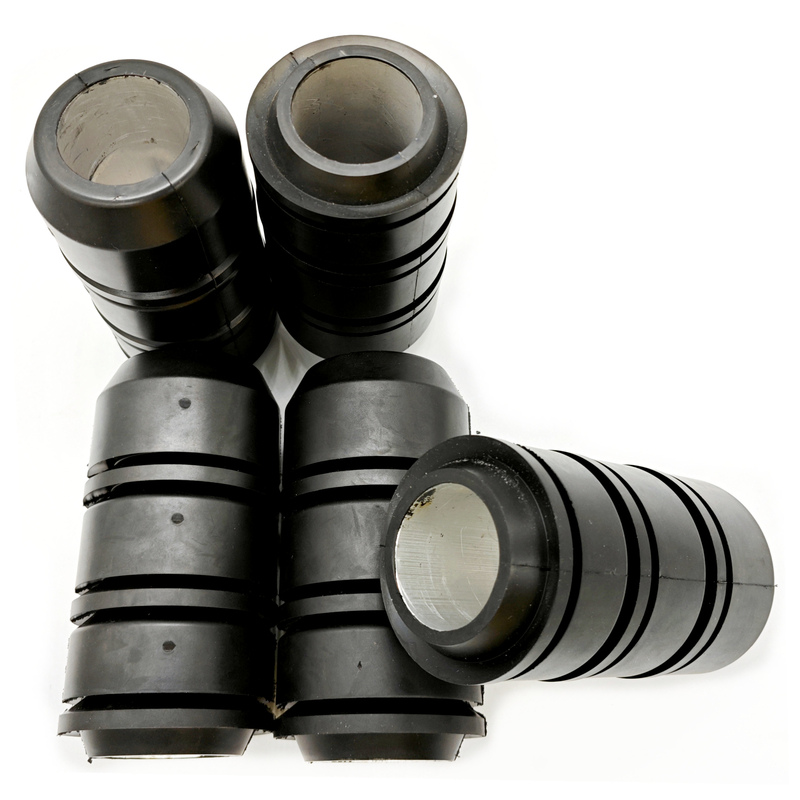

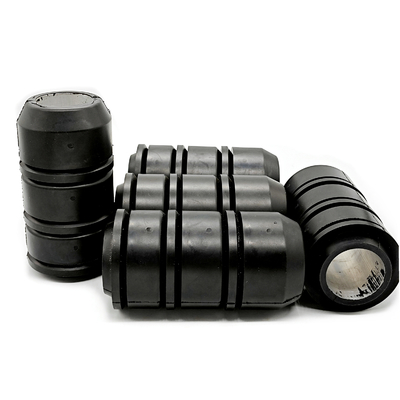

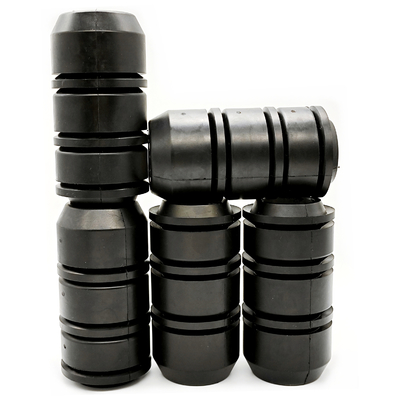

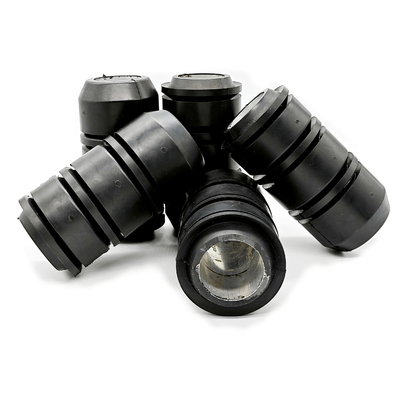

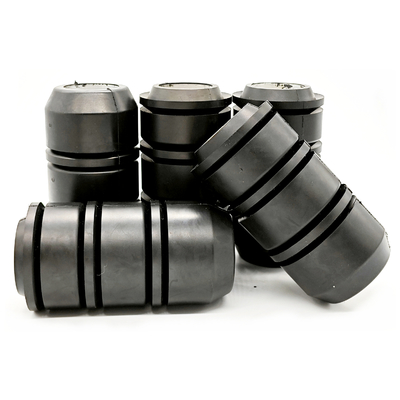

TA Style Rubber Swab Cup
TA style swab cups combine a rubber sealing body with a supporting steel or aluminum core. This listing references 2-7/8 and 3-1/2 inch sizes for medium-to-light load swabbing. Specify the core, mounting dimensions and rubber compound to match the swab assembly and operating conditions.
TA Swab Cup Core Selection and Rubber-to-Core Inspection
Specify steel or aluminum as a separate core requirement when ordering a TA replacement cup. Confirm the bore, height, seating surfaces and supporting arrangement against the mandrel drawing. The same nominal cup size does not establish that two core designs will fit the same assembly.
Inspect the rubber-to-core interface for visible separation, tearing or damage, and check the exposed core for distortion or corrosion before reuse. Follow the assembly manufacturer's rejection criteria; a cup with damaged support or bonding should be assessed before it returns to service.
For repeat orders, provide the approved drawing, core material and rubber compound specification together. State the actual tubing bore and operating fluid, temperature and load. The 4-1/2 and 5-1/2 inch sizes shown in the catalogue table are separate options requiring dimensional confirmation.
|
Material
|
Rubber+Metal or Aluminum Core; NBR; HNBR; FKM; etc
|
|
Size
|
2-7/8, 3-1/2, 4-1/2, 5-1/2, etc
|
|
Feature
|
Wear, heat and oil resistance depend on the specified compound and operating conditions
|
|
Color
|
Black or others
|
|
Other Service
|
Customized OEM products
|
Application of the swab cup:
1. TA style medium-to-light load swabbing; confirm assembly and load requirements
2. For suspended solids or frac fluids, confirm solids content and compound compatibility
3. Assess tubing bore, restrictions and surface condition before selecting the cup
Structure and sizes:
Packing and shipping:
Standard export packing, outer with carton. Carton in pallets if necessary.
1: Express: DHL,UPS, TNT, FedEx, EMS ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
The steps of the production:
Other relative rubber products for oil drilling use:
