| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | TA/RTL |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | 1~5usd/pcs |
| Packaging Details: | 40*40*40cm Carton Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 10000pcs per week |
| Size:: | 2 3/8, 2 7/8 And 3 1/2 Inch References; Confirm Listed Cup OD And ID | Material:: | Rubber +aluminum Or Steel Bushing |
|---|---|---|---|
| Environment:: | Swabbing Operations In Oilfields | Color: | Black Or Custom Color |
| Types:: | TA Cup; Confirm Exact Drawing And Bushing Material | Application Field: | Medium Light Load Swabbing |
| Cost-Effective: | Affordable And Cost-effective Solution | Custom: | Carton Packing+Pallet |
| Warranty: | Warranty Terms To Be Agreed With The Quotation | Pressure Rating: | Suitability To Be Confirmed For Specified Swabbing Equipment And Conditions |
| Resistance: | Select Compound For Specified Abrasion And Fluid Exposure | Package: | Carton + Plastic Bag |
| Highlight: | Aluminum Sleeve Swab Cups,Steel Sleeve Swab Cups,Guiberson TA Swab Cups |
||

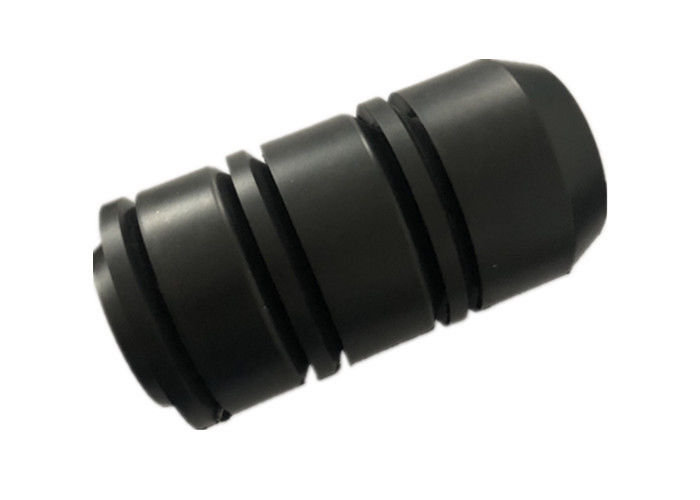

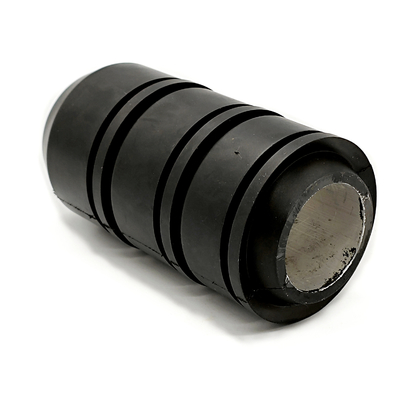

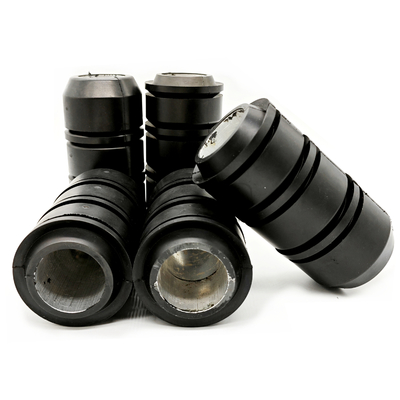

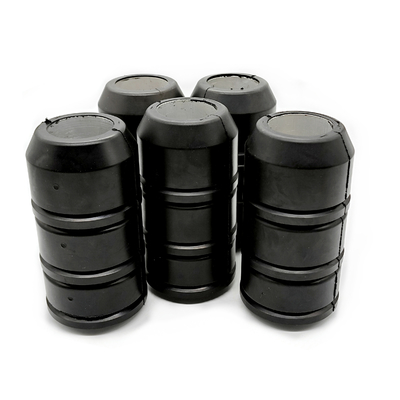

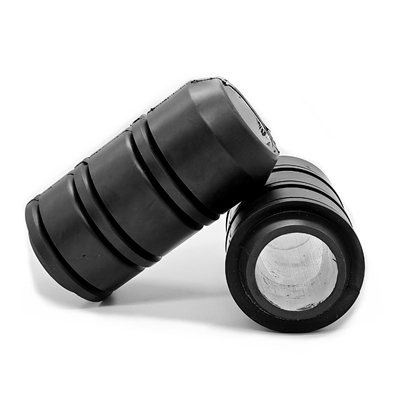

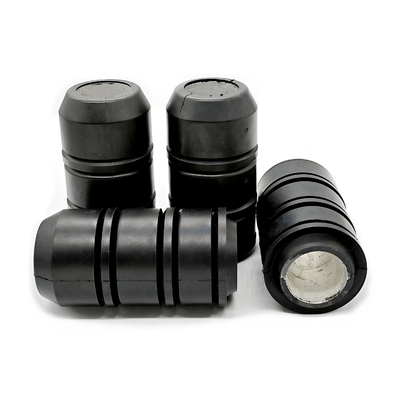

TA Swab Cups with Aluminum or Steel Bushings
Shanghai Qinuo offers TA swab cup enquiries in nitrile and other specified compounds. The cup has either an aluminum or steel bushing according to the selected TA cup drawing. Confirm cup outside diameter and core bore for the actual tubing and mandrel.
![]()
![]()
The existing table lists cup OD and ID in inches for aluminum and steel bushing options. Match the selected row to the actual cup drawing, mandrel bore and tubing clearance. Specify the required bushing material on the order.
Provide the fluid composition, temperature, intended load and required quantity. Agree rubber compound and hardness for the service. Confirm suitability against the complete swabbing equipment requirements.
| Nom. OD (inch) | Core and Description | Cup OD | Cup ID |
| 2-3/8" (2") | Aluminum Core Swab Cup | 1.992" | 1.120" |
| 2-3/8" (2") | Steel Core Swab Cup | 1.992" | 1.120" |
| 2-7/8" (2-1/2") | Aluminum Core Swab Cup | 2.431" | 1.370" |
| 2-7/8" (2-1/2") | Steel Core Swab Cup | 2.431" | 1.370" |
| 3-1/2" (3") | Aluminum Core Swab Cup | 2.985" | 1.370" |
| 3-1/2" (3") | Steel Core Swab Cup | 2.985" | 1.370" |
Select the TA cup compound and bushing configuration for the operating fluid, temperature and load. For frac-fluid exposure, provide the actual fluid composition for material review.
Available types of Swab cups:
TA style: TA is a medium-load cup profile with a steel or aluminum bushing. Confirm the cup dimensions, bore and rubber compound for the specified equipment and service conditions.
![]()
![]()
V style: An all-rubber cup profile for model-specific swabbing enquiries. Confirm light- or heavy-duty configuration, cup dimensions and the number of cups with the swabbing equipment requirements.For frac-fluid service, agree the compound specification and relevant abrasion, tensile and fluid-compatibility requirements with the quotation. Performance depends on the selected formulation and service conditions.
| Part Name | MV Style, TA style, TUF style, NUF style and V style |
|
Environment |
oil, gas, gas condensate |
|
Available Material |
Nitrile, HNBR or FKM by enquiry; bushing construction according to the selected cup drawing |
