Custom Durable Wear Resistant MV Style Oilfield Rubber Swab Cups

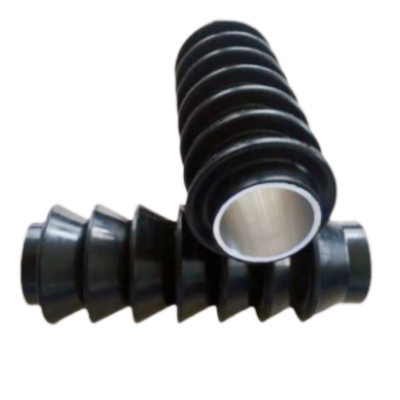

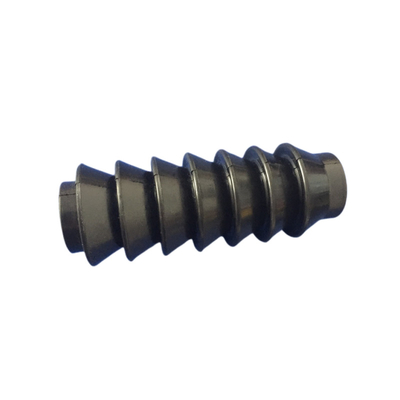

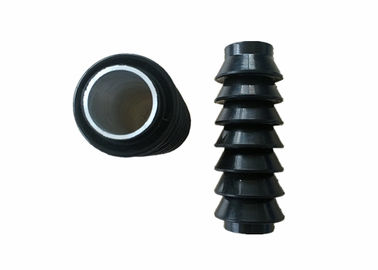

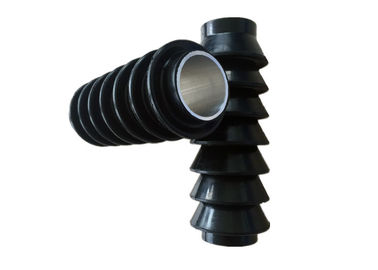

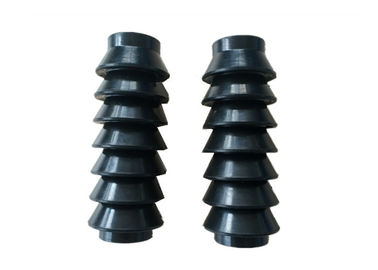

MV style swab cup: The MV profile uses multiple upturned rubber lips around a steel or aluminum bushing. Match the lip profile, outer diameter, bore and height to the original mandrel and tubing internal diameter. Specify the bushing material on the drawing; a shared nominal size does not establish interchangeability.

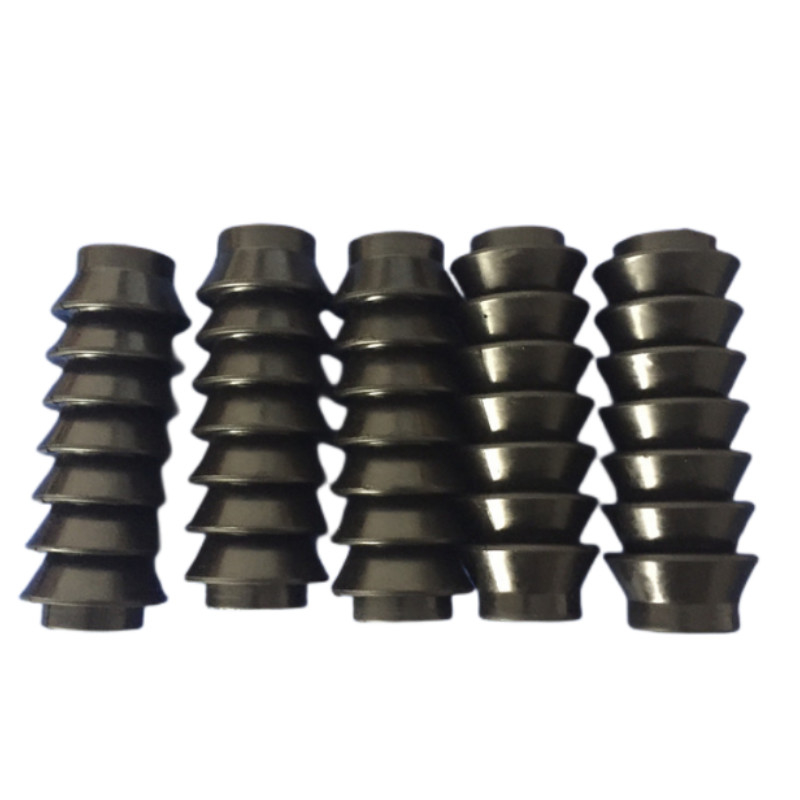

Other range references: TA and V are separate cup profiles. Confirm their actual dimensions and load requirements rather than applying MV geometry to them. The other types and images below are range references, not the specification of one universal cup.
For frac-fluid duty, provide the exact fluid composition, additives, solids content and temperature for compound selection. Abrasion and chemical compatibility require compound-specific data.
TUF style: A separate reinforced profile in the existing range. Confirm the reinforcement, tubing fit and complete tool load requirements against its own drawing.
NUF style: A separate range reference requiring its own cup and bushing specification. Confirm the supplied configuration and qualified load before ordering; MV dimensions do not establish NUF fit.
MV Swab Cup Orders: Lip Profile, Bushing and Tubing Fit
Identify the actual cup OD, bushing bore and height separately from the nominal 2-3/8, 2-7/8 or 3-1/2 inch tubing references. Include tubing weight or measured ID, mandrel seating details and the number of cups in the assembly.
For sandy fluids, specify solids content and line travel conditions with the compound request. Inspect lip wear and bushing condition during replacement. Operating loads and replacement intervals follow the complete tool instructions rather than a generic cup pressure rating.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
| Environment |
oil, gas, gas condensate |
| Available Material |
Confirm supplied NBR, HNBR or FKM compound and the specified bushing material against the approved drawing
|
MV cup selection depends on the actual tubing internal diameter, mandrel configuration, fluid load and operating conditions.
Shanghai Qinuo supplies MV profile replacement cups to confirmed requirements. Provide the original cup reference or dimensioned sample with compound and inspection requirements. Specify the original tool reference, cup dimensions and mandrel seating arrangement so the replacement profile can be matched to the assembly.
Other relative rubber products:
Application conditions: specify the oil or condensate composition and any gas exposure, temperature and decompression requirements for compound selection.
